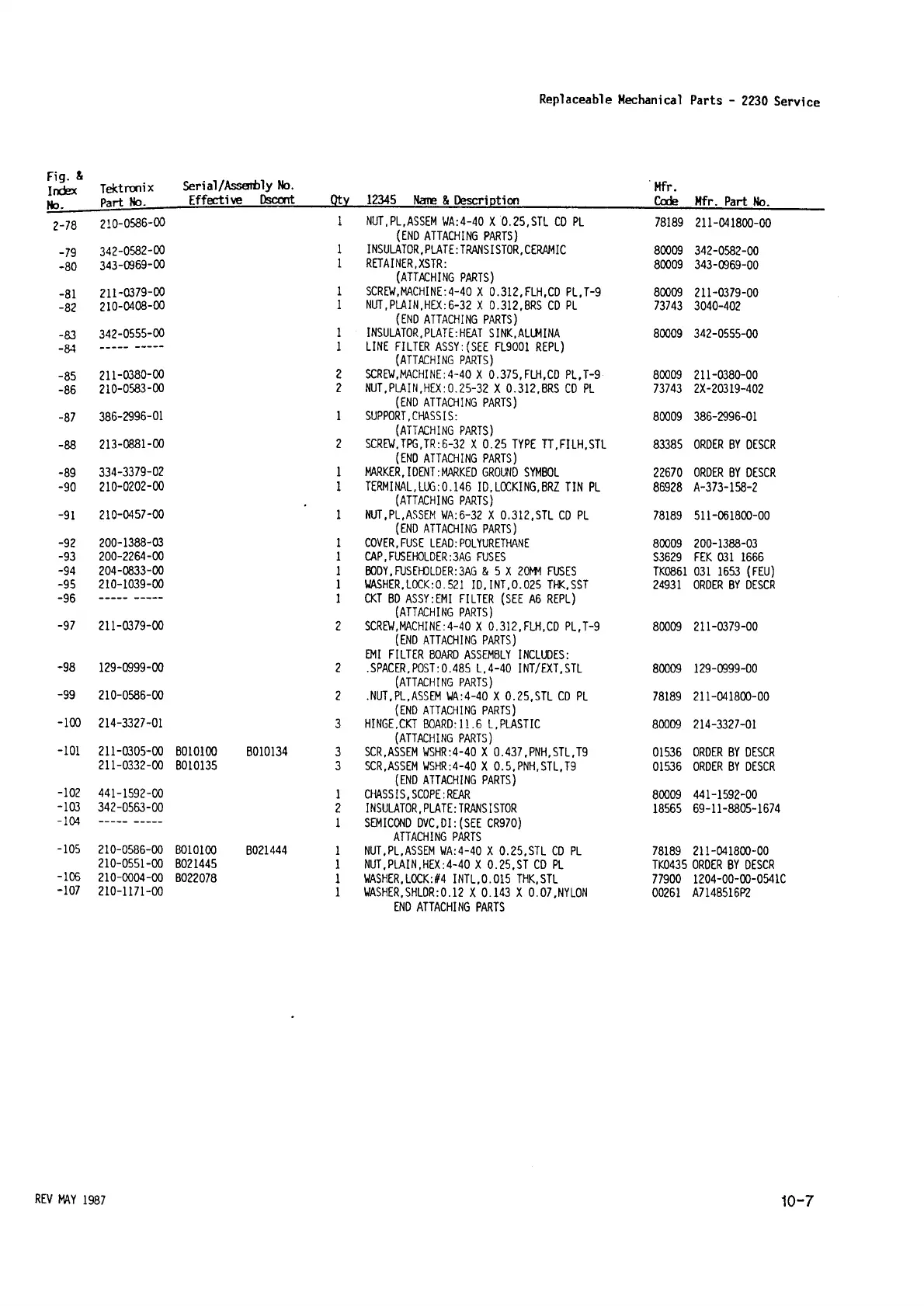

Replaceable Mechanical Parts - 2230 Service
F ig . &
Index
No.
T e k tro n ix
P a rt No.
S e ria l/A s s e n ily No.
E ffe c tiv e Dscorrt
Q tv
12345 Name & D e s c rip tio n
M fr.
Code
M fr. P a rt No.
2-78
210-0586-00
1
NUT, PL,ASSEM WA:4-40 X 0.25.S TL CD PL
78189
211-041800-00
(END ATTACHING PARTS)
-79
342-0582-00
1
INSULAT0R. PLATE:TRANS ISTOR, CERAMIC
80009
342-0582-00
-80
343-0969-00
1
RETAINER,XSTR:
80009
343-0969-00
(ATTACHING PARTS)
-81
211-0379-00
1
SCREW,MACHINE:4-40 X 0.312,FLH,CD PL.T-9
80009
211-0379-00
-82
210-0408-00
1
NUT,PLAIN,HEX:6-32 X 0.312.BRS CD PL
73743
3040-402
(END ATTACHING PARTS)
-83
342-0555-00
1 INSULATOR.PLATE:HEAT SINK,ALUMINA
80009
342-0555-00
-84
1 LINE FILTER ASSY:(SEE FL9001 REPL)
(ATTACHING PARTS)
-85
211-0380-00 2
SCREW,MACHINE:4-40 X 0 .3 7 5 ,FLH,CD P L.T-9
80009 211-0380-00
-86
210-0583-00 2
NUT,PLAIN,HEX:0.25-32 X 0.312.BRS CD PL 73743
2X-20319-402
(END ATTACHING PARTS)
-87
386-2996-01 1
SUPPORT,CHASSIS:
80009 386-2996-01
(ATTACHING PARTS)
-88
213-0881-00
2
SCREW.TPG.TR:6-32 X 0 .25 TYPE TT.FILH .STL
83385 ORDER BY DESCR
(END ATTACHING PARTS)
-89
334-3379-02
1
MARKER,IDENT:MARKED GROUND SYMBOL
22670 ORDER BY DESCR
-90
210-0202-00
1
TERMINAL,LUG:0.146 ID,LOCKING,BRZ TIN PL
86928 A-373-158-2
(ATTACHING PARTS)
-91
210-0457-00
1
NUT,PL,ASSEM WA:6-32 X 0 .3 1 2,STL CD PL
78189 511-061800-00
(END ATTACHING PARTS)
-92
200-1388-03
1
COVER,FUSE LEAD:POLYURETHANE
80009 200-1388-03
-93
200-2264-00
1
CAP,FUSEHOLDER:3AG FUSES
S3629 FEK 031 1666
-94
204-0833-00
1 BODY, FUSEHOLDER: 3AG & 5 X 20W FUSES
TK0861 031 1653 (FEU)
-95
210-1039-00
1 WASHER.LOCK:0.521 ID ,IN T ,0 .025 THK.SST
24931 ORDER BY DESCR
-96 1 CKT BD ASSY:EMI FILTER (SEE A6 REPL)
(ATTACHING PARTS)
-97
211-0379-00
2
SCREW,MACHINE:4-40 X 0 .3 1 2 ,FLH,CD PL.T-9 80009 211-0379-00
(END ATTACHING PARTS)
EMI FILTER BOARD ASSEM8LY INCLUDES:
-98
129-0999-00
2
.SPACER,P0ST:0.485 L.4 -4 0 INT/EXT.STL
80009 129-0999-00
(ATTACHING PARTS)
-99
210-0586-00
2
.NUT,PL,ASSEM WA:4-40 X 0 .2 5 ,STL CD PL
78189 211-041800-00
(END ATTACHING PARTS)
-100
214-3327-01
3 HINGE.CKT BOARD:11.6 L,PLASTIC
80009 214-3327-01
(ATTACHING PARTS)
-101
211-0305-00
B010100 B010134
3 SCR,ASSEM WSHR:4-40 X 0.437,PNH,STL,T9
01536 ORDER BY DESCR
211-0332-00
B010135
3
SCR,ASSEM WSHR:4-40 X 0.5.PNH,STL,T9
01536 ORDER BY DESCR
(END ATTACHING PARTS)
-102
441-1592-00
1
CHASSIS, SCOPE: REAR 80009 441-1592-00
-103
342-0563-00
2 INSULATOR, PLATE: TRANSISTOR
18565 69-11-8805-1674
-104
1 SEMICOND DVC.DI: (SEE CR970)
ATTACHING PARTS
-105
210-0586-00
B010100 B021444
1
NUT,PL.ASSEM WA:4-40 X 0 .2 5 ,STL CD PL 78189 211-041800-00
210-0551-00
B021445
1 NUT,PLAIN,HEX:4-40 X 0 .2 5 ,ST CD PL
TKQ435
ORDER BY DESCR
-106
210-0004-00
B022078
1 WASHER.LOCK:#4 INT L,0.015 THK.STL 77900 1204-00-00-0541C
-107
210-1171-00
1
WASHER.SHLDR:0.12 X 0.143 X 0 .0 7 ,NYLON
00261 A7148516P2
END ATTACHING PARTS
