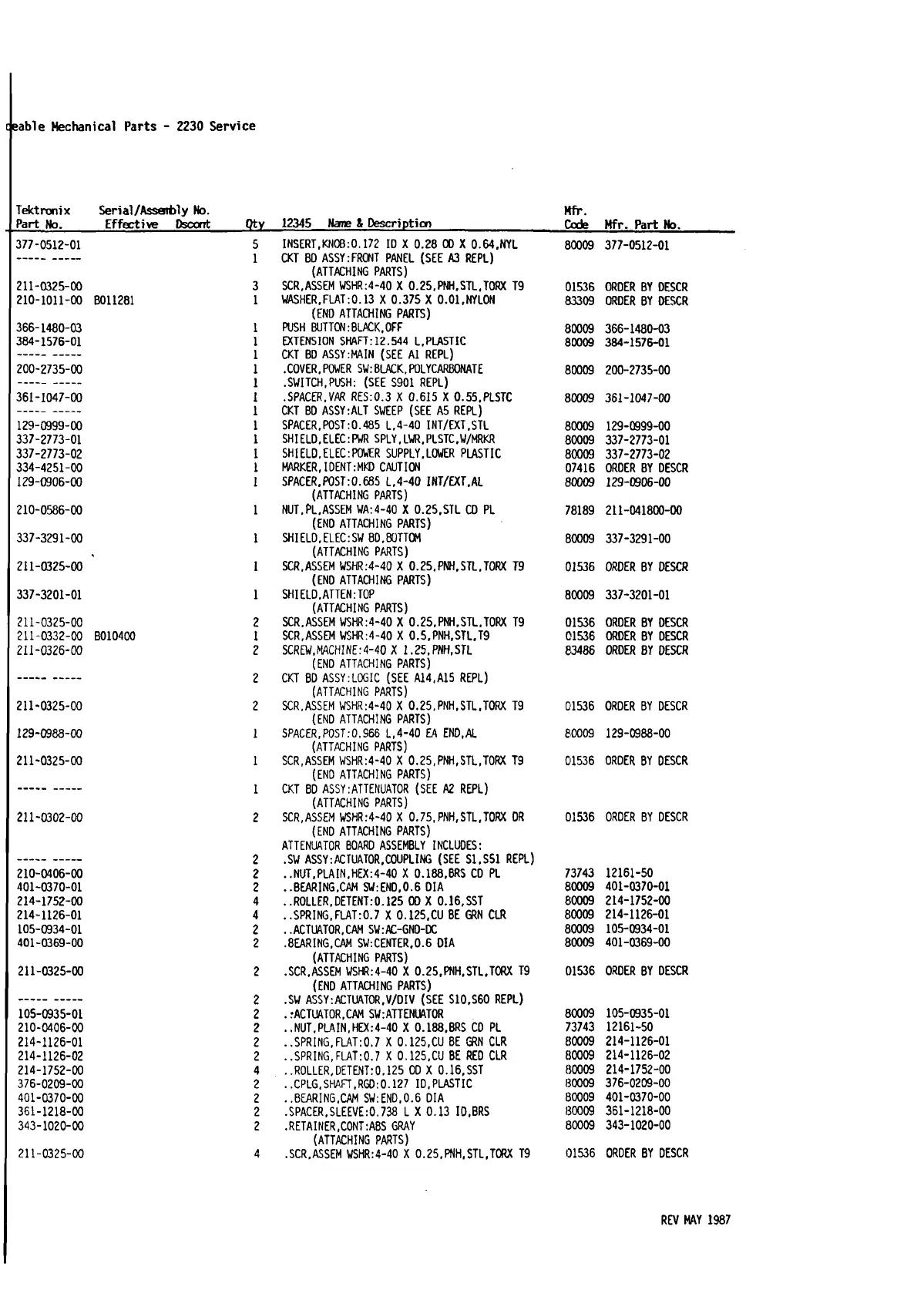

ccable Mechanical Parts - 2230 Service
T e k tro n ix S e ria l/A s s e n tily No.
M fr.
P a rt No. E ff e c tiv e Dscont
Q ty
12345 Name & D es c rip tio n
Code M fr. P a rt No.
377-0512-01
5
INSERT,KN08:0.172 ID X 0.2 8 00 X 0.64.NYL
80009 377-0512-01
1
CKT BD ASSY:FRONT PANEL (SEE A3 REPL)
(ATTACHING PARTS)
211-0325-00
3
SCR,ASSEM WSHR:4-40 X 0.25,PNH,STL,T0RX T9
01536 ORDER BY DESCR
210-1011-00 B011281
1
WASHER,FLAT:0.13 X 0 .37 5 X 0 .0 1 ,NYLON
83309 ORDER BY DESCR
(EN0 ATTACHING PARTS)
366-1480-03
1
PUSH BUTTON:BLACK.OFF
80009 366-1480-03
384-1576-01
1
EXTENSION SHAFT:12.544 L,PLASTIC
80009
384-1576-01
1
CKT BD ASSY:MAIN (SEE A1 REPL)
200-2735-00
1 .COVER,POWER SW:BLACK.POLYCARBONATE
80009 200-2735-00
1
.SWITCH,PUSH: (SEE S901 REPL)
361-1047-00
1
.SPACER,VAR RES:0 .3 X 0.615 X 0.55.PLSTC
80009 361-1047-00
1
CKT BD ASSY:ALT SWEEP (SEE A5 REPL)
129-0999-00
1
SPACER,POST:0.485 L.4 -4 0 INT/EXT.STL
80009 129-0999-00
337-2773-01
1
SHIELD.ELEC: PWR SPLY, LWR,PLSTC.W/MRKR
80009
337-2773-01
337-2773-02 1
SHIELD.ELEC:POWER SUPPLY.LOWER PLASTIC
80009
337-2773-02
334-42 51-00
1
MARKER,IDENT:MKD CAUTION
07416 ORDER BY DESCR
129-0906-00
1
SPACER,P0ST:0.685 L .4 -4 0 INT/EXT.AL
80009 129-0906-00
(ATTACHING PARTS)
210-0586-00
1
NUT.PL.ASSEM WA:4-40 X 0 .2 5 ,STL CD PL
78189 211-041800-00
(END ATTACHING PARTS)
337-3291-00 1
SHIELD,ELEC:SW 8 0 ,BOTTOM
80009
337-3291-00
(ATTACHING PARTS)
211-0325-00 1
SCR.ASSEM WSHR:4-40 X 0.25.PNH,$TL,T0RX T9
01536
ORDER BY DESCR
(END ATTACHING PARTS)
337-3201-01 1
SHIELD.ATTEN:T0P
80009 337-3201-01
(ATTACHING PARTS)
211-0325-00 2
SCR.ASSEM WSHR:4-40 X 0 .2 5 ,PNH.STL.TORX T9
01536
ORDER BY DESCR
211-03 32 -00 B010400 1
SCR.ASSEM WSHR:4-40 X 0.5.PNH,STL.T9
01536
ORDER BY DESCR
211-0326-00 2
SCREW,MACHINE:4-40 X 1 .2 5 ,PNH,STL
83486 ORDER BY DESCR
(END ATTACHING PARTS)
2
CKT BD ASSY:LOGIC (SEE A14.A15 REPL)
(ATTACHING PARTS)
211-0325-00 2
SCR.ASSEM WSHR:4-40 X 0 .2 5 ,PNH,STL.TORX T9
01536 ORDER BY DESCR
(END ATTACHING PARTS)
129-0988-00 1 SPACER,POST.-0.966 L.4-4 0 EA END.AL
80009
129-0988-00
(ATTACHING PARTS)
211-0325-00 1 SCR.ASSEM WSHR:4-40 X 0 .2 5 ,PNH,STL,TORX T9 01536 ORDER BY DESCR
(END ATTACHING PARTS)
1
CKT BD ASSY:ATTENUATOR (SEE A2 REPL)
(ATTACHING PARTS)
211-0302-00 2
SCR.ASSEM WSHR:4-40 X 0 .7 5 ,PNH,STL,TORX DR 01536 ORDER BY DESCR
(END ATTACHING PARTS)
ATTENUATOR BOARD ASSEMBLY INCLUDES:
2
.SW ASSY:ACTUAT0R,COUPLING (SEE S1.S51 REPL)
210-04 06 -00
2
..NUT,PLAIN.HEX:4-40 X 0 .1 88 ,BRS CD PL
73743 12161-50
401-0370-01
2
..BEARING.CAM SW:END.0.6 DIA
80009 401-0370-01
214-1752-00 4 ..ROLLER,DETENT:0.125 OD X 0.16.SST
80009
214-1752-00
214-1126-01 4 . . SPRING,FLAT:0.7 X 0.125.CU BE GRN CLR
80009 214-1126-01
105-0934-01
2
..ACTUATOR,CAM SW:AC-GNO-DC
80009 105-0934-01
401-0369-00
2
.8EARING.CAM SW:CENTER,0.6 DIA
80009 401-0369-00
(ATTACHING PARTS)
211-0325-00 2
.SCR.ASSEM WSHR:4-40 X 0.25,PNH,STL,T0RX T9
01536 ORDER BY DESCR
(END ATTACHING PARTS)
2
.SW ASSY:ACTUATOR.V/DIV (SEE S10.S60 REPL)
105-0935-01 2
. rACTUATOR,CAM SW:ATTENUAT0R
80009 105-0935-01
210-0406-00 2
..NUT,PLAIN,HEX:4-40 X 0.188.BRS CO PL
73743 12161-50
214-1126-01 2
. . SPRING,FLAT:0.7 X 0.125.CU BE GRN CLR
80009
214-1126-01
214-1126-02 2
. . SPRING,FLAT:0.7 X 0.125.CU BE RED CLR
80009
214-1126-02
214-1752-00
4 . . ROLLER,DETENT:0.125 OD X 0.16.SST
80009
214-1752-00
376-0209-00
2
. . CPLG,SHAFT,RGO:0.127 ID,PLASTIC
80009
376-0209-00
401-0370-00 2 ..BEARING,CAM SW:END,0.6 DIA
80009 401-0370-00
361-1218-00
2
.SPACER,SLEEVE:0.738 L X 0.1 3 ID,BRS
80009
361-1218-00
343-1020-00 2
.RETAINER,CONT:ABS GRAY
80009 343-1020-00
(ATTACHING PARTS)
211-0325-00
4
.SCR.ASSEM WSHR:4-40 X 0 .2 5 ,PNH,STL,TORX T9
01536
ORDER BY DESCR
REV MAY 1987
