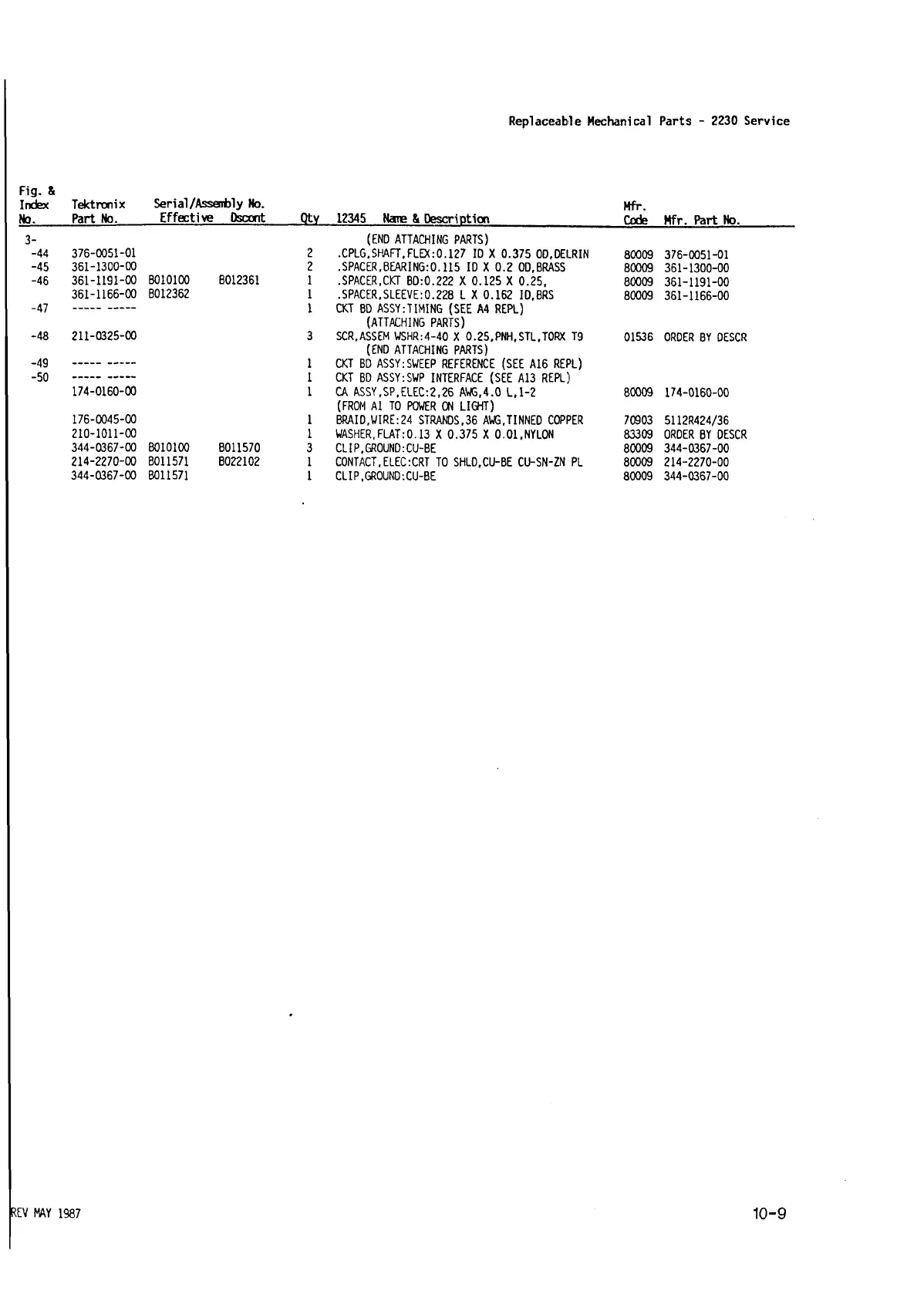

Replaceable Mechanical Parts - 2230 Service
Fig.
&
Index
No.
Tektronix
Part No.
Serial/Assenbly No.
Effective Dscont
Q ty
12345 Name
&
Description
Mfr.
Code Mfr. Part No.
3 -
(END ATTACHING PARTS)
-44
376-0051-01
2
•CPLG.SHAFT.FLEX:0.127 10 X 0.375 0D.DEI.RIN
80009
376-0051-01
-45
361-1300-00
2
.SPACER,BEARING:0.115 ID X 0 .2 00.BRASS
80009 361-1300-00
-46
361-1191-00 B010100 B012361
1
.SPACER,CICT BD:0.222 X 0.125 X 0 .2 5 ,
80009
361-1191-00
361-1166-00 8012362
1
.SPACER,SLEEVE:0.228 L X 0.162 IO.BRS
80009
361-1166-00
-47
1
CKT BO ASSY:TIMING (SEE A4 REPL)
(ATTACHING PARTS)
-48
211-0325-00
3
SCR,ASSEM WSHR:4-40 X 0.25,PNH,STL,T0RX T9
01536
ORDER BY DESCR
(END ATTACHING PARTS)
-49
1
CKT BD ASSY:SWEEP REFERENCE (SEE A16 REPL)
-50
1
CKT BD ASSY: SWP INTERFACE (SEE A13 REPL)
174-0160-00
1
CA ASSY,SP,ELEC:2 ,26 AWG.4.0 L ,l- 2 80009
174-0160-00
(FROM A i TO POWER ON LIGHT)
176-0045-00
1
BRAID,WIRE:24 STRANDS.36 AWG,TINNED COPPER 70903 5112R424/36
210
-1011-00
1
WASHER,FLAT:0.13 X 0.37 5 X 0 .0 1 ,NYLON 83309 ORDER BY DESCR
344-0367-00
8010100
B011570 3
CL IP,GROUND:CU-BE
80009 344-0367-00
214-2270-00
B011571
B022102
1
CONTACT,ELEC:CRT TO SHLO.CU-BE CU-SN-ZN PL 80009 214-2270-00
344-0367-00
B011571
1
CLIP,GROUND: CU-BE 80009 344-0367-00
