Application Exa
mples
Taking Cursor Measure ments
You can use the cursors to take quick measurements on a waveform. To measure the ring frequency at the rising edge
of the signal:
1. Push channel 1 to select the channel
1 signal.
2. Push and hol
d Cursors to turn on cursors
and display the Cursor menu.
3. Push Linked to set L inked to Off.
4. Push Bring Cursors On Screen.
5. Push Cursor Units.
Cursors
Waveform
Screen
Source
Auto
Bars
Horizontal
Vertical
Linked
On|
Off
Bring
Cursors
On Screen
Cursor
Units
6. Push Vertical Bar Units on the side menu,
if this choice is not already selected. Turn
multip
urpose knob a to select Hz (1/s) as
the unit of measurement.
7. Push Menu Off to assign cursor control to
the m
ultipurpose knobs.

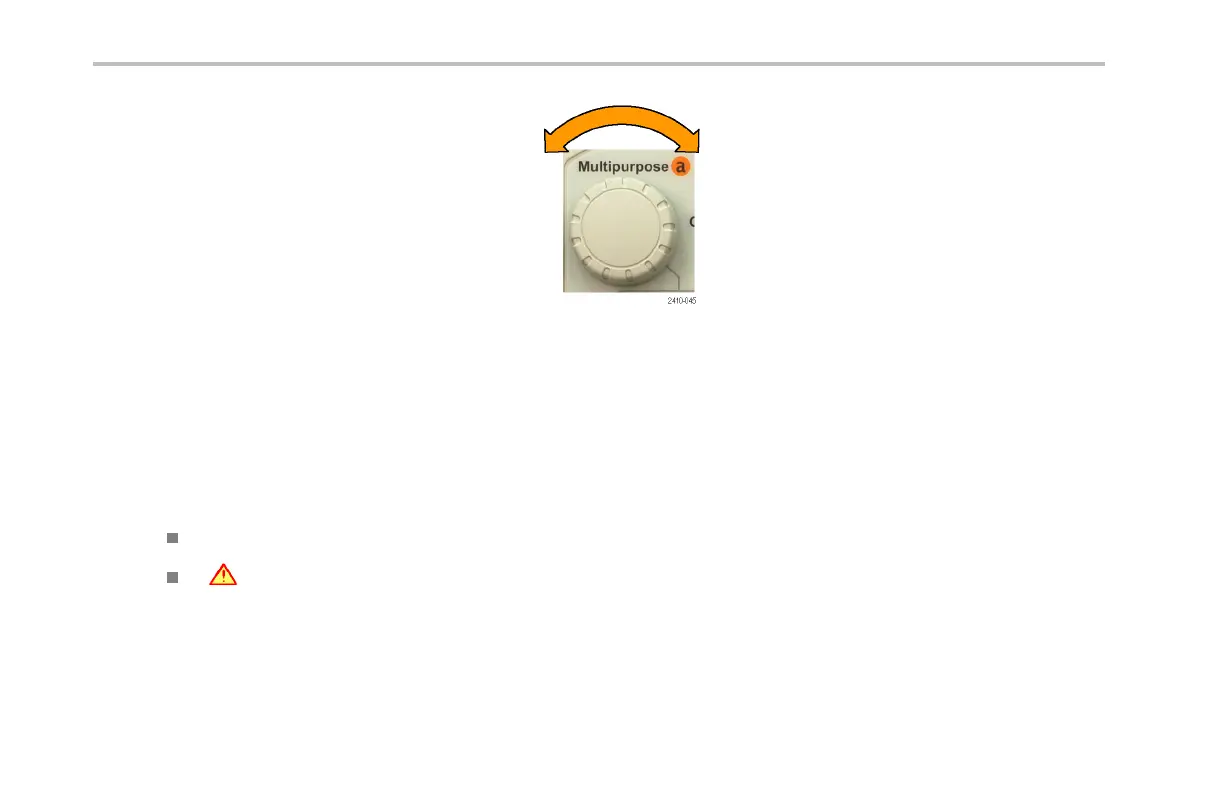

8. Place one cursor on the first peak of the ring
using multipurpose knob a.
150 MSO3000 and DP O3000 Series Oscilloscopes User Manual
