Installation

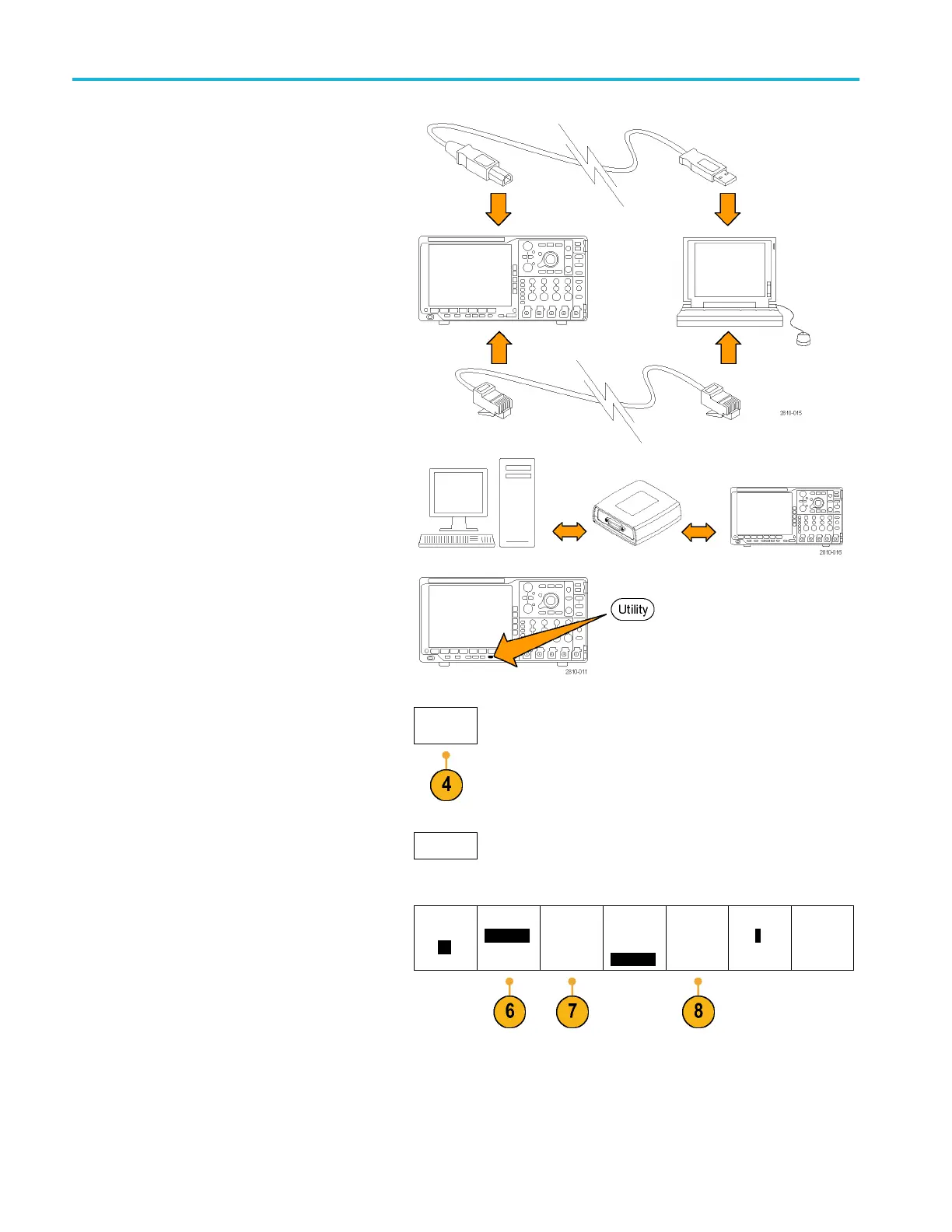

2. Connect the oscilloscope to your computer
with the appropriate USB or Ethernet cable.
To communicate between the oscilloscope
and a GPIB system, connect the oscilloscope
to the TEK-USB-488 GPIB-to-USB Adapter
with a USB cable. Then connect the adapter
to your GPIB system with a GPIB cable.
Cycle the power on the oscilloscope.
3. Push Utility.
4. Push Utility P age.
Utility
Page
5. Turn multipurpose k nob a and select I/O.
I/O
6. If you are using USB, the system sets itself
up automatically for you, if USB is enabled.
Utility
Page
I/O
USB
Computer
Ethernet &
LXI
Network
Configura-
tion
Automatic
Socket
Server
GPIB
1
Check USB on the lower menu to be sure
that USB is enabled. If it is not enabled, push
USB. Then push Connect to Co mp uter on
the side menu.
26 MSO4000B and DPO 4000B Series Oscilloscopes User Manual
