Mask testing setups Set up mask te st completion notification
Set up mask test completion notification
From the Mask menu, select Pass/Fail Setup.
Overview

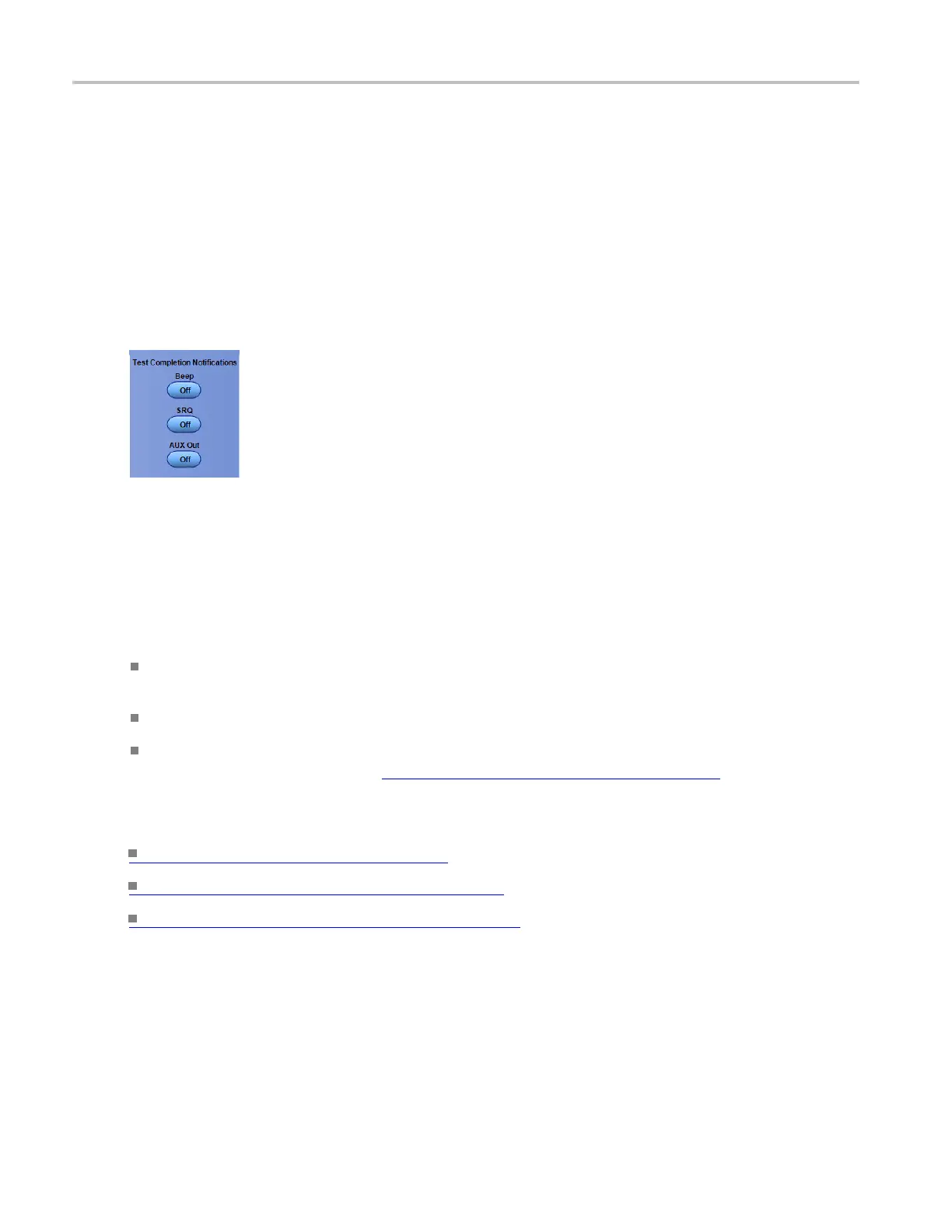

Use the Test Completion Notification controls to beep, execute a command, or send a n external trigger
when a wavef
orm passes a mask test.
To use
Click a button to switch a control on or off.
Behavior
Beep. When Beep is turned on, the instrument beeps when the test is completed. Beep is not available
on MSO/DPO5000 Series instruments.
SRQ. When SRQ is turned on, the instrument sends a GPIB SRQ command when a test is completed.
AUX Out. When AUX Out is turned on, the instrument sends a trigger to the Auxiliary Out connector
when the test is completed. See External Signals Control Window
(see page 546) for additional
details on this feature.
What do you want to do next?
Learn about mask polarity. (see page 227)
Learn about waveform parameters. (see page 224)
Go to the Test Setup control window. (see page 221)
Set mask test parameters
From the Mask menu, select Pass/Fail Setup.
224 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
