Math setups Time domain gating

Time domain gating

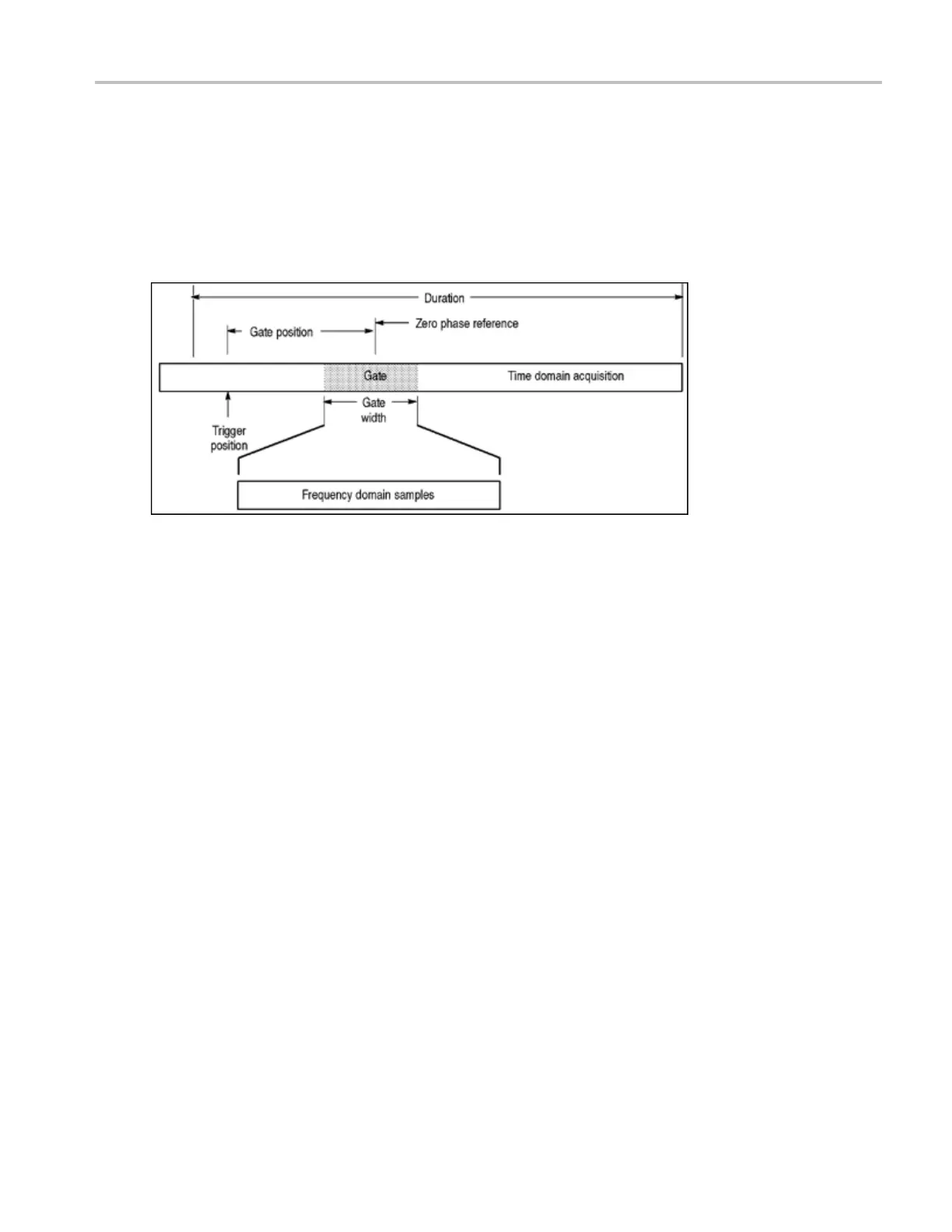

You can use time domain g ating to select a speciﬁc segment of your signal for spectral analysis. Two

controls, gate position and gate duration, determine the location and size of the gate.

The resulting spectrum corresponds to the frequency components of the signal in the gated segment.

Time domain gating is inversely proportional to the resolution bandwidth of the spectral waveform. The

narrower the gate, the larger the resolution b andwidth and the lower the frequency resolution. To obtain

the best frequency resolution, use as wide a gate as possible.

DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 255
