Oscilloscope Reference Probe compensation

Probe compensation

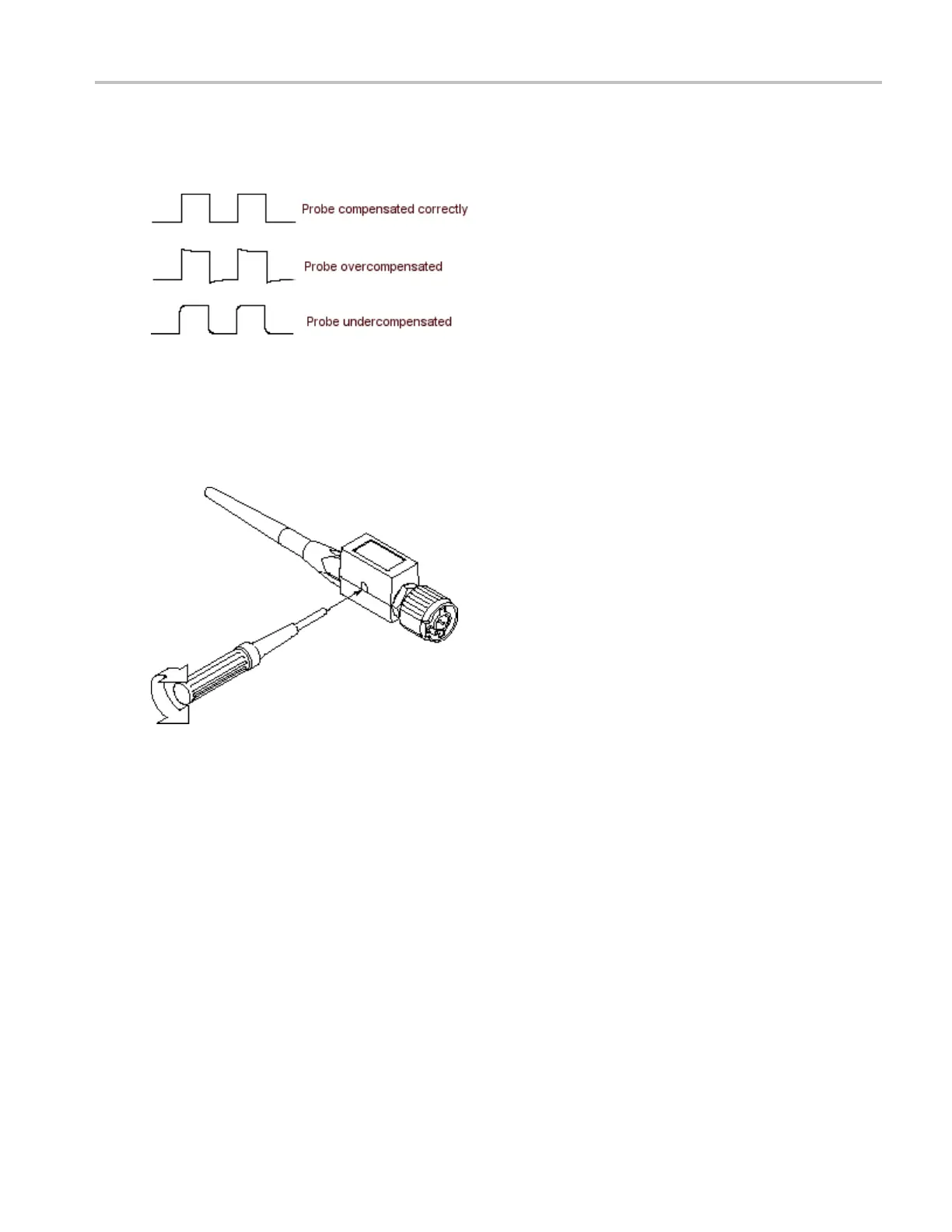

Probe compensation adjustment

Probe compensation output

Use the Probe Compensation output to compensate or deskew passive or active voltage probes.

Quality factor

Quality factor is the ratio of eye size to noise.

Quality

Factor = (PTopmean – PBasemean)/(PTopsigma + PBasesigma)
