Tektronix MSO70000C/DX User Manual

File Menu Save As Dialog Box: Digitals

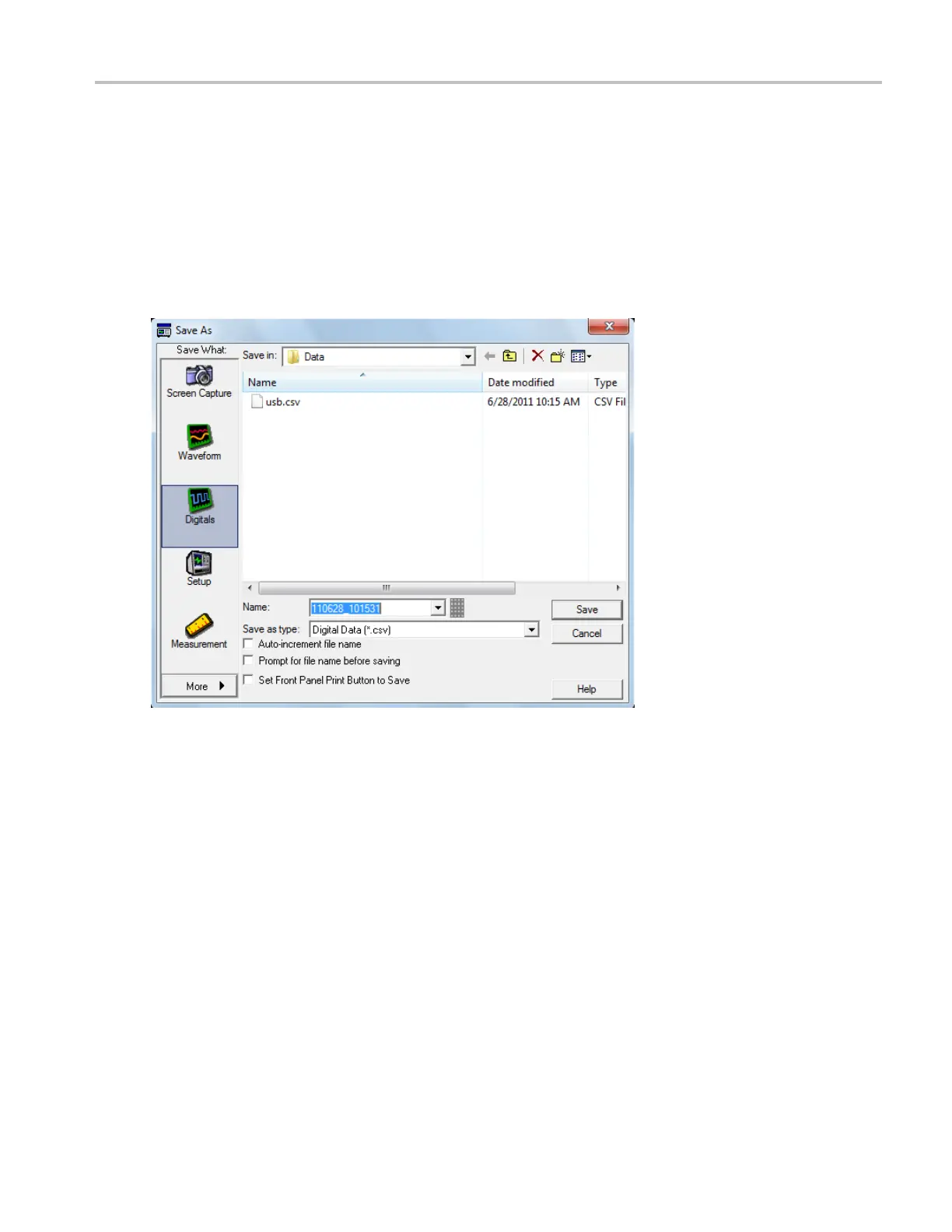

Save As Dialog Box: Digitals
From the File menu, highlight Save As; then select Digitals from the submenu.
Overview
Use this dialog box to save the values o f logic waveforms to a .csv file.
To use
1. Under Save What, click Digitals.
2. Name the file and set the Save as type parameters for the digital data you want to save.
3. Cli
ck the Save button to accept any changes and close the dialog box.
Behavior
Digital data is saved in C:\Users\[Username]\Tektronix\TekScope\data unless you select a
different location.
DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 539

Tektronix MSO70000C/DX Specifications

General

Brand	Tektronix
Model	MSO70000C/DX
Category	Test Equipment
Language	English
