Vertical Setups Probe Setup Control Window: Probe Tip Selection
Probe Setup Control Window: Probe Tip Selection
From the Vertical menu, select Probe Cal, and then click the Probe Tip Select button.
NOTE. Some probes have more than one type of probe tip available. The type of probe tips in the selection
window chang
e according to the probe connected to the instrument. Refer to the probe instructions
manual for more information on the tips available for your probe.
To use
1. Select the type o f probe tip to match the one you are using.
2. Click OK.

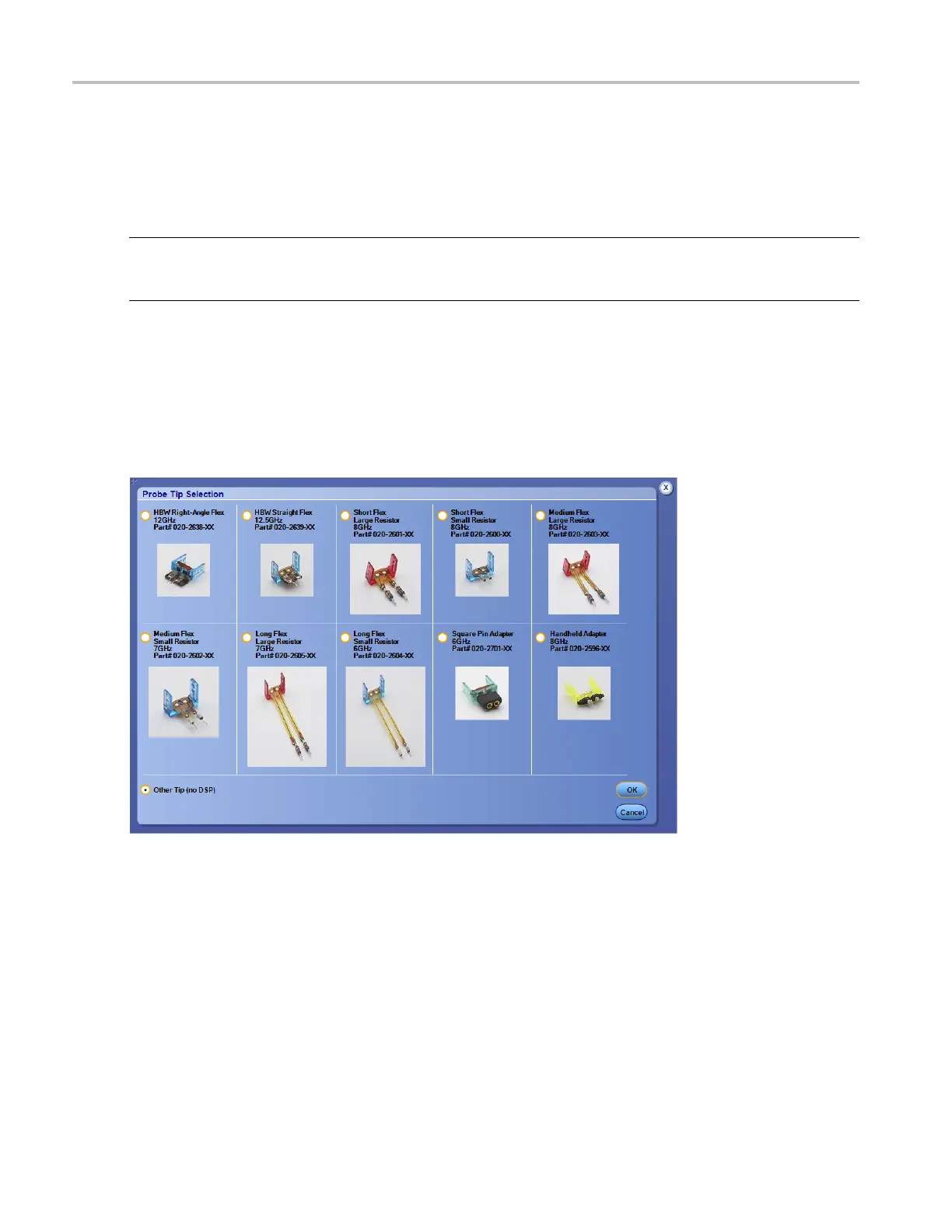

Here is an
example of Probe Tip for Tektronix P73XX probe.
504 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series

Tektronix MSO70000C/DX Specifications

General

Bandwidth	up to 33 GHz
Sample Rate	up to 100 GS/s
Input Coupling	AC, DC, GND
Input Impedance	50 Ω or 1 MΩ
Trigger Types/Modes	Edge, Pulse Width, Runt, Timeout
Vertical Resolution	8 bits
Interface	USB, LAN, GPIB, HDMI
Operating Temperature	0 °C to 50 °C
