Copying and Printing Page Setup Dialog Box

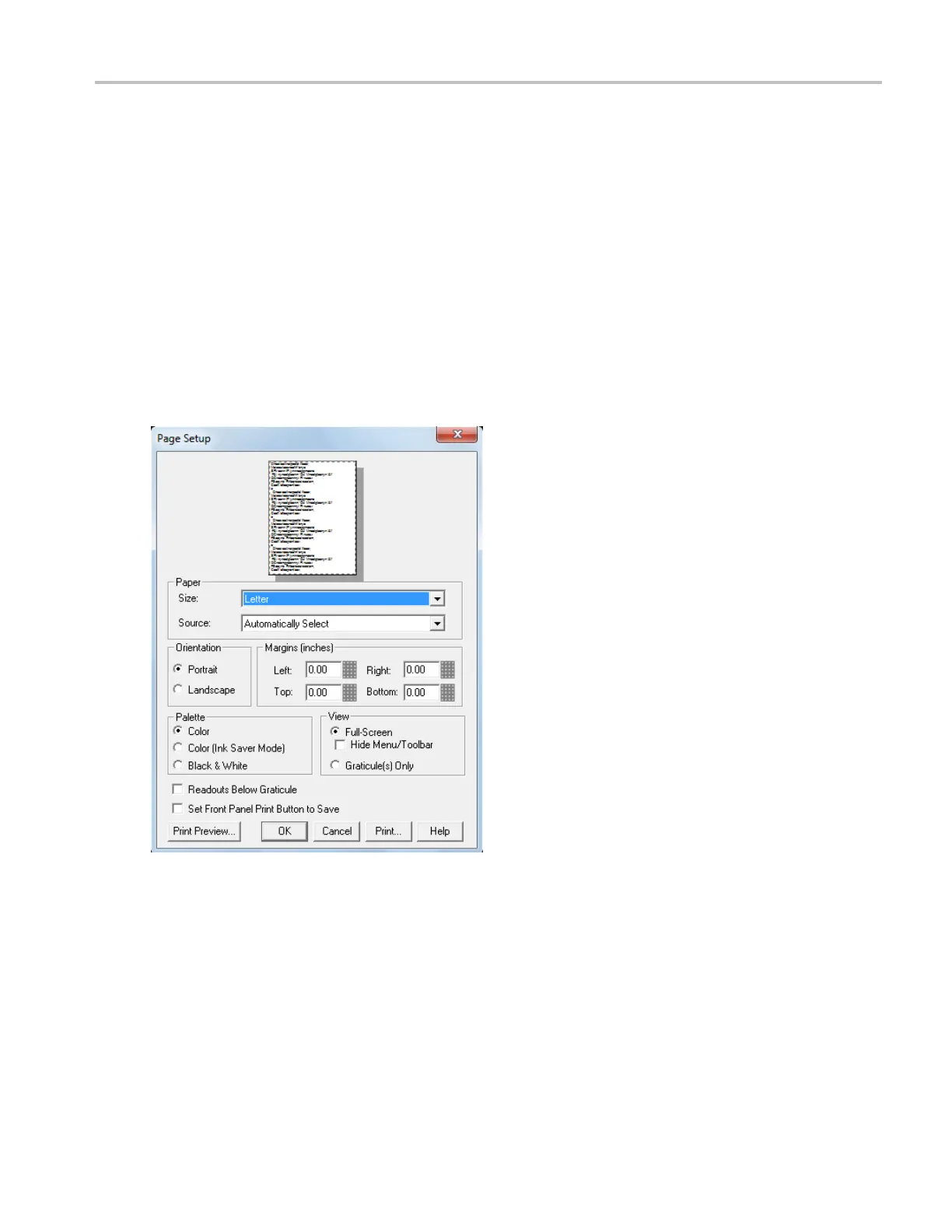

Page Setup Dialog Box

From the File menu, select Page Setup.

Overview

Use the Page Setup dialog box to deﬁnethepagebeforesendingittoaprinter.

To use

The contro

ls in this window are similar to the Page Setup dialog boxes used in most Windows applications

(see example below).

The Paper settings are dependent on the type of printer connected to the instrument. A reduced preview

ima

ge appears at the top of the window. To view a larger image, click Print Preview at the bottom of

the window.

ick the Print button when you have selected all of your desired settings.

DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 519
