Analyzing waveforms Set up LIN search parameters

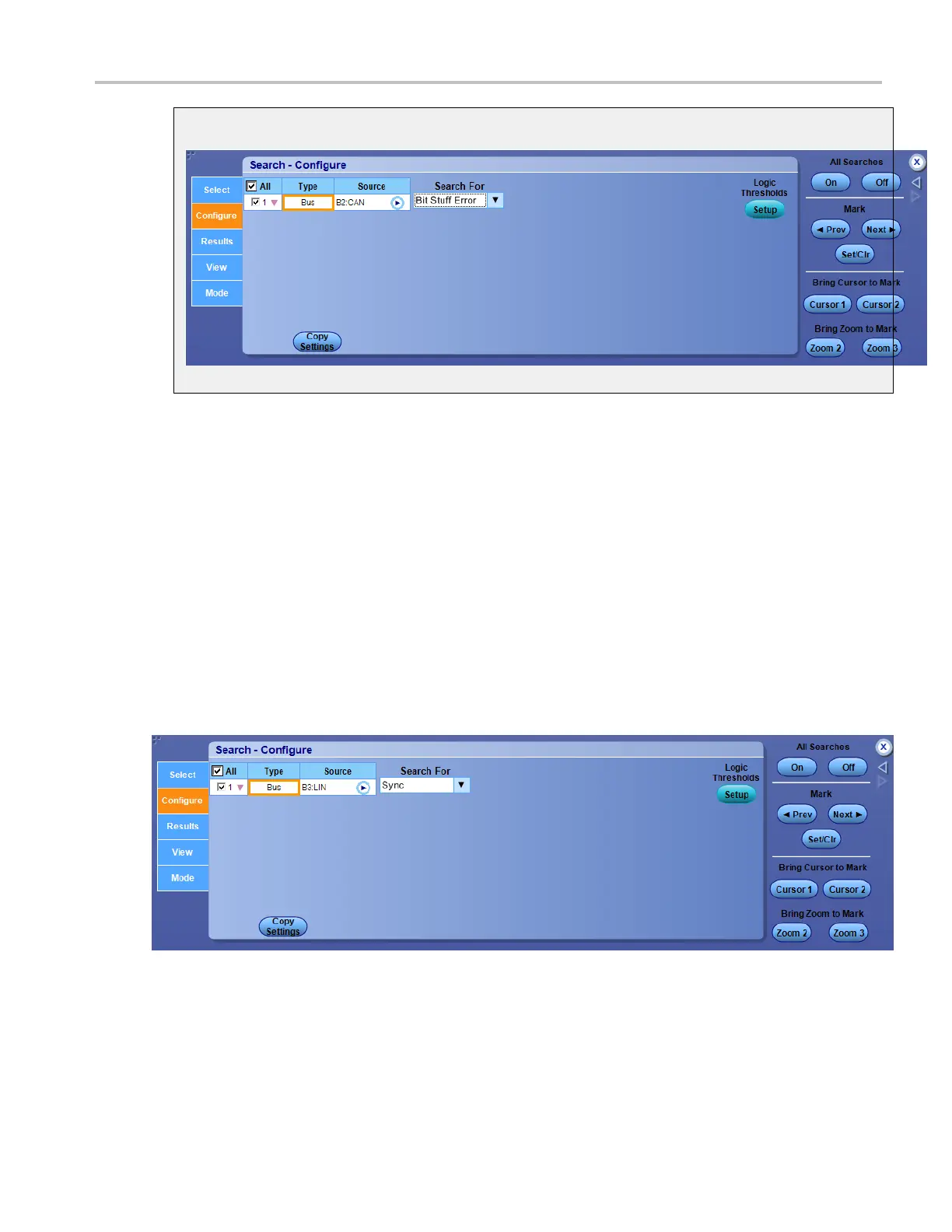

Search for bit stuff error
Set up LIN search parameters
After setting up an LIN bus, go to the Analyze menu, select S earch, and then select the Bus trigger type;
then ope
ntheConfigure tab.
Overview
Use the controls to set up the LIN Bus parameters.
To use
For information o n the controls, click the buttons.
DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 349
