Analyzing waveforms Set up MIPI search parameters

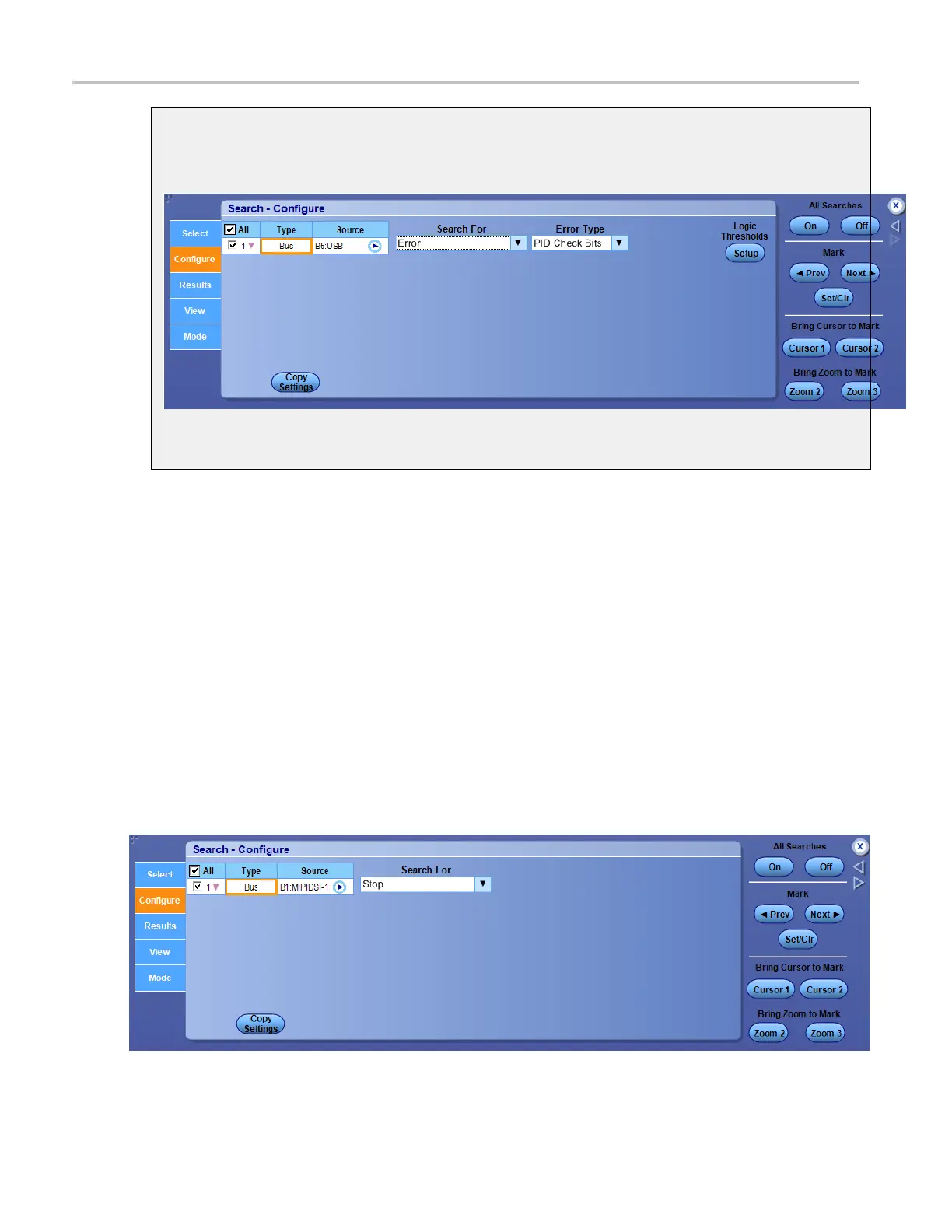

Search for error
The Error option available in Search For Error is Error Type.
Select the Error Type from the drop-down list. Click Setup to adjust the logic threshol
ds.
Set up MIPI search parameters
After setting up a MIPI bus, go to the Analyze menu, select Search, and then select the Bus trigger type;
then open the Configure tab.
Overview
Use the controls to set up the MIPI Bus parameters.
To use
For information on the controls, click the buttons.
336 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
