Tektronix MSO70000C/DX User Manual

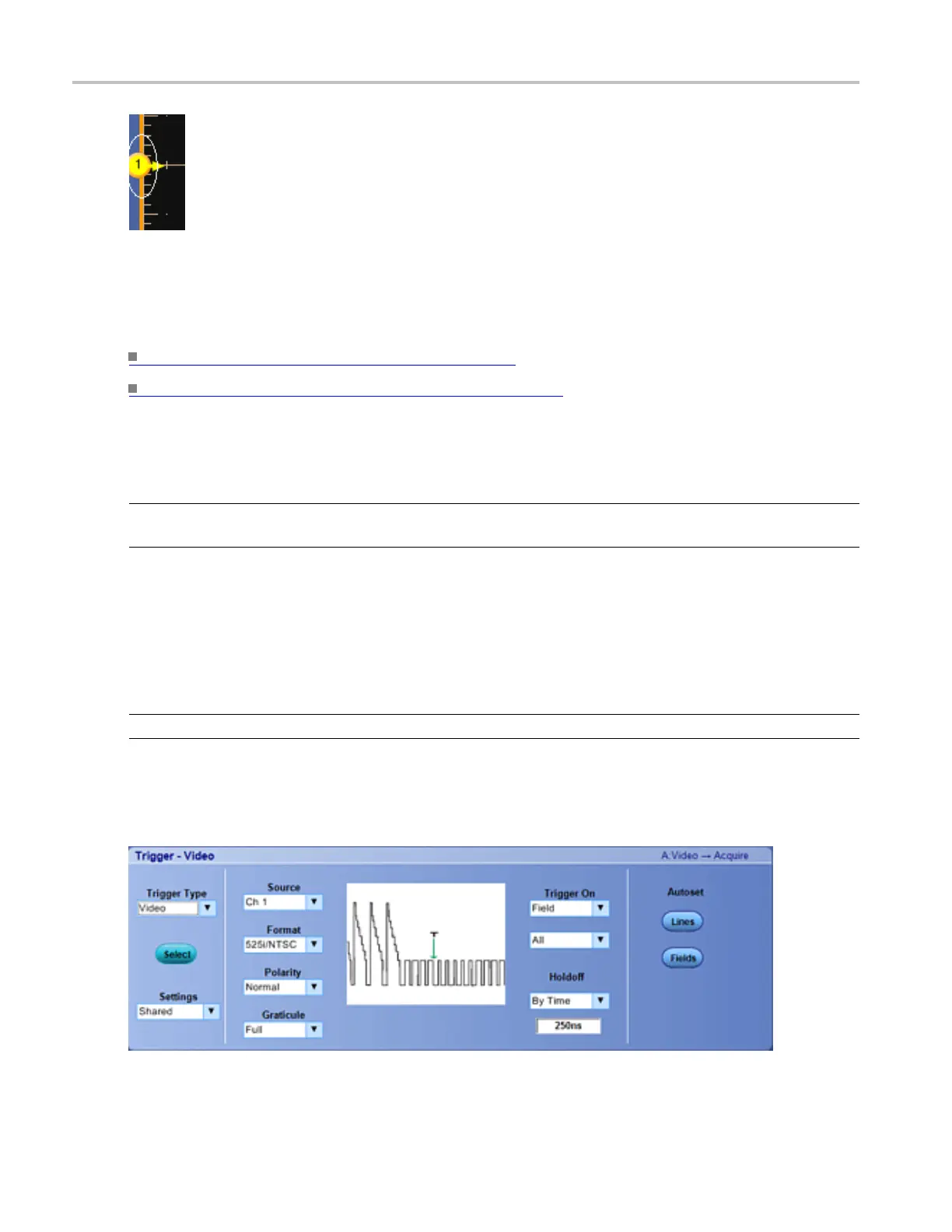

Trigger setups Set up a Video trigger
Use the Upper Level and Lower Level controls to define the voltage ranges of interest. The Time control
specifies the target transition time.
What do you want to do next?
Learn more about other trigger types. (see page 386)
Return to the Trigger Setup control window. (see page 385)
SetupaVideotrigger
NOTE. The video trigger type is available only on DPO7000C, MSO5000, and DPO5000 Series
instruments.
From the Trig menu, select Video Setup.
Overview
Use the controls in this window to set up the Video trigger parameters.
NOTE. The Video trigger is only available on analog channels.
To use
For information on the controls, click the buttons.
440 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
