Trigger setups Trigger After Time (Horizontal Delay on)
Trigger After Time (Horizontal Delay on)
From the Trig menu, select A - B Trigger Sequence.
Overview
Use the controls in this window to define the parameters for the A ->B Sequence trigger with Horizontal
Delay on.
NOTE. The A->B Sequence trigger is not available with MultiScope Triggers.
For infor
mation on the controls, click the buttons.

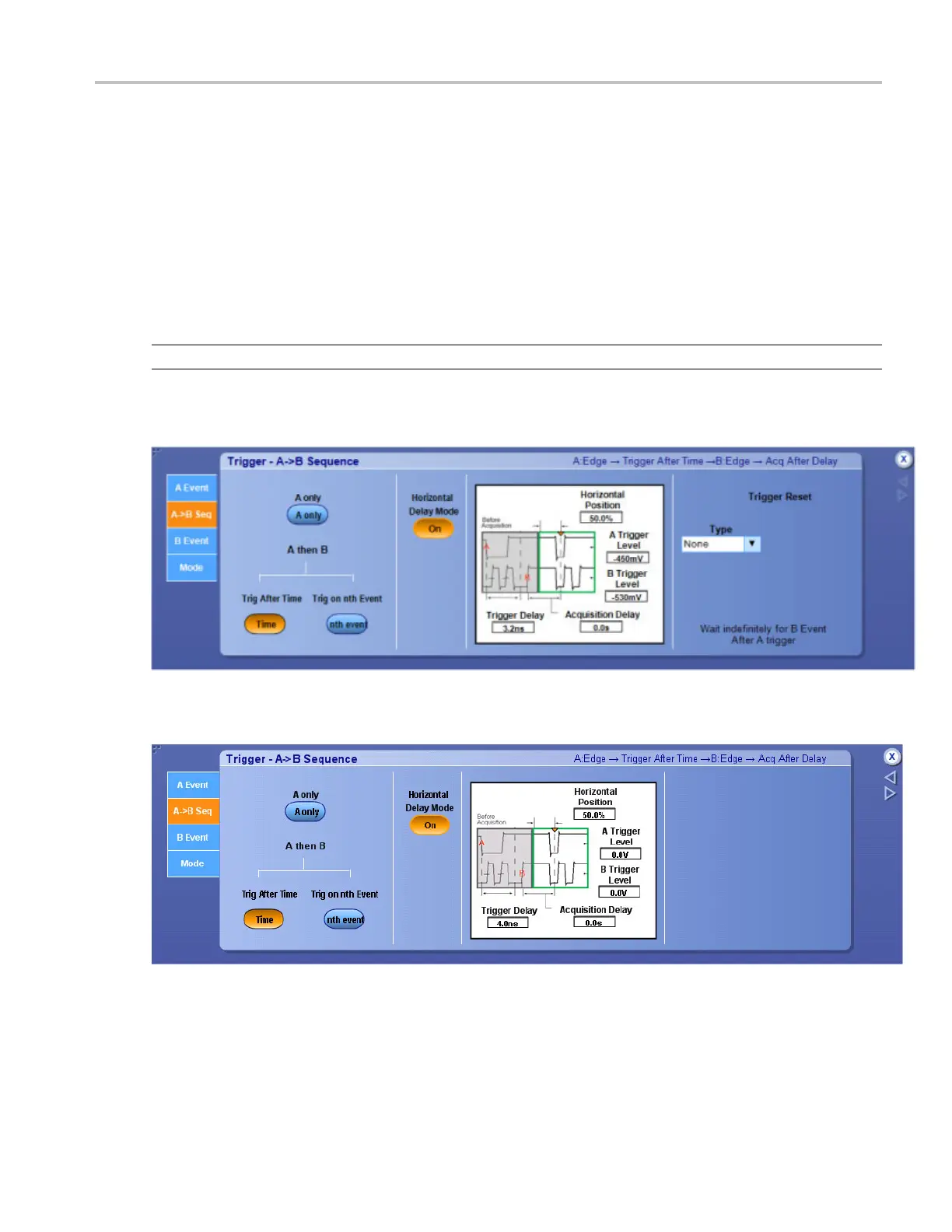

The following screen appears on MSO/DPO5000 Series instruments:
DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 449
