Oscilloscope Reference Rectangular window

Blackman-Harris window

What do you want to do next?

Learn about using spectral analyzer windows. (see page 771)

Rectangular window

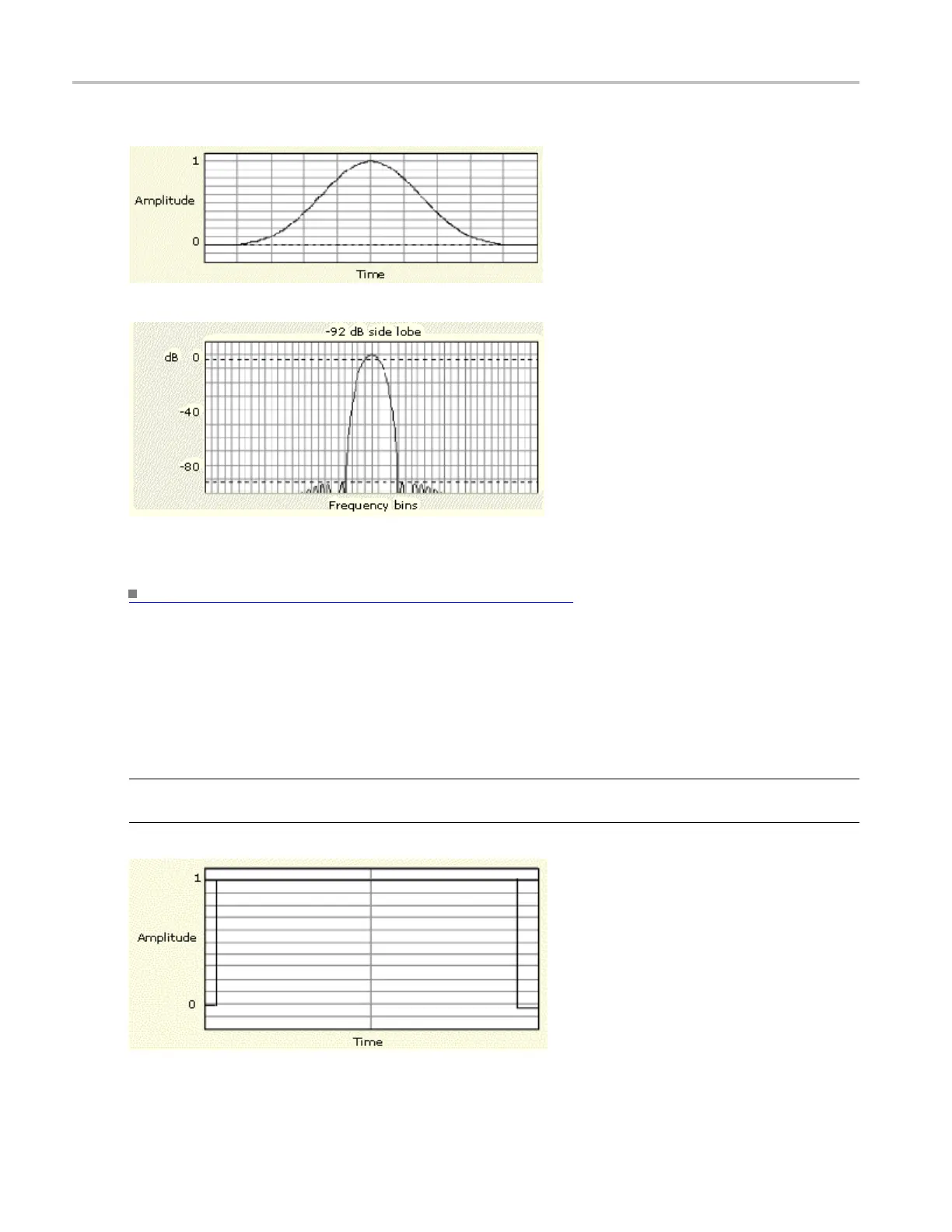

This window is equal to unity (see the next ﬁgure). This means the data samples in the gate are not

modiﬁed before input to the spectral analyzer.

NOTE. This window has the narrowest resolution bandwidth of any of the windows, but it also has the

most spectral leakage and the highest side lobes.

778 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
