Analyzing waveforms View the protocol decode event table
To use
Click the Source box and select the bus number or name from the window. Bus Search Selection
List (see page 98)
Select the pattern to search for using the Pattern Editor.
Select when to place a mark using the Mark When Pattern drop-down list.
What do you want to do next?
Learn about
bus setups
(see page 95)..
Learn about Custom Serial Bus Setup (see page 112)

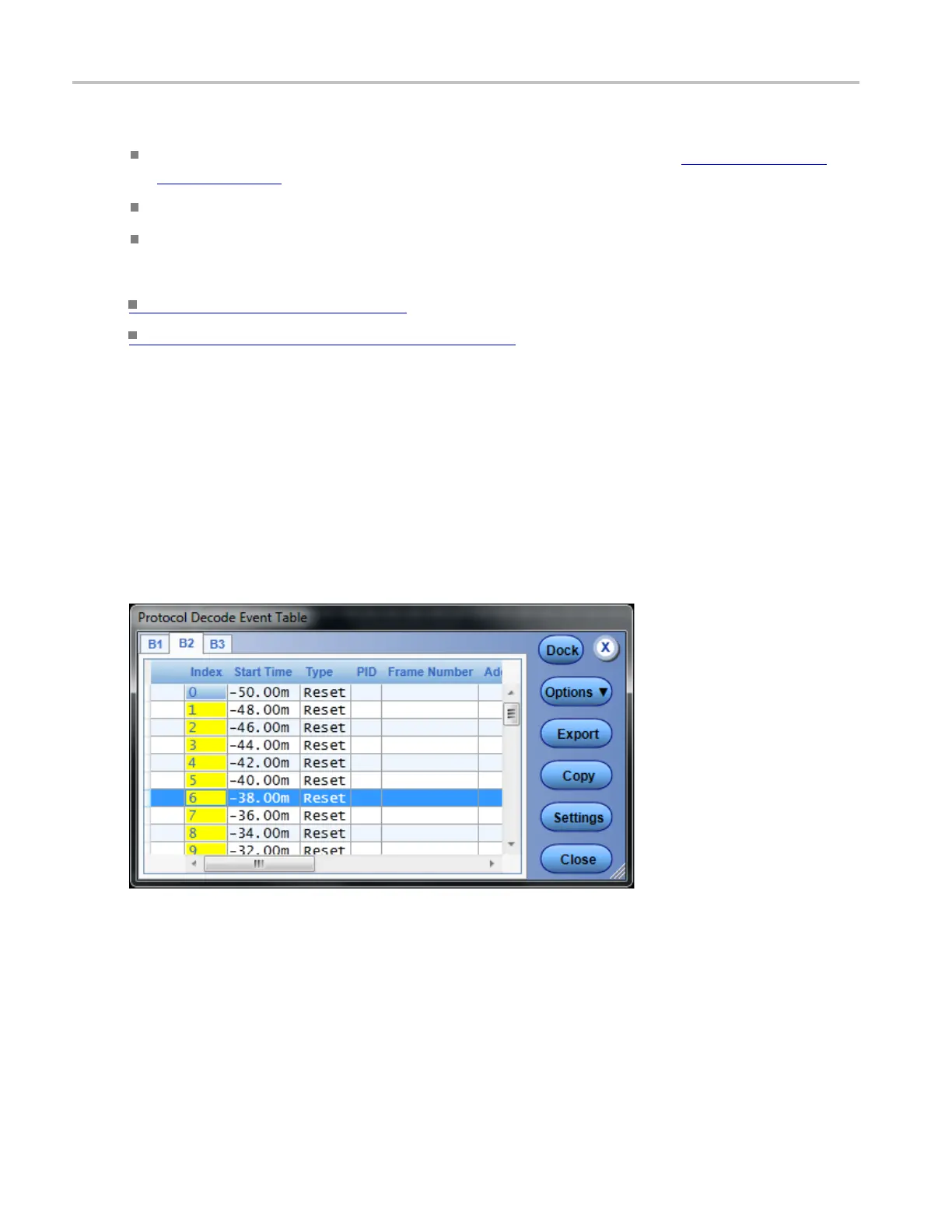

View the protocol decode event table
From the Bus Setup window, select the Display tab, and click Protocol Event Table, or in the Analyze
menu, select Protocol Decode Event Table.
Overview
Use thi
s dialog box to view the d ecoded contents of a bus.
370 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
