Oscilloscope Reference Te k-Exponential window
What do you want to do next?
Learn about using spectral analyzer windows. (see page 771)
Tek-Exponential window

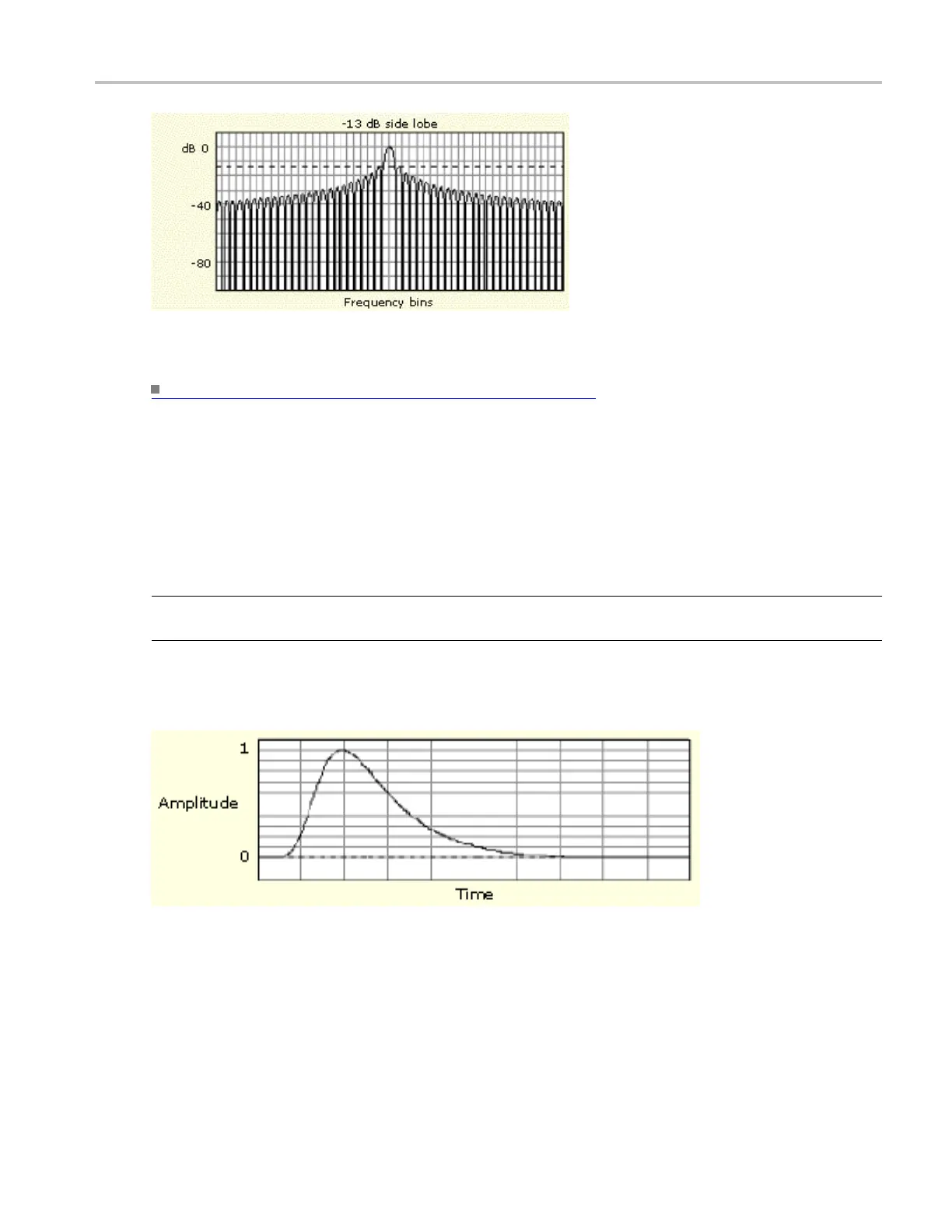

In the time domain, it is not a symmetrical bell shape as is the case with the other windows. Instead, it
is exponential with a peak at the 20% position of the time domain gate. The frequency domain shape is
triangular.
NOTE. U
se this window for impulse-response testing where the 20% position is the zero phase reference
point. More of the acquired data record length is used to capture the impulse response.
Exac
t details of how to compute its values were published in the article; Impulse-Response Testing Lets a
Single Test Do the Work of Thousands, by John Pickerd, EDN magazine, April 27, 1995.
DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 779
