Analyzing waveforms Set up RS-232 search parameters

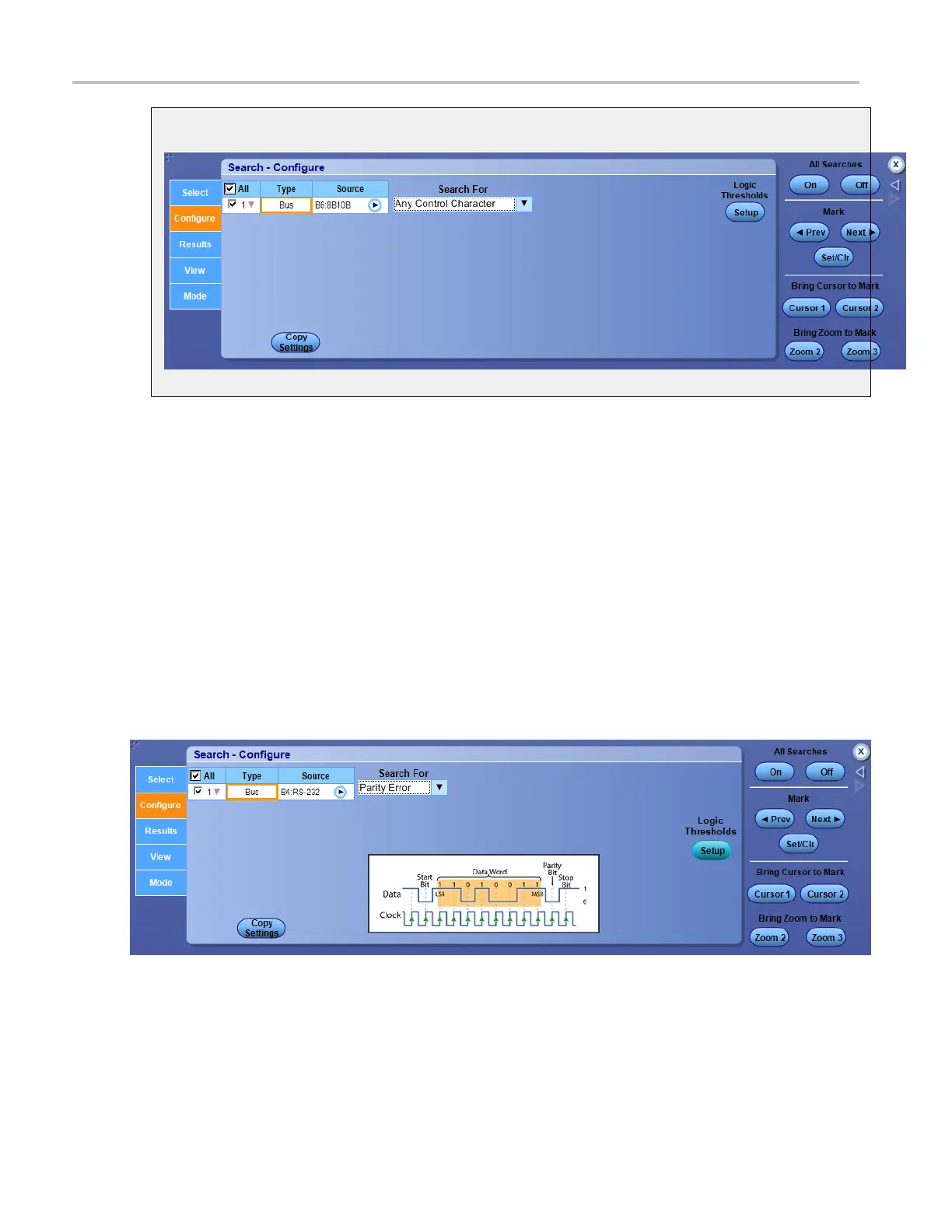

Search for any character

Set up RS-232 search parameters

After setting up an RS-232 bus, go to the Analyze menu, select Search, and then select the Bus trigger

type; th

en open the Conﬁgure tab.

Overview

Use the controls to set up the RS-232 Bus paramete rs.

To use

For information on the controls, click the buttons.
