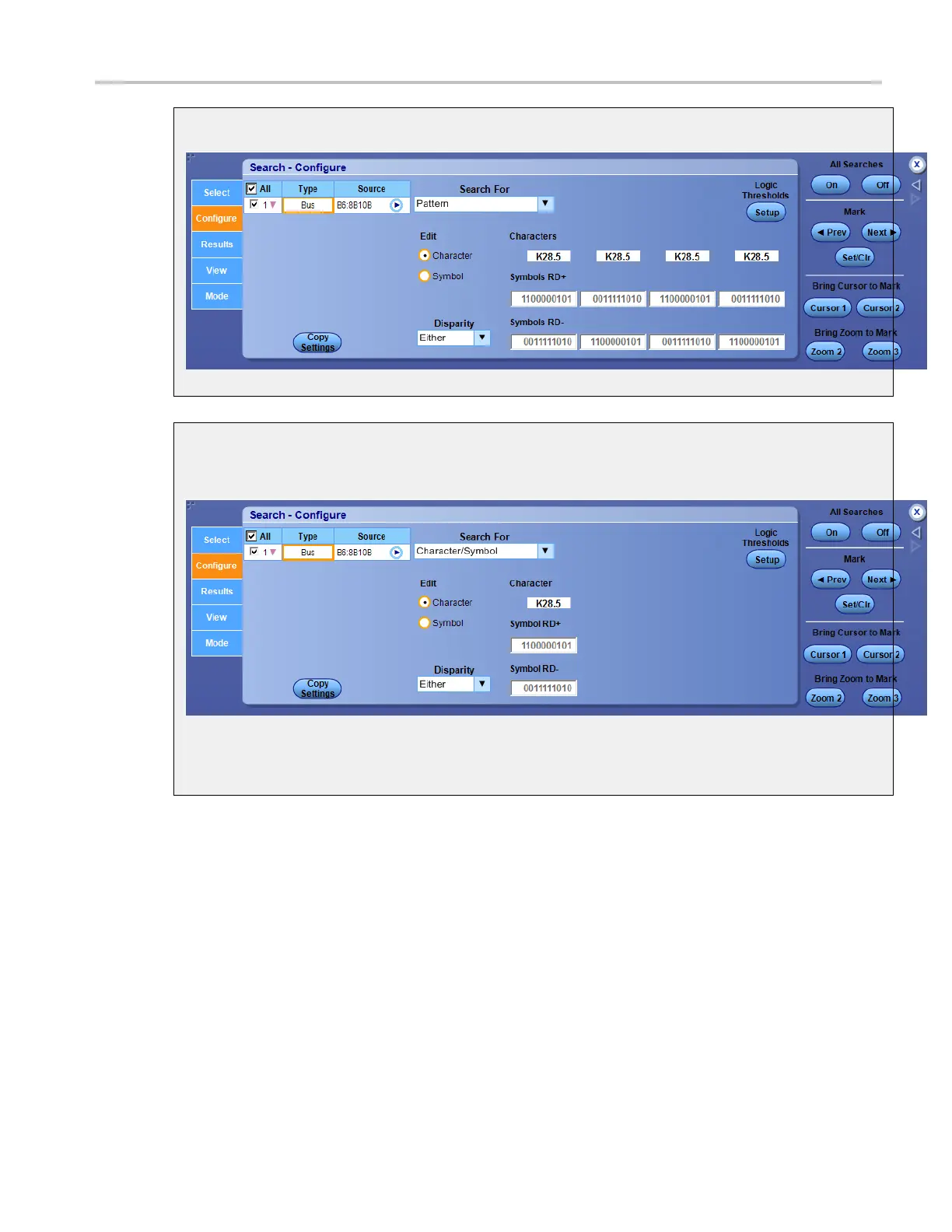

Analyzing waveforms Set up 8B10B search parameters

Search for pattern

Search for character/symbol

The m ode options available in Search For Character/Symbol are Character, Symbol, and Disparity.

Sele

ct the Disparity from the drop-down list. Click Charact er to search for a character. Click Symbol

to search for a symbol. Click Setup to adjust the logic thresholds.

DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 319
