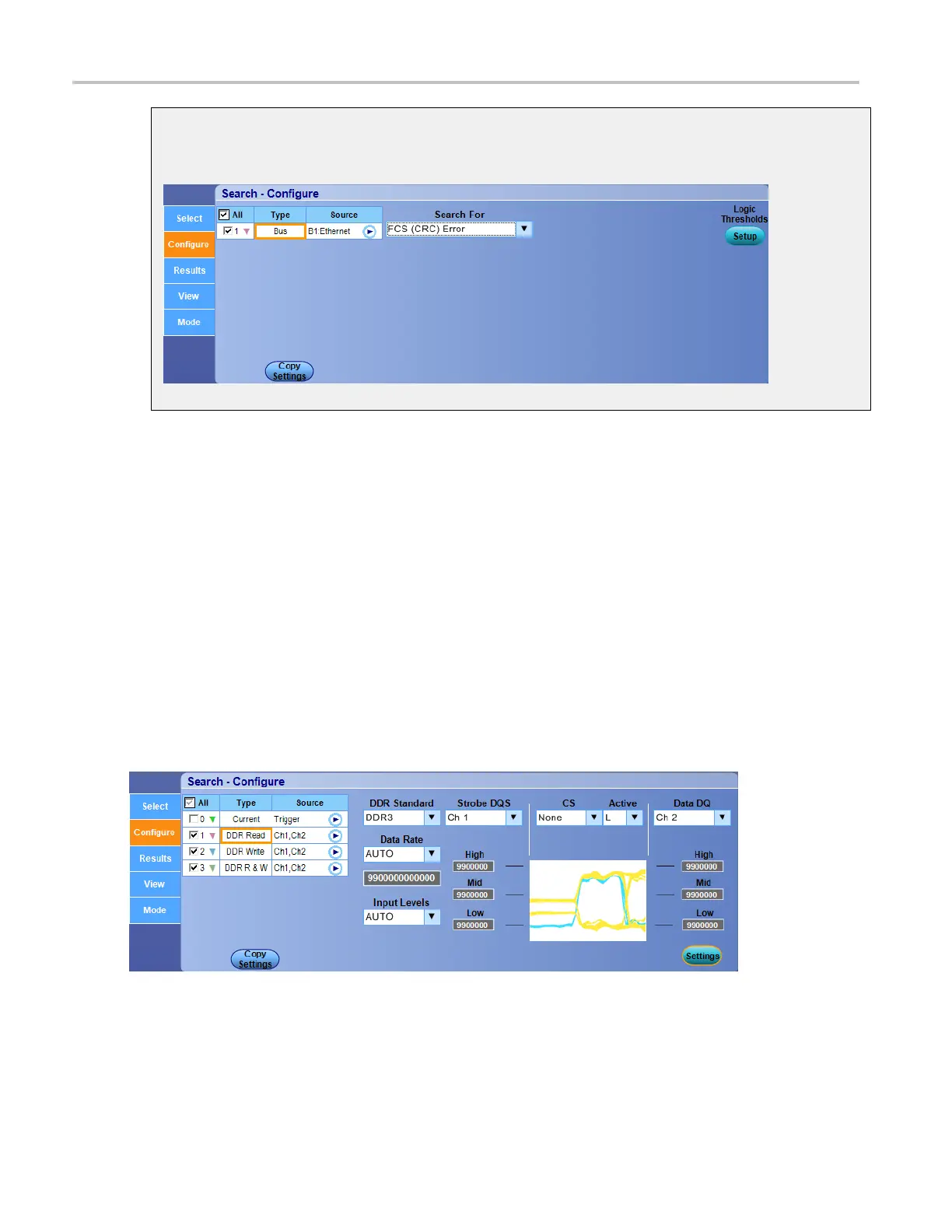

Analyzing waveforms Set up DDR search parameters
FCS (CRC) error
Select FCS (CRC) Error to search for an Ethernet FCS error.
Set up DDR search parameters
After setting up a DDR bus, go to the Analyze menu, select Search, and then select the bus trigger type;
then open the Configure tab.
Overview
Use the controls to set up DDR, DDR2, DDR3, DDR4, DDR3L, LPDDR, LPDDR2, LPDDR3, GDDR3,
GDDR5 bus parameters.
To Use
For i
nformation o n the controls, click the buttons.
366 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
