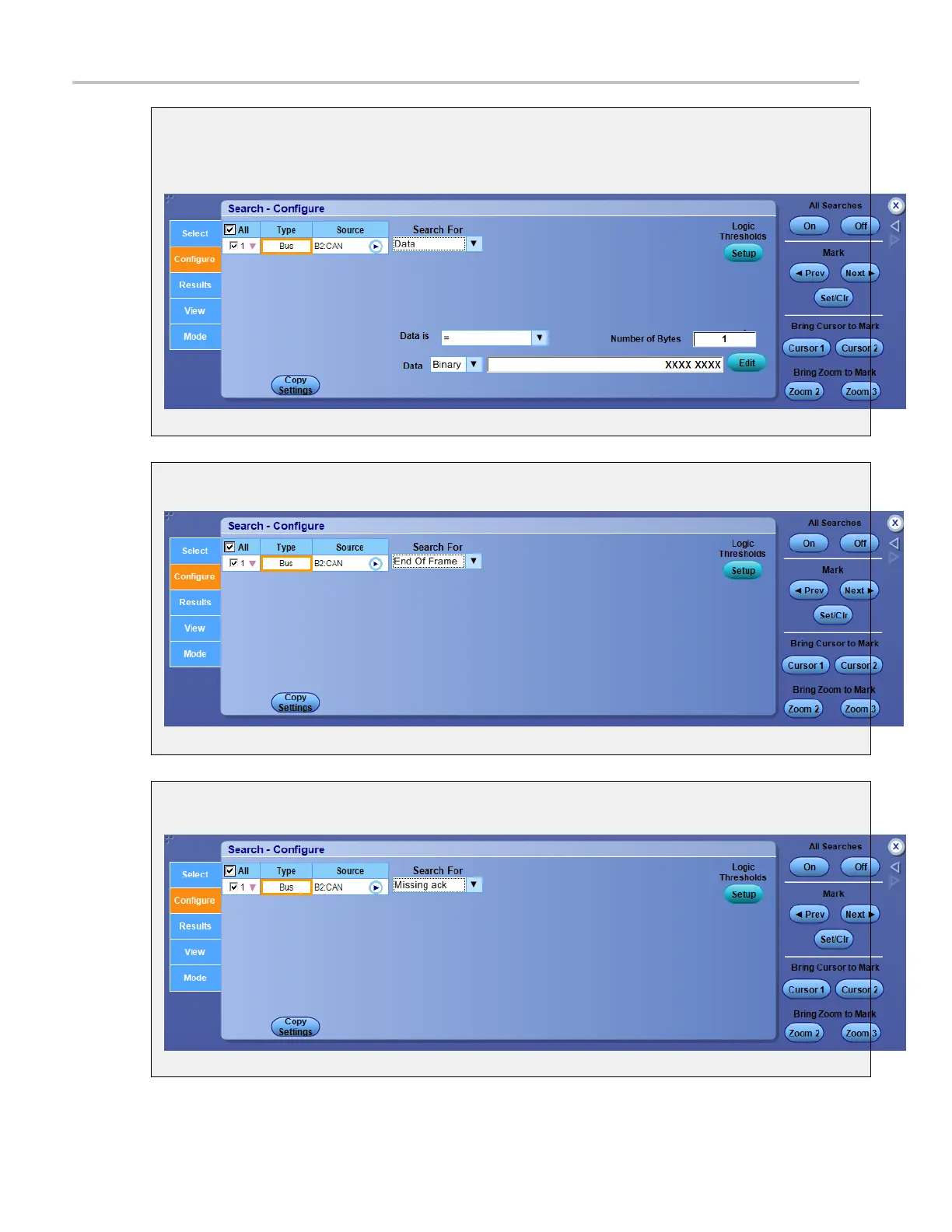

Analyzing waveforms Set up CAN search parameters

Search for data

The data type options available i n Search For Data are Number of Bytes, Data , and Data is.

Search for en d of frame

Search for missing ack

348 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
