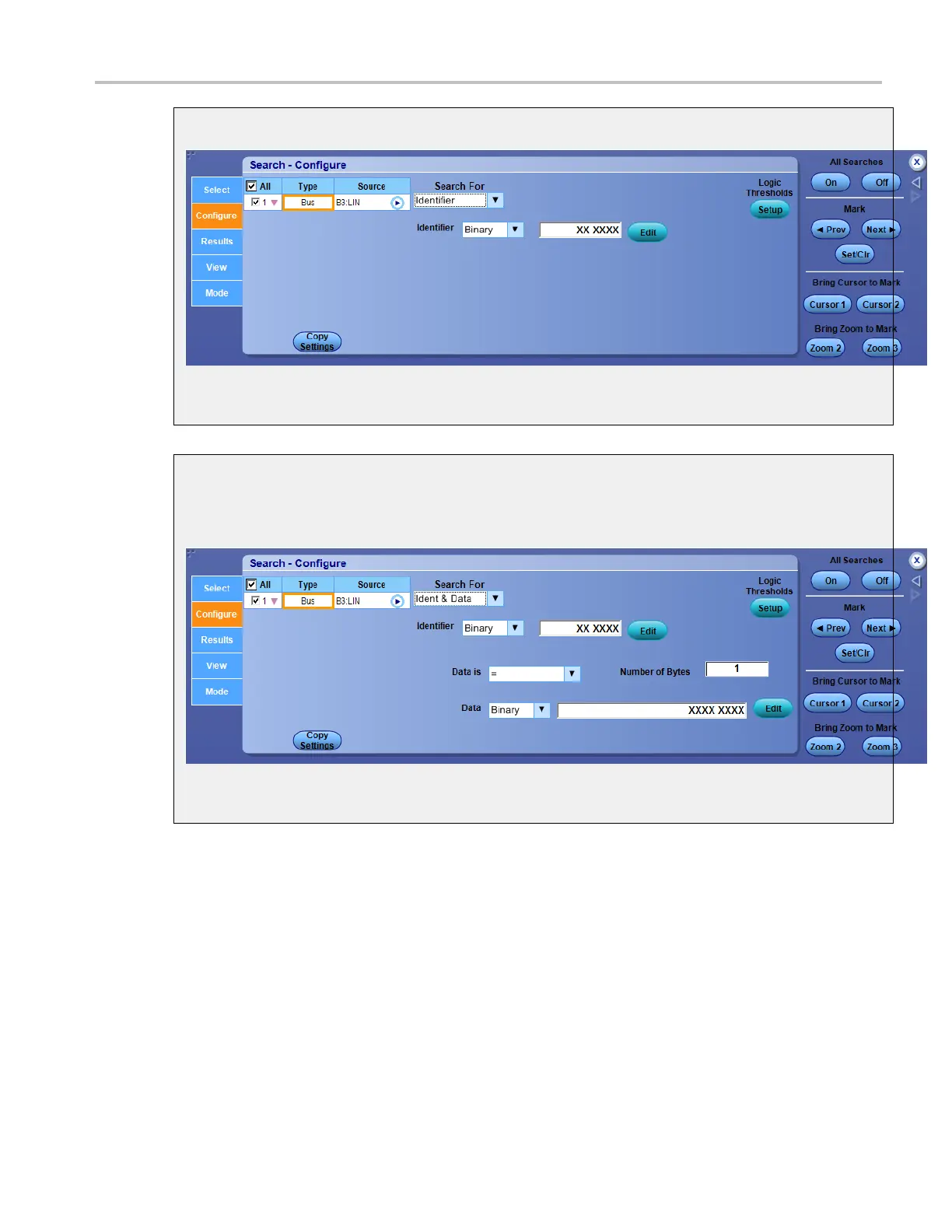

Analyzing waveforms Set up LIN search parameters

Search for identiﬁer

Select the Identiﬁer from the d rop-down list. Click Edit to enter the data value.

Search for ident & data

The data type options available in Search For Ident & Data are Number of Bytes, Identiﬁer, Data is,

and Data

value.

Sel

ect the Data from the drop-down list. Click Edit to enter the data value.

DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 351
