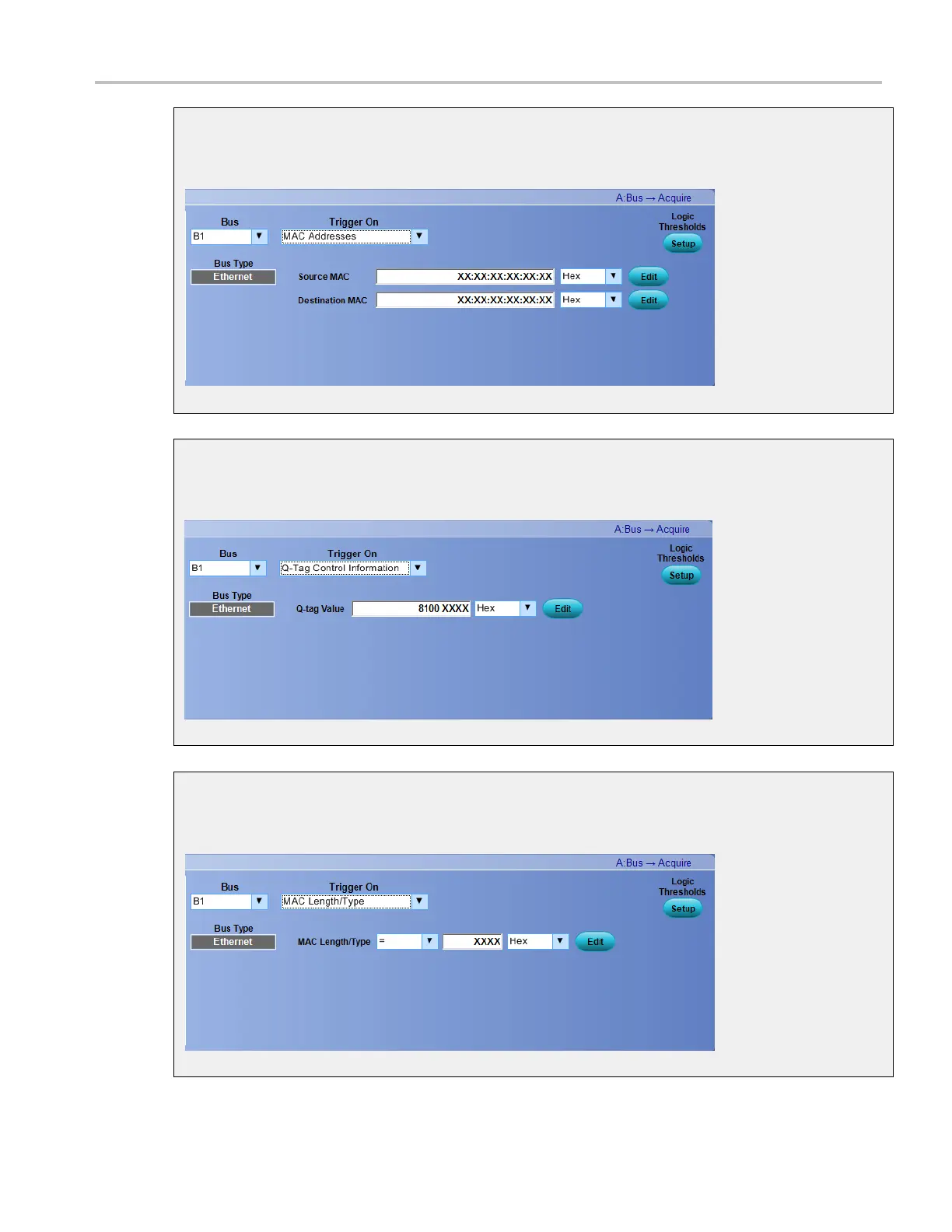

Trigger setups Set up an Ethernet bus trigger

Trigger on MAC Addresses

For Trigger On MAC Addresses you need to set the Source MAC and the Destination MAC.

Trigger on Q-Tag Control Information

For Trigger on Q-Tag Control Information you need to specify the Q-tag Value.

Trigger on MAC Length/Type

For Trigger on MAC Length/Type you need to specify the MAC length and type.

DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 417
