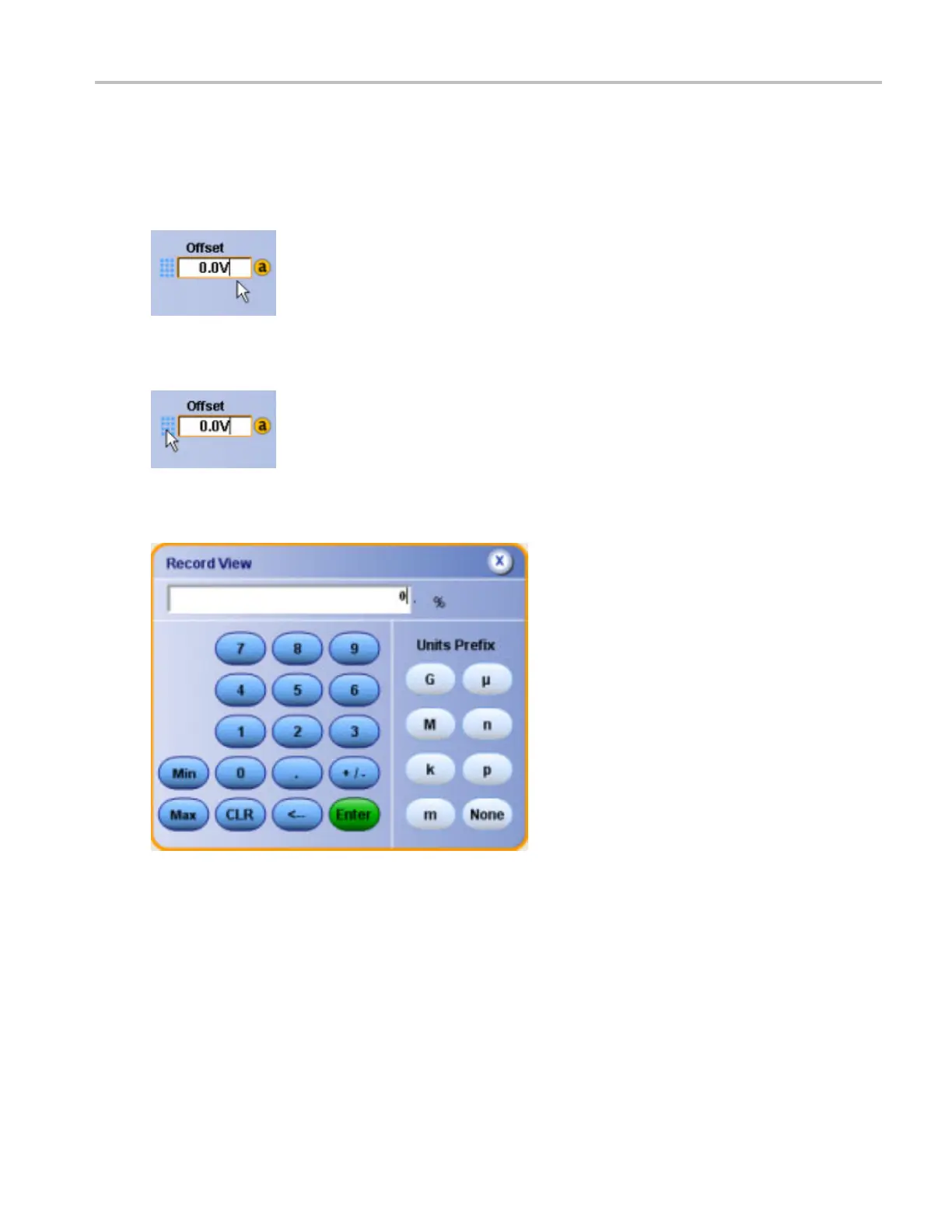

Oscilloscope Reference Pop-up keypad

Pop-up keypad

1. Click in a data entry box.

2. Clickonthekeypadicon.

3. Use the pop-up keypad to enter data.

4. Cli

ck the Enter button.

DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series 895
