Tektronix MSO70000C/DX User Manual

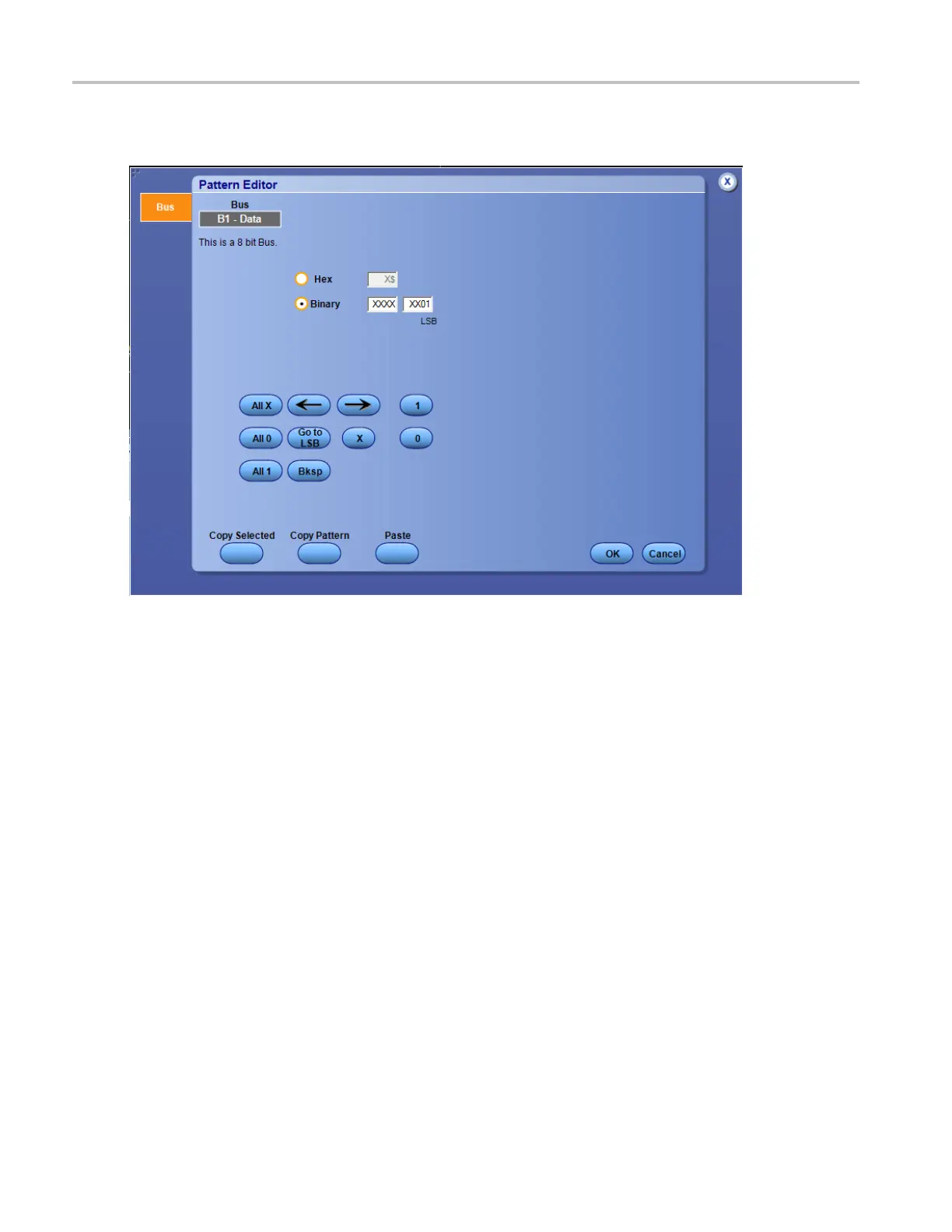

Oscilloscope Reference Bus Pattern Editor (Bus tab)
Address or Port Ad dress) and click Edit button. The Bus field would display the text depending on the type
of bus selected (address, data, hub, or port). For example for data bus (B1), the field would display B1Data.
Select a bus I2C (with Trigger On set to Address or Addr+Data) or USB (with Trigger On set to Token
Address Packet or Data Packet) and click the Edit button. The Bus field would display the text depending
942 DSA/DPO70000D, MSO/DPO/DSA70000C, DPO7000C, and MSO/DPO5000 Series
