114
is displayed superimposed in dark blue, unless you are using the Spectral or Temperature color
palette.
Time Stamps
To Use
Use these controls to use time stamps with FastFrame. Click the Readouts button to display the
time stamp readouts in the graticule. Click the Table button to display the time stamps readouts in
a table format. Select the Reference Frame Source from the drop-down list, and then enter the
Reference Frame with the multipurpose knobs.
Behavior
All other frames are referenced to the Reference Frame when using time stamps. The Reference
Frame is used to calculate time differences for each frame and displays those differences in the
graticule.
When time stamp readouts are turned on, readouts are displayed for the Selected Frame, the
Reference Frame, and the delta (difference between the two frames). The time stamps are
displayed in a format that shows the date and time.
The Time Stamps Table displays the current time stamps and readout information. This table is
read-only.

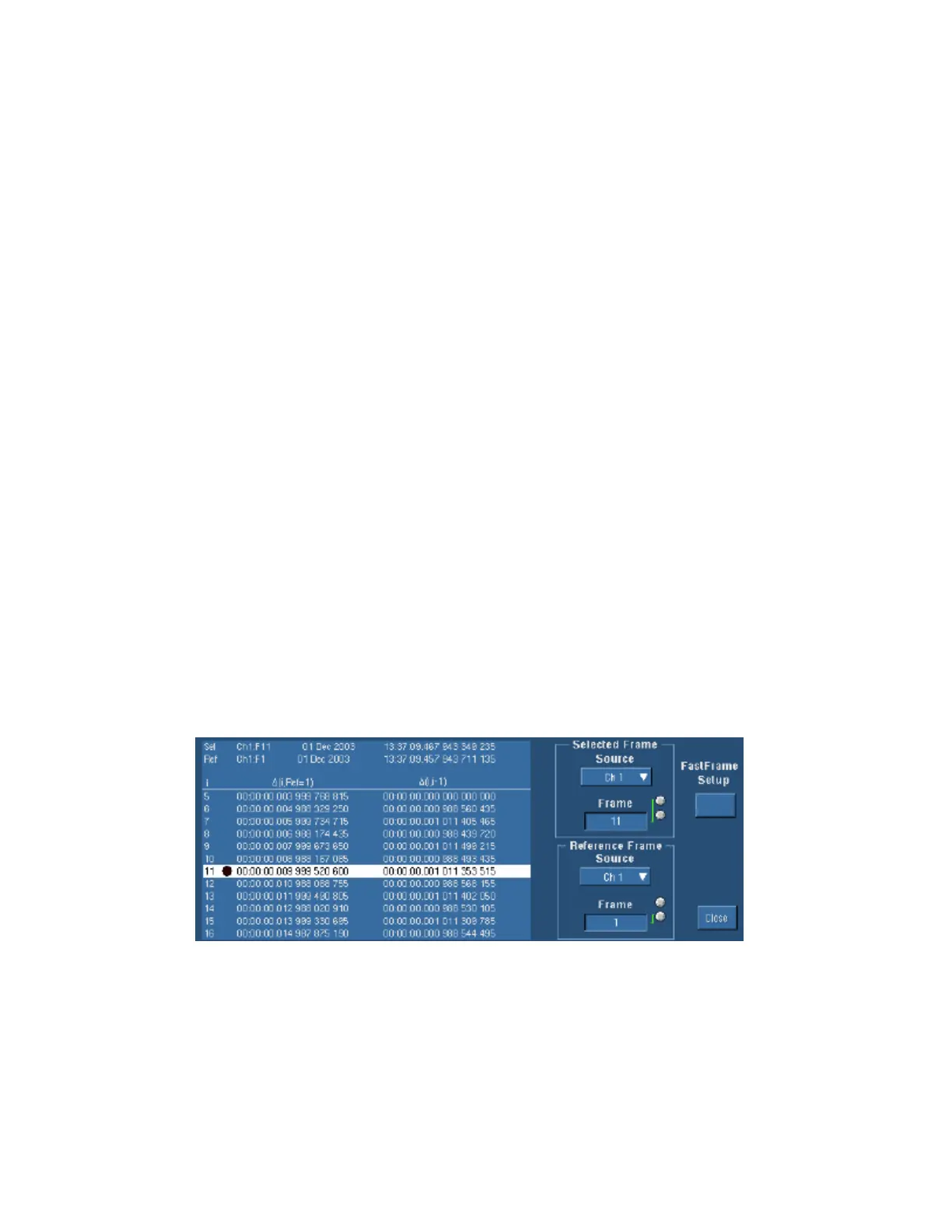

Time Stamp Table
Access this control window by clicking the Table button in the FastFrame Setup control window.
To Use
The Time Stamp table is read-only. Select the source channel from the Selected Source drop-down
list, and then use the multipurpose knob to select the Selected Frame. Select the Reference Frame
Source from that drop-down list, and then use the multipurpose knob to select the reference frame.
Click the FastFrame Setup button to return to the FastFrame Setup control window.
Behavior
The Time Stamps Table displays the current time stamps and readout information based on the
selected frame source and reference frame source.
Using FastFrame Acquisitions
Consider the following operating characteristics when using FastFrame:
To Next Page
