248
Display Elements

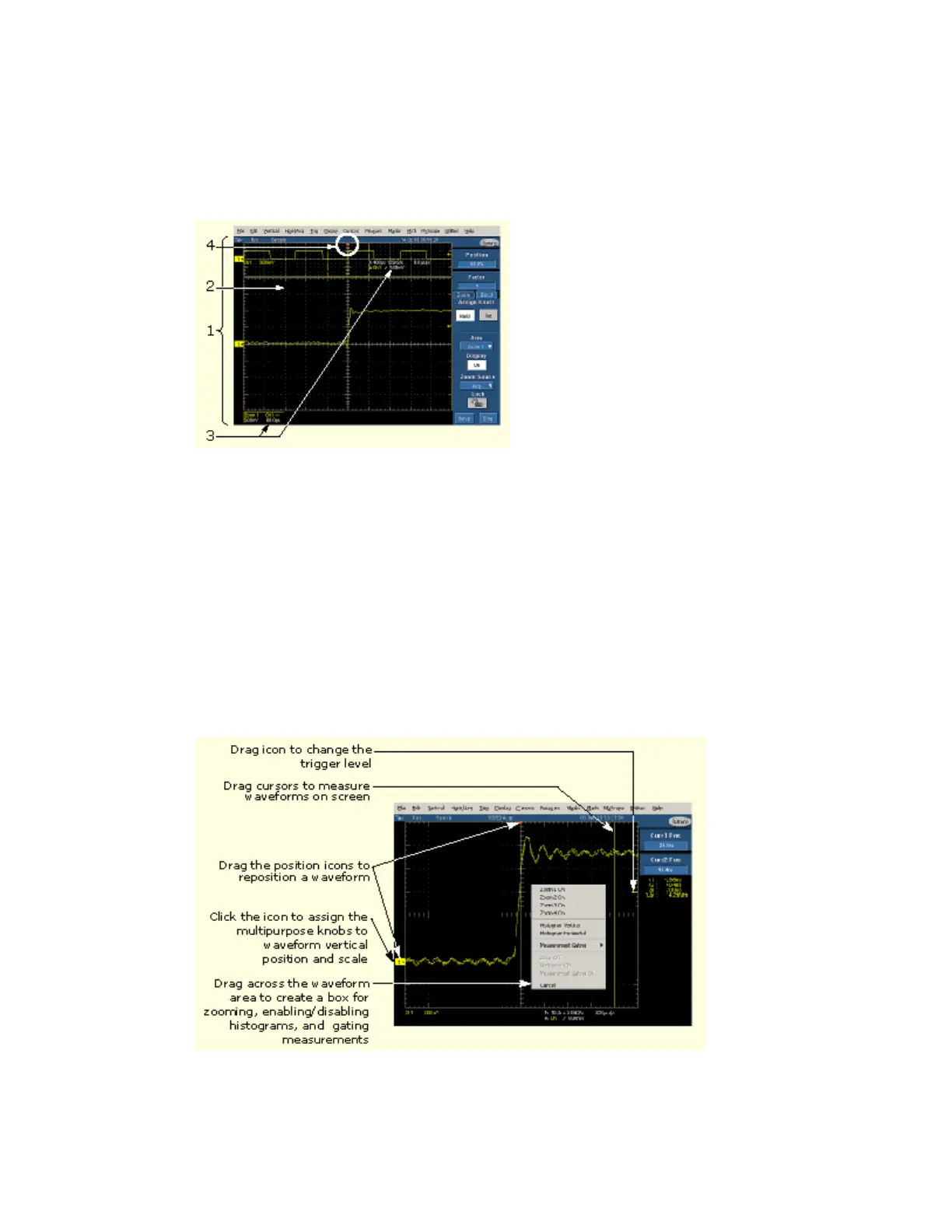

The waveform shown below is displayed as part of the user interface (UI) application. Some terms
that are useful in discussing the UI follow.
(1) The Display is the area where the waveforms appear. The display comprises the time base and
graticules, the waveforms, histograms, and some readouts.
(2) The Graticule is the grid marking the display area. When MultiView Zoom is on, depending on
the graticule split setting, the upper graticule displays unmagnified waveforms and the lower
graticule displays magnified waveforms.
(3) The Horizontal scale readout provides a quick overview of the horizontal settings for zoomed
and unzoomed waveforms.
(4) The Horizontal reference is a control that you can position to set the point around which
channel waveforms expand and contract horizontally on screen as you change the Horizontal Scale
control. It is also the trigger point when the horizontal delay is 0%.
See the following figure for some ideas on how to manipulate the display elements.
