Behavior
When the Positive control is selected, the mask test is performed on the positive pulse. When the
Negative control is selected, the mask test is performed on the negative pulse. When the Both
control is selected, the mask test is performed on both the positive and negative pulses.

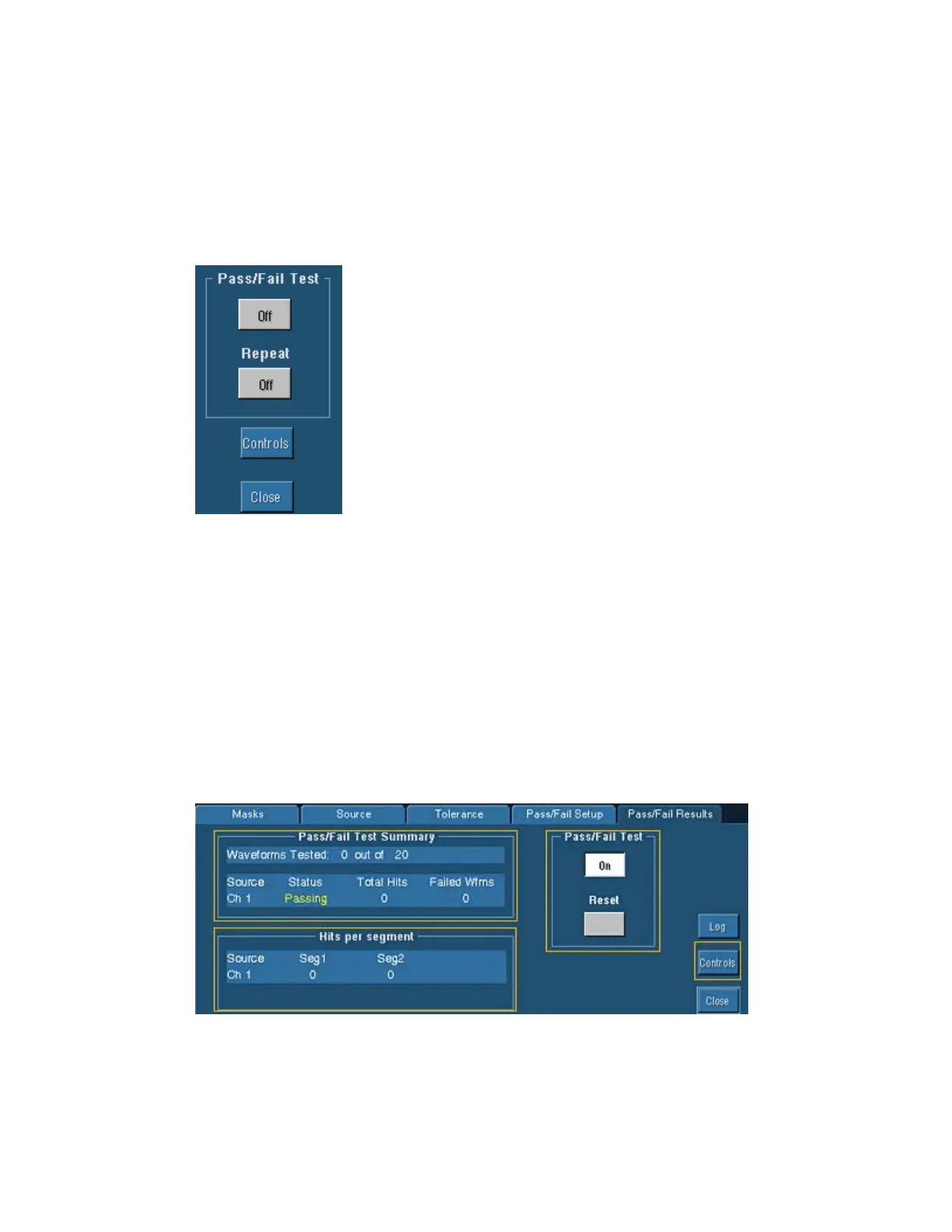

Mask Test Repeat
Overview
Use the controls in the Pass/Fail Test field to start the test or to
run the test continuously. Use the Controls button to open the
Controls control window.
To Use
Click the Repeat control to run the test continuously. Click the
On/Off control to start the test. Click the Controls button to open
the Mask Test Controls control window
Behavior
When the Repeat control is on, the test runs continuously. When the On/Off control is clicked, the
test starts using the parameters from the Mask Setup control window and the Pass/Fail Results
window is displayed. When the Controls button is clicked the Mask Test Controls control window
is displayed.
Mask Pass/Fail Results Control Window
Access this control window from the Masks menu and select Pass/Fail Results….
Overview
Use this control window to view real time test results, start the test, reset the test at the beginning,
activate the waveform failure log file, and open the Mask Test Controls control window.
