125
Behavior
Use the Timeout trigger to trigger the instrument on pulses longer than the specified time. The
instrument will trigger at the end of the timeout period. The instrument can trigger on high, low, or
both high and low pulses.
Use the Timer control to specify the timeout limit; any pulses wider than the limit will trigger the
instrument. The timeout limit is measured at the voltage level specified by the Level control.

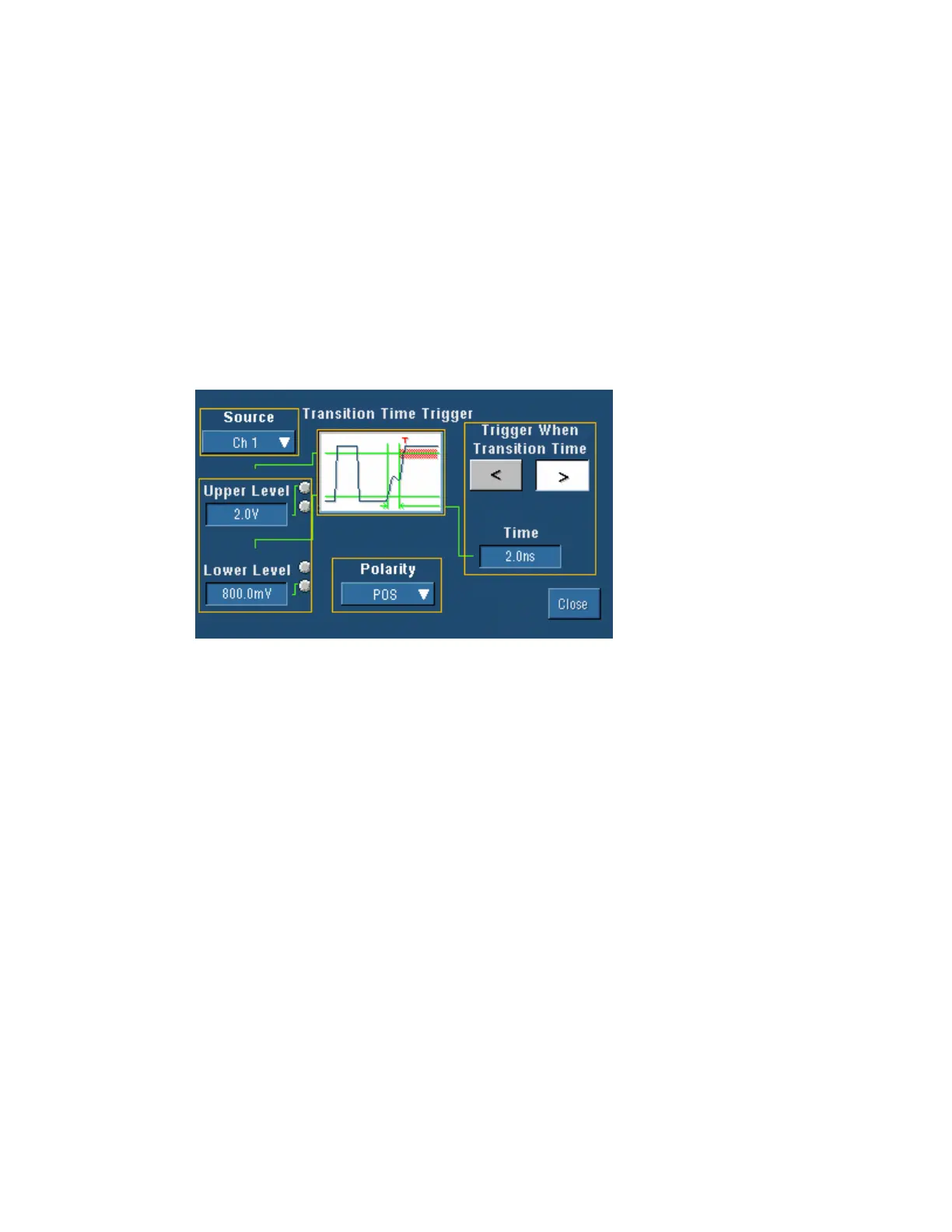

Transition Time Trigger Control Window
To Use
Use these controls to set the Transition Time trigger parameters.
Behavior
Use the Transition trigger to trigger the instrument on pulse edges that traverse between two
thresholds at faster or slower rates than the specified time. You can set up the instrument to trigger
on positive or negative edges.
Use the Upper Level and Lower Level controls to define the voltage ranges of interest. The Time
control specifies the target transition time.
