175
tolerance that is > 0 demonstrates that the signal passes the test with a margin for further error.
Setting the tolerance to < 0 makes a mask test easier to pass. A tolerance that is < 0 can be used to
demonstrate by how much of a margin the signal fails.

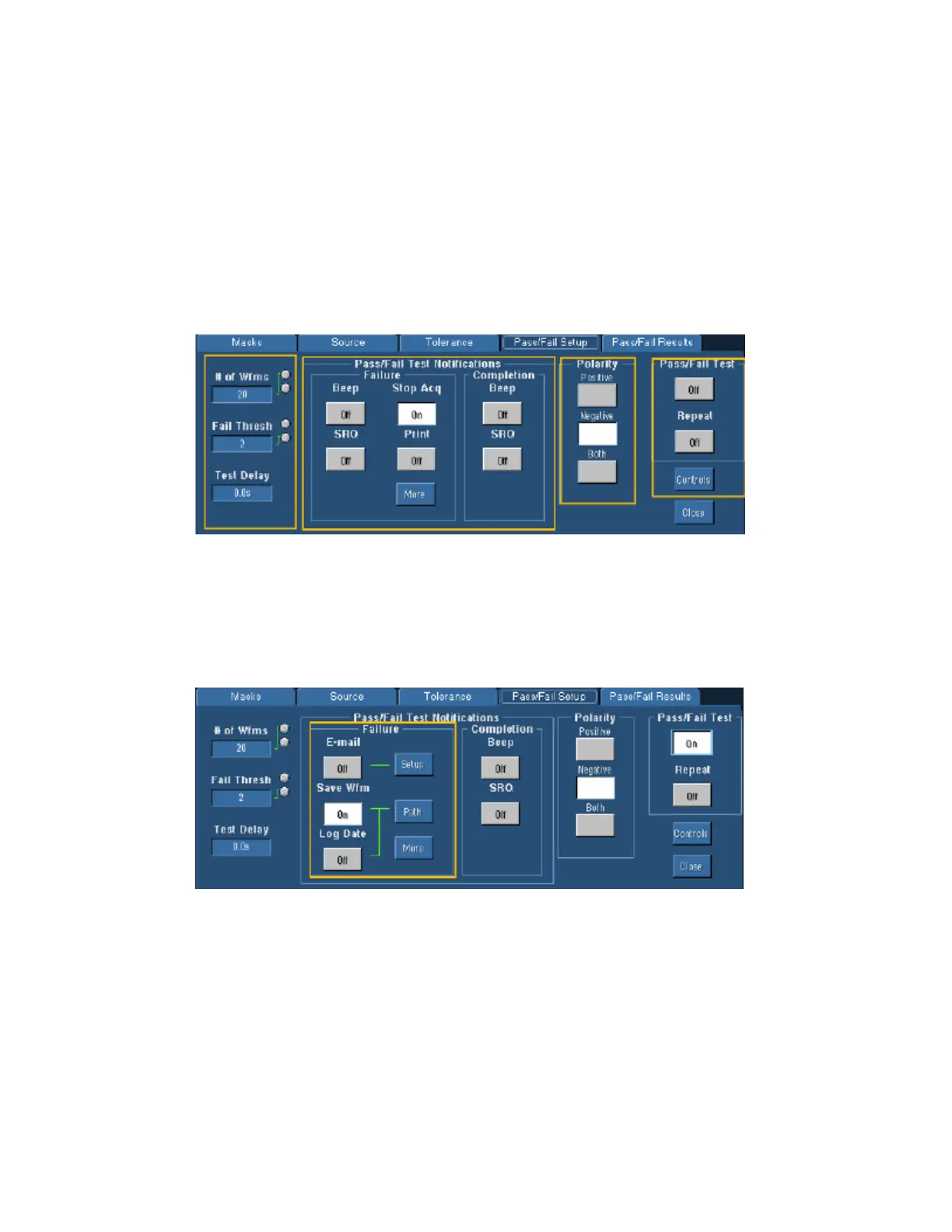

Mask Pass/Fail Setup Control Window
To access this control window, select Pass/Fail Setup…from the Masks menu.
Overview
Use this control window to set the parameters for passing or failing the mask test, to set the test
notification mode, to select the polarity for testing, and whether to repeat the test.
Behavior
Clicking More will show a second control window of failure notifications. When More is clicked
in the window below, it will return you to the Pass/Fail Setup control window displayed above.
Use the More Pass/Fail Setup control window to save and/or log failed waveforms and to enable
E-mail on mask failure.
More Pass/Fail Setup Control Window
To Next Page
