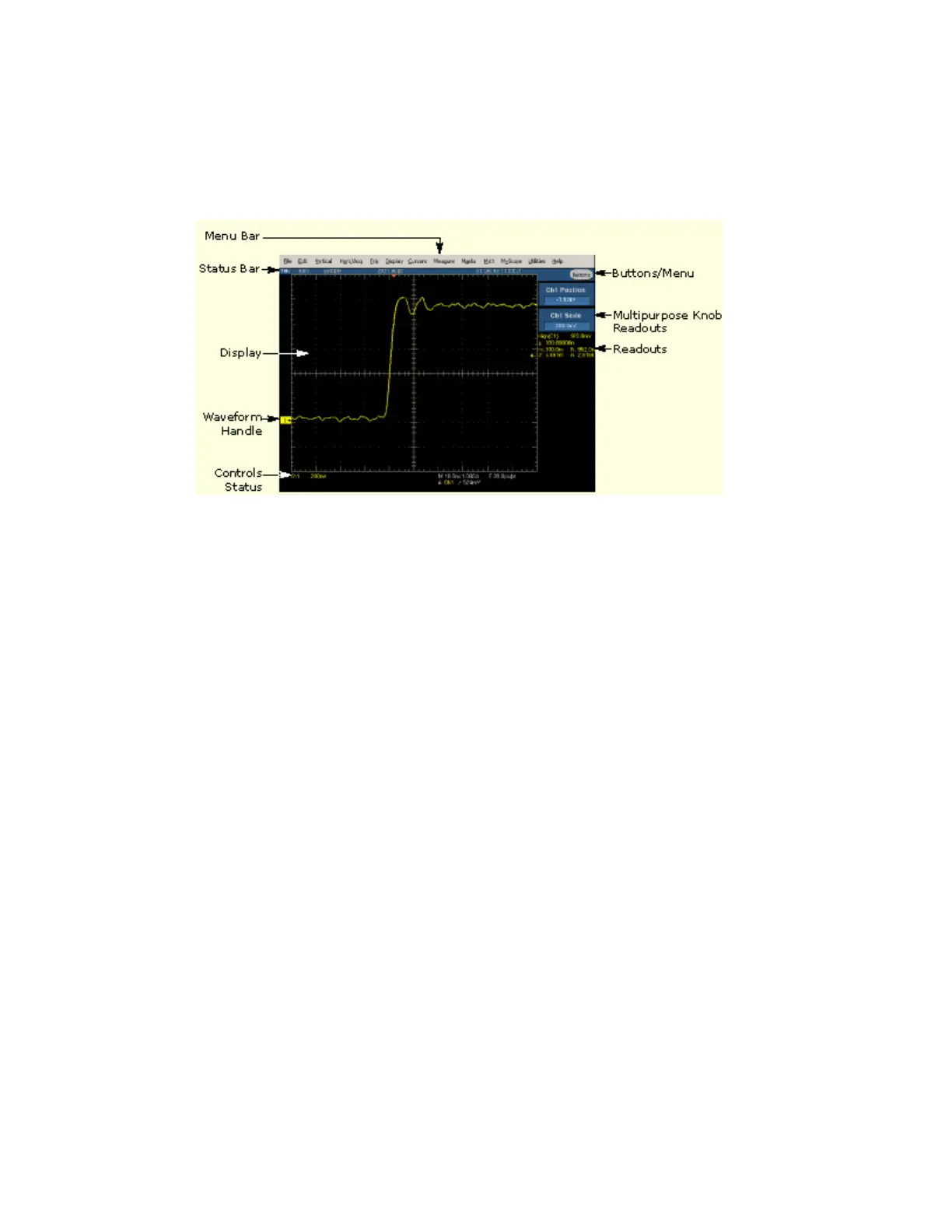

User Interface Map

See the figure below for a description of the elements of the user interface. These elements

provide complete control of the instrument.
