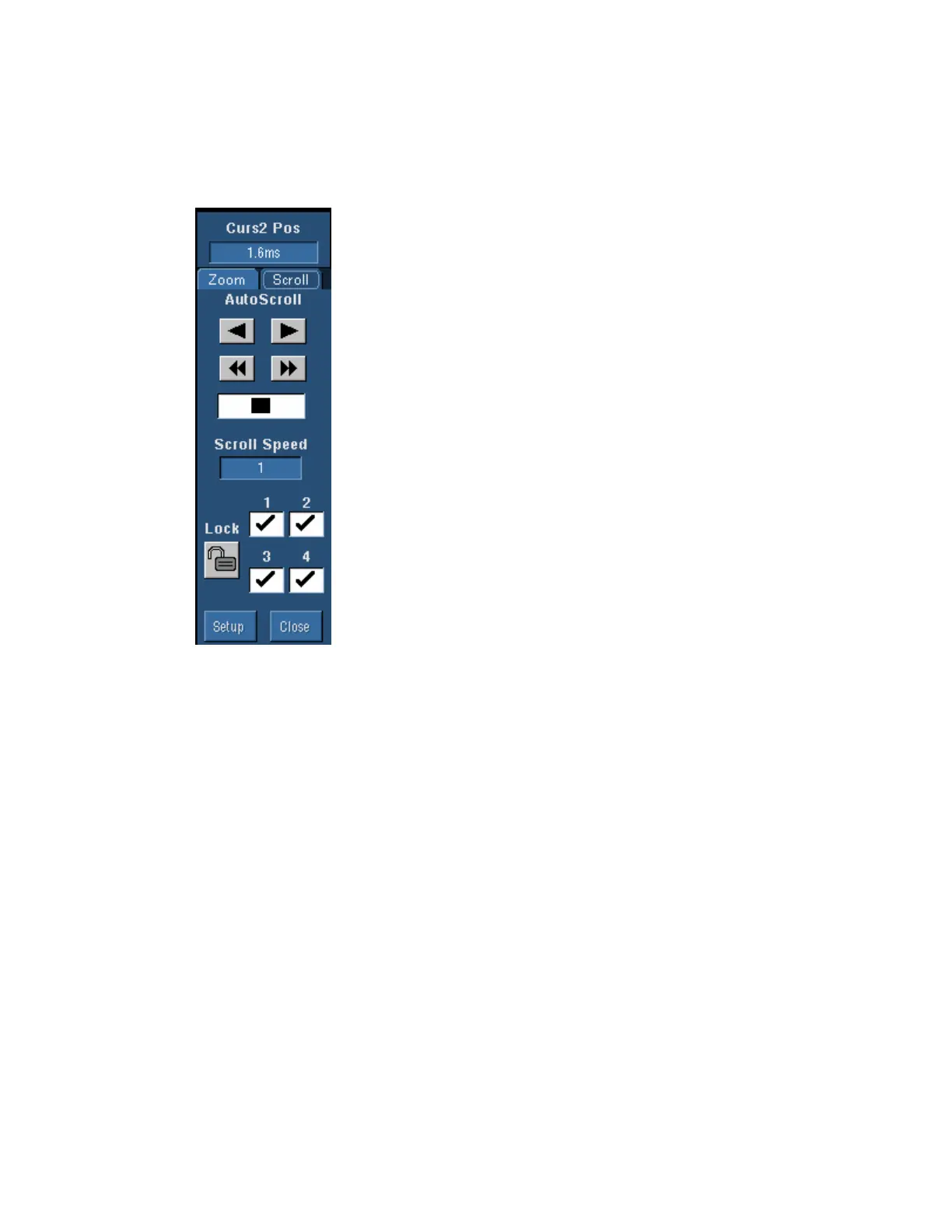

AutoScroll Control Window
Access this control window from the Vertical or Horiz/Acq menu Zoom Controls command, and then
click the Scroll tab.
Overview
Use the AutoScroll control window to set the scroll speed and lock
zoomed areas together.
To Use
To scroll a single zoomed area, select the zoom area (1-4), and then
click an Auto Scroll button. You can also set the scroll speed. To scroll
multiple zoomed areas simultaneously, click Lock, and then click the
zoomed areas (1-4) you want to scroll through. This locks the zoomed
areas in their relative horizontal positions.
Behavior
If the zoom areas are unlocked, the Horizontal Position and Factor
controls affect only the selected zoom area. The Horizontal Position
and Factor will affect all zoom areas that are locked together, such that
a change to one zoom area will change the horizontal position and
factor of all the locked zoom areas.
