140
Use the Display menu Display Style submenu to directly access the style options.
Note
The Vectors and Intensified Samples selections are not available in the XY and XYZ Display
Formats.

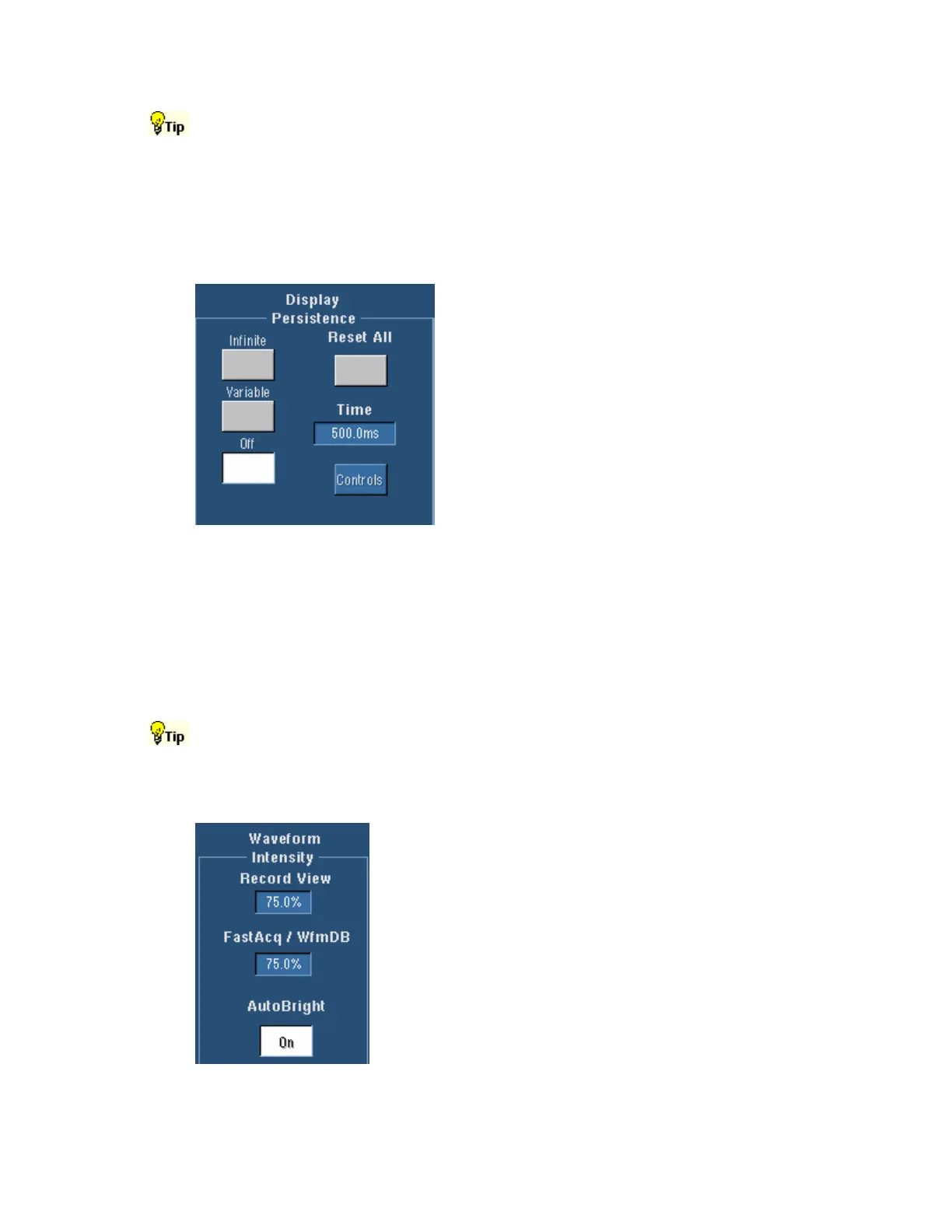

Display Persistence
To Use
Click one of the buttons to select the display
persistence. If you select Variable, click Time
and then use the multipurpose knobs to select the
persistence time. Click Reset All to clear the
persistence. Click Controls to activate the
Persistence Control window.
Behavior
Infinite persistence continuously accumulates record points on the waveform until you change one
of the acquisition display settings. Use infinite persistence for displaying record points that may
occur outside the normal acquisition envelope.
Variable persistence accumulates record points on the waveform for a specified time interval.
Each record point decays independently according to the time interval.
If you click Off, waveform record points appear for the current acquisition only.
Use the Display menu Display Persistence submenu or right-click in the graticule and select
Display Persistence from the shortcut menu to directly access the persistence options.
Waveform Intensity
To Use
Click the Autobright button to turn the autobright feature on
and off. You can also use the front-panel Intensity knob or the
multipurpose knobs to manually adjust the display intensity.
Click the Record View text box to adjust the intensity of live
waveforms, except when using Fast Acquisition or Waveform
Database acquisition mode.
Click the FastAcq/WfmDB text box to adjust the intensity of
live waveforms when using Fast Acquisition or Waveform
Database acquisition mode.
