XY Cursor
Readout
Cursor Type Display
Format
Cursor Position
Ratio Waveform
and Screen
XY Shown as rectangular coordinates
and the Y vertical value is divided
by the X vertical value.
Cursors Using XY Display Format

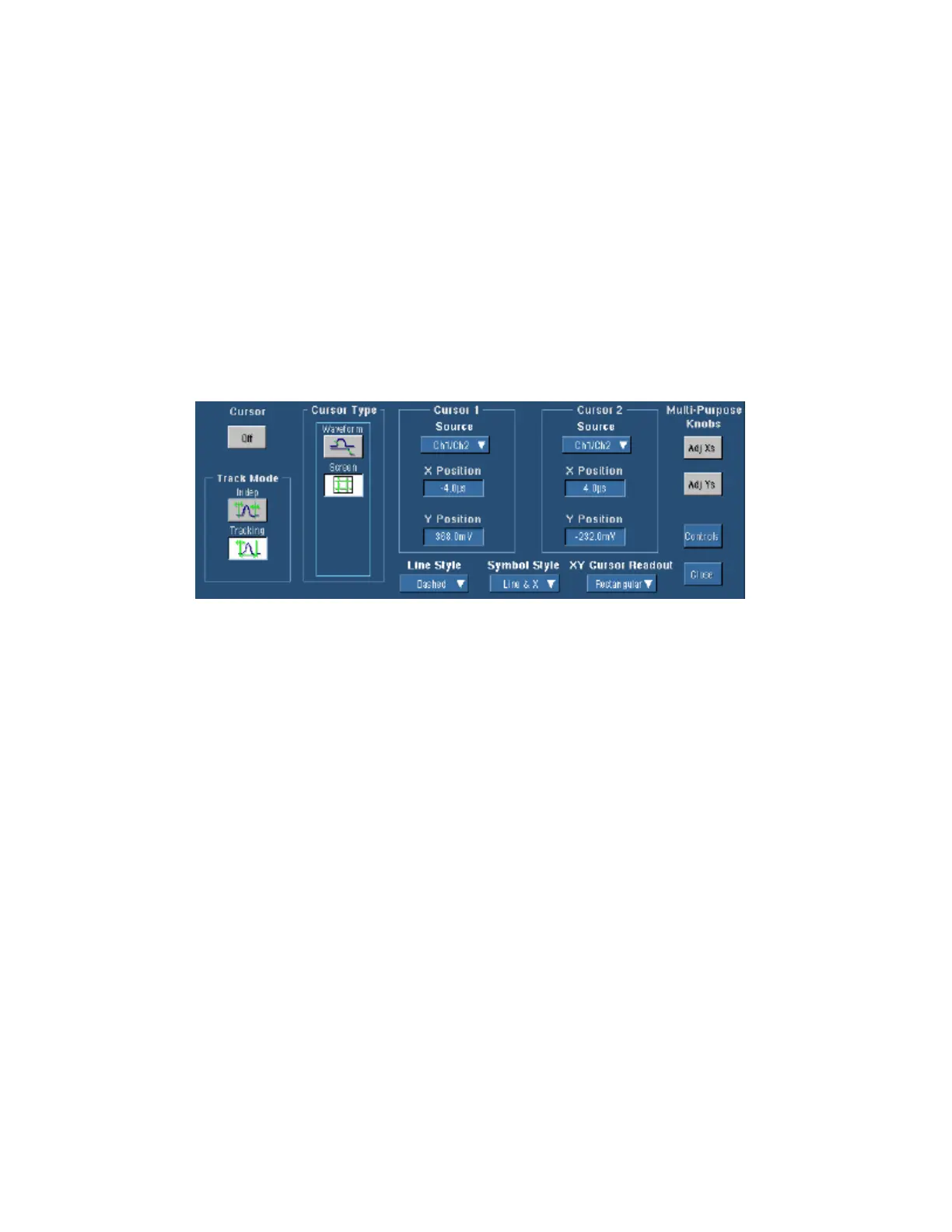

Access this control window from the Cursors menu Cursor Setup command. The Cursor Setup control
window varies depending on the display format.
Overview
Use these controls to set the cursor parameters when you are using XY display format.
To Use
Select the readout format from the XY Readout drop-down list.
Behavior
When you are using XY display format, only Waveform and Screen cursors are available. If you
change the display format to XY when H Bar cursors are enabled, the cursor type will change to
Screen. In normal acquisition mode, changing the display format to XY when V Bar cursors are
enabled, changes the cursor type to Waveform. In FastAcq acquisition mode, changing the display
format to XY when V Bar cursors are enabled, changes the cursor type to Screen.
If you change the display format from XY to YT when Screen cursors are enabled, the cursor type
is changed to H Bars.
XY Cursor Readouts only appear when you are using XY display format. Rectangular XY
readouts are the default.
Rectangular shows the cursor readouts as rectangular coordinate positions. Waveform cursors
display nine rectangular readouts (∆X, ∆Y, ∆t, X1, X2, Y1, Y2, t1, and t2). Screen cursors display
six readouts (∆X, ∆Y, X1, X2, Y1, and Y2).
Polar shows the cursor position as polar coordinate positions. Waveform cursors display nine
polar readouts (∆r, ∆0, ∆t, r1, r2, 01, 02, t1, and t2). Screen cursors display six polar readouts (∆r,
∆0, r1, r2, 01, and 02).
Product shows the cursor position as rectangular coordinates and the X vertical value is multiplied
by the Y vertical value. Waveform cursors display six product readouts (∆X x ∆Y, X1 x Y1, X2 x
