Operating basics
VERSION INFO (H
/W). Displays the hardware version of the mainframe (CPU),
the FPGA (Frame), and the Front Panel board (FP). Use the left (◄)orright(►)
arrow button to select the module for which you want to display the hardware
version.

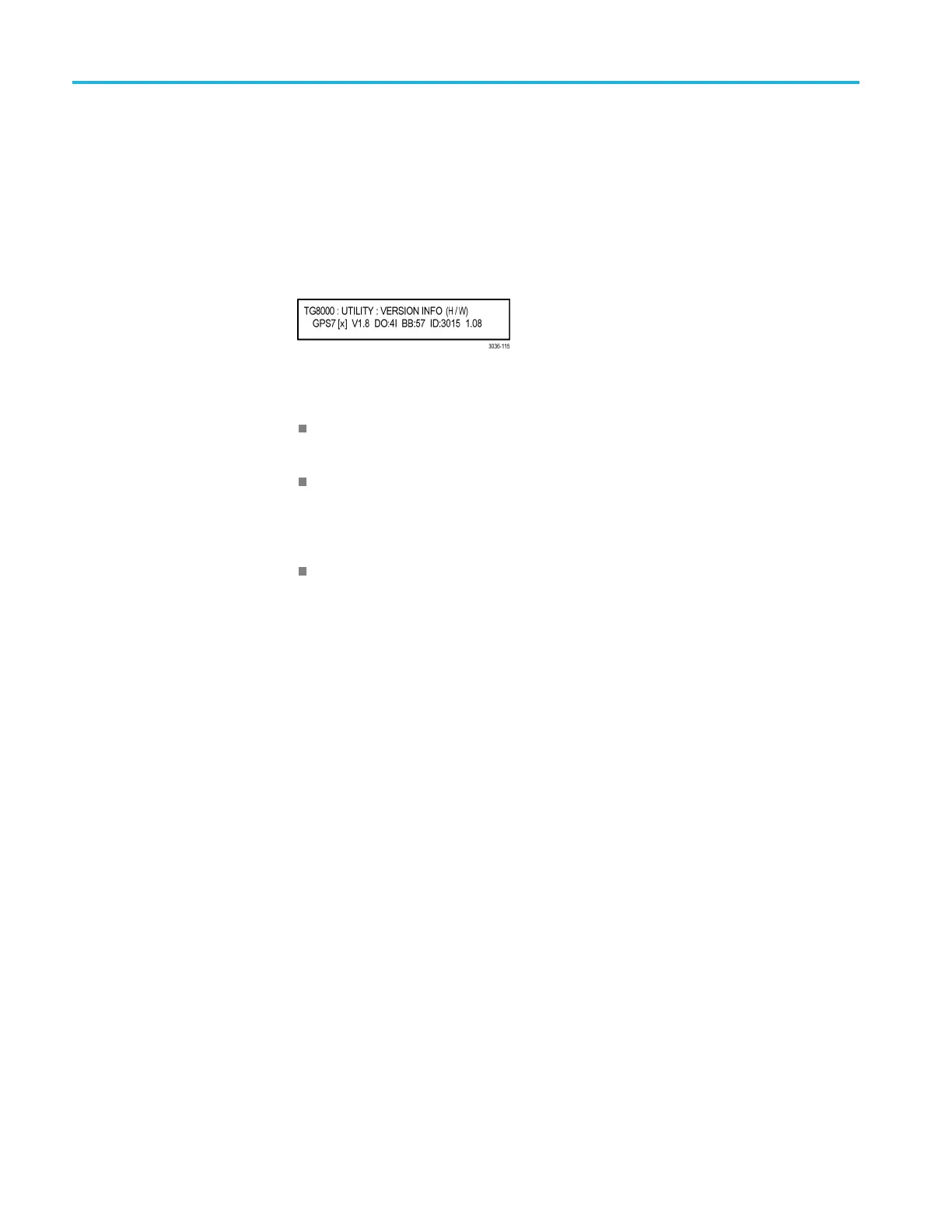

When a GPS7 module is installed, the hardware version display includes the GPS
receiver module ID code and the firmware version number installed on the GPS
receiver module (1.08 in the image below).
The ID value in the above readout represents the hardware version of the GPS
receiver. The possible values are:
3002. This value indicates that the receiver supports GPS signals only. This
receiver was replaced by the 3015 receiver.
3015. This value indicates that the receiver supports GPS and GLONASS
signals. This receiver was replaced by the 3023 receiver. There are some
reported limitations with this receiver. See the TG8000 Release Notes for
more information.
3023. This value indicates that the receiver supports GPS and GLONASS
signals.
VERSION INFO (F/W). Displays the firmware version number of the mainframe
and the date and time of the firmware build. The date and time are in the format
<month, date, time, year>.
OPTIONS. This menu item is available only if an SDI7 module is installed in the
ma
inframe. Displays the status of whether Option 3G and/or DBT is enabled or
not: SDI7[slot number] None is displayed if no software options are enabled; 3G
and/or DBT is displayed if Option 3G and/or DBT is enabled.
If more than one SDI7 module is installed in the mainframe, use the left (◄)or
right (►) arrow button to display the option status of another SDI7 module.
To view the module ID and to enable Option 3G and/or DBT, select this menu
item, and then press the ENTER button to access the OPTIONS submenu. (See
page 2-35, OPTIONS submenu (SDI7 module only).)
2–30 TG8000 Multiformat Test Signal Generator User Manual
