AVG7 Analog Video Generator module
AVG7 module
VIDEO submenu
Usethismenuto
perform the following tasks:
Set the output channel configuration when a composite signal is being output.
Enable or disable the signal output of each channel.
Set whether a sync signal is multiplexed with the B and R signals when a
GBR signal is being output.
Use the up (▲)ordown(▼) arrow button to scroll through the menu. The
following
figure shows the VIDEO submenu.

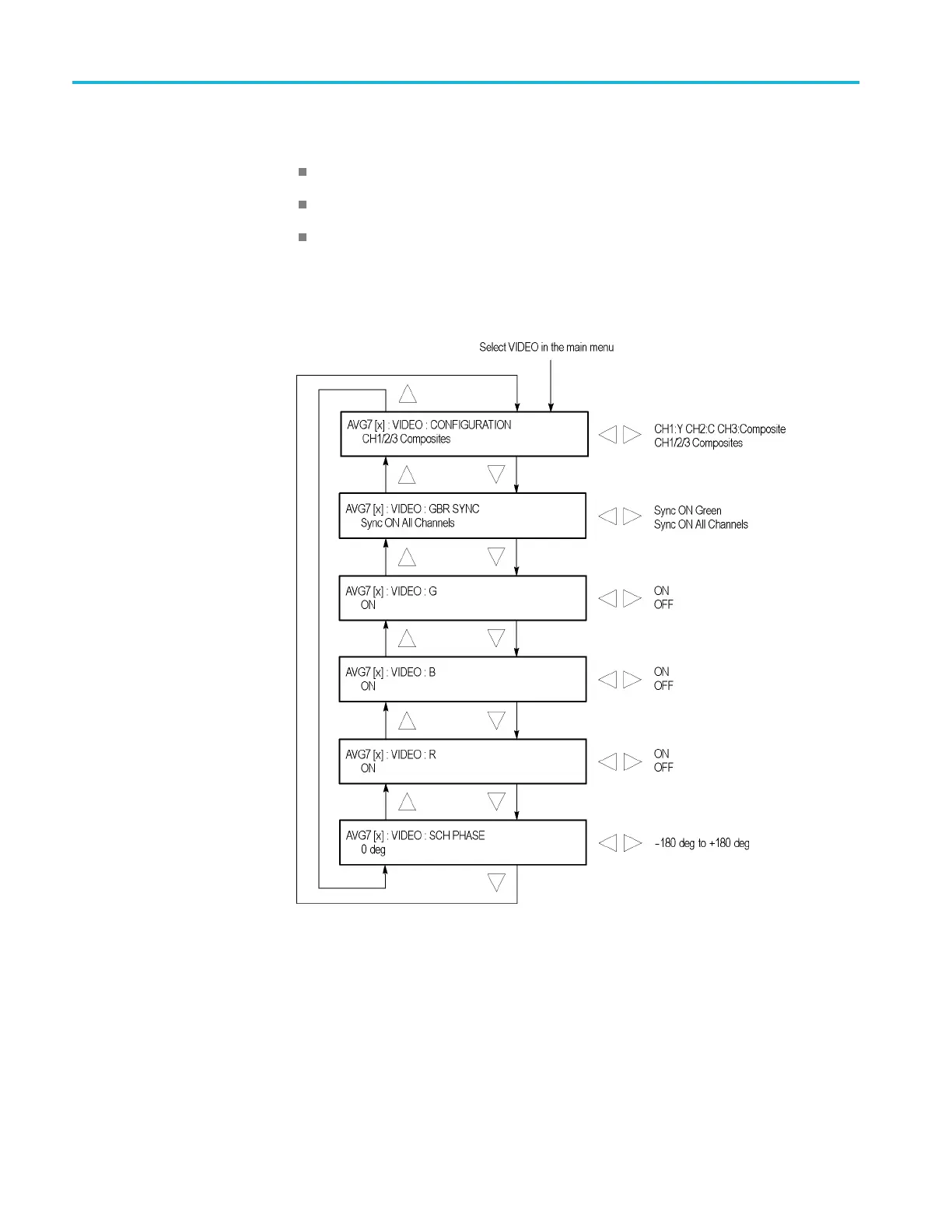

Figure 3-24: AVG7 module V IDEO submenu
3–44 TG8000 Multiformat Test Signal Generator User Manual
