AWVG7 Analog Wideband Video Generator module
Period. Sets th
e time interval between occurrences of the scrolling. Use the
left (◄)orright(►) arrow button to change the value. You can set the value
from 1 to 16 in 1-frame steps.
Random. Sets whether or not the picture scrolls randomly. Use the left (◄)or
right (►) arrow button to select between Disable and Enable.PresstheENTER
buttontoconfirm the selection.
AWVG7 module
OVERLAY submenu
Use this menu to select an item (logo, ID Text, or ci
rcle) to overlay on the output
test signal and to set the blinking mode for the overlay. Use the up (▲)or
down (▼) arrow button to scroll through the menu. The following figure shows
the OVERLAY submenu.

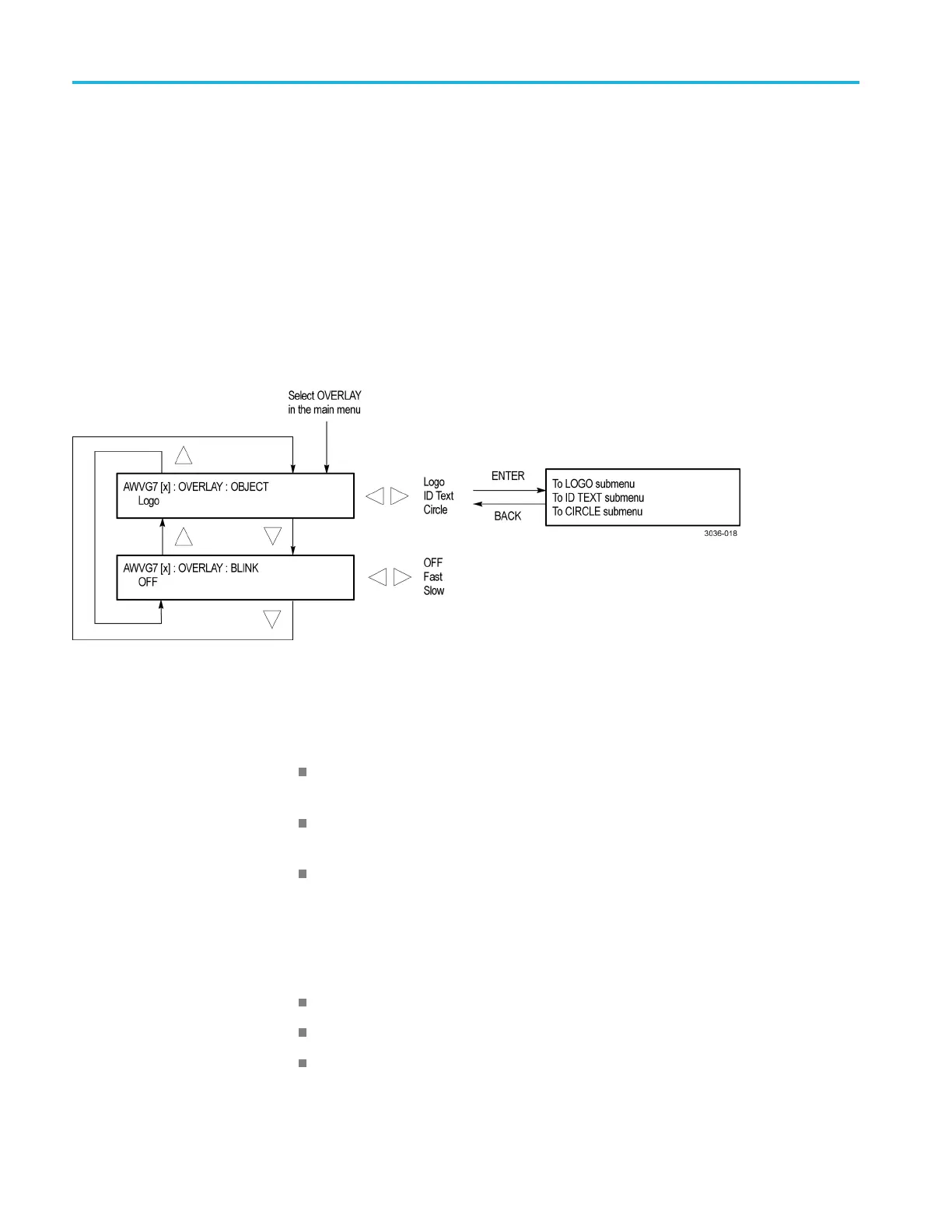

Figure 3 -29: AWVG7 module OVERLAY submenu
OBJECT. Selects an item to overlay on the output test signal. Use the left (◄)or
right (►) arrow button to select one of the following overlays, and then press the
ENTER button to access the submenu for setting the parameters of that overlay.
Logo: Opens the LOGO submenu where you can select a logo to overlay the
output signal in a specified position. (See page 3-55.)
ID Text: Opens the ID TEXT submenu where you can edit the text to overlay
the output signal in a specified position. (See page 3-56.)
Circle: Opens the CIRCLE submenu where you can specify a circle size and
position to overlay the output signal. (See page 3-58.)
BLINK. Sets the blinking mode for the enabled overlay. Use the left (◄)or
right (►) arrow but
ton to select one of the following blink modes, and then press
the ENTER buttontoconfirm the selection.
OFF: Turns off the blinking function of the overlay.
Fast: Sets the overlay to blink at approximately 0.5 second intervals.
Slow: Sets the overlay to blink at approximately 1.0 second intervals.
3–54 TG8000 Multiformat Test Signal Generator User Manual
