AWVG7 Analog Wideband Video Generator module
OVERLAY. Selec
ts an item (logo, text, or circle) to overlay on the output test
signal and sets the blinking mode for the overlay. Select this menu item, and then
press the ENTER button to access the OVERLAY submenu. (See page 3-54.)
TIMING. Sets the timing offset of the output signals relative to the internal
reference signal (frame reset signal). Select this menu item, and then press the
ENTER button to access the TIMING submenu. (See page 3-59.)
VIDEO. Sets whether or not a sync signal is mul
tiplexed with the B and R signal
when a GBR signal is being output and enables or disables the signal output from
CH 1, CH 2, and CH 3. Select this menu item, and then press the ENTER button
to access the VIDEO submenu. (See page 3-61.)
AWVG7 module
MOVING PICTURE
submenu
Use this menu to scroll the active picture area of the output signal up/down,
left/right, or randomly. Use the up (▲)ordown(▼) arrow button to scroll the

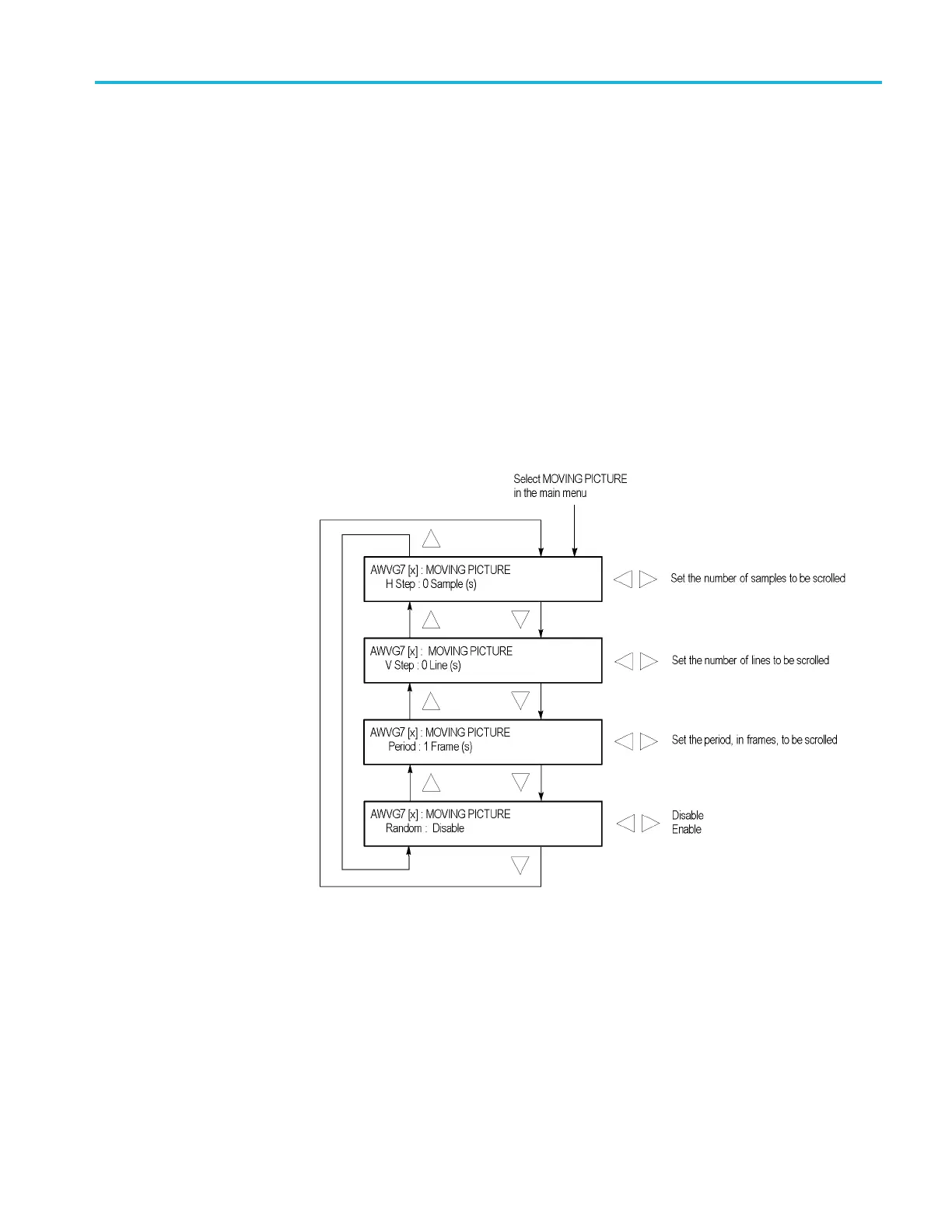

menu. The following figure shows the MOVING PICTURE submenu.
Figure 3-28: AWVG7 m odule MOVING PICTURE submenu
Hstep. Sets the number of samples to be scrolled per frame set in the Period
menu item. Use the left (◄)orright(►) arrow button to change the value. You
cansetthevaluefrom-60to+60in4-samplesteps.
Vstep. Sets the number of lines to be scrolled per frame set in the Period menu
item. Use the left (◄)orright(►) arrow button to cha nge the value. You can set
the value from -15 to +15 in 1-line steps.
TG8000 Multiformat Test Signal Generator User Manual 3–53
