DVG7 Digital Video Generator module
DVG7 module
MOVING PICTURE
submenu
Usethismenuto
scroll the active picture area of the serial digital video signal
up/down, left/right, or randomly. Use the up (▲)ordown(▼) arrow button to
scroll the menu. The following figure shows the MOVING PICTURE submenu.
Figure

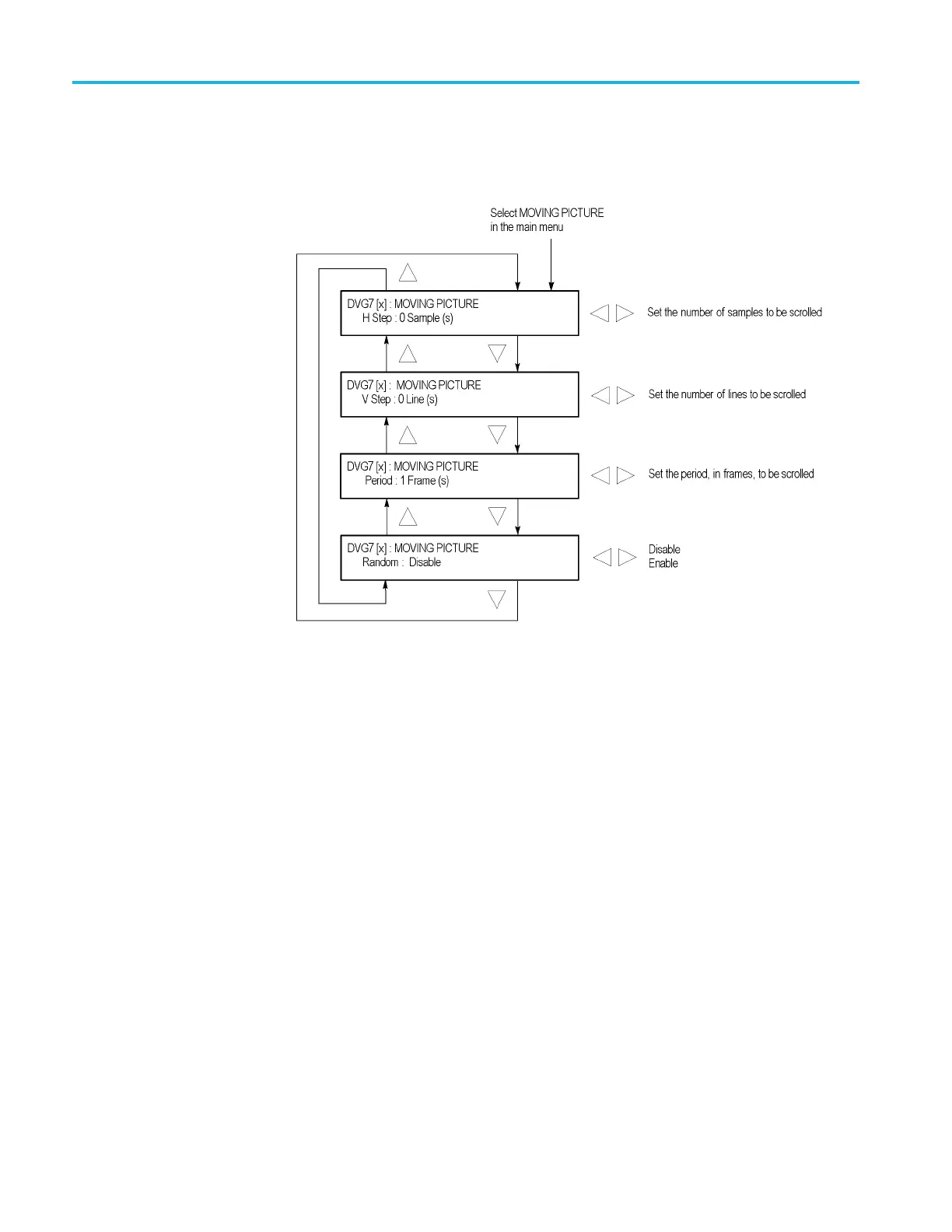

3-43: DVG7 module MOVING PICTURE submenu
Hstep. Sets the number of samples to be scrolled per frame set in the Period
menu item. Use the left (◄)orright(►) arrow button to change the value. You
can set the value from -252 to +252 in 4-sample steps.
Vstep. Sets the number of lines to be scrolled per frame set in the Period menu
item. Use the left (◄)orright(►) arrow button to change the value. You can set
the value from -252 to +252 in 1-line steps.
Period. Sets the time interval between occurrences of the scrolling. Use the left
(◄
)orright(►) arrow button to change the value. You can set the value from 1
to 16 in 1-frame steps.
Random. Sets whether or not the picture scrolls randomly. Use the left (◄)or
right (►) arrow button to select between Disable and Enable.PresstheENTER
buttontoconfirm the selection.
3–82 TG8000 Multiformat Test Signal Generator User Manual
