DVG7 Digital Video Generator module
DVG7 module
LOGO submenu
Use this menu to
select a logo to overlay on the output test signal and to set the
display position o f the logo. Use the up (▲)ordown(▼) arrow button to scroll
through the menu. The following fi gure shows the LOGO submenu.
NOTE. To display a logo using the LOGO submenu, you need to create a logo file
(.lgo) and download it to the LOGO folder of the module. Refer to the TG8000
PC Tools Technical Reference for detailed information about how to create a logo
file and down
load it to the TG8000.

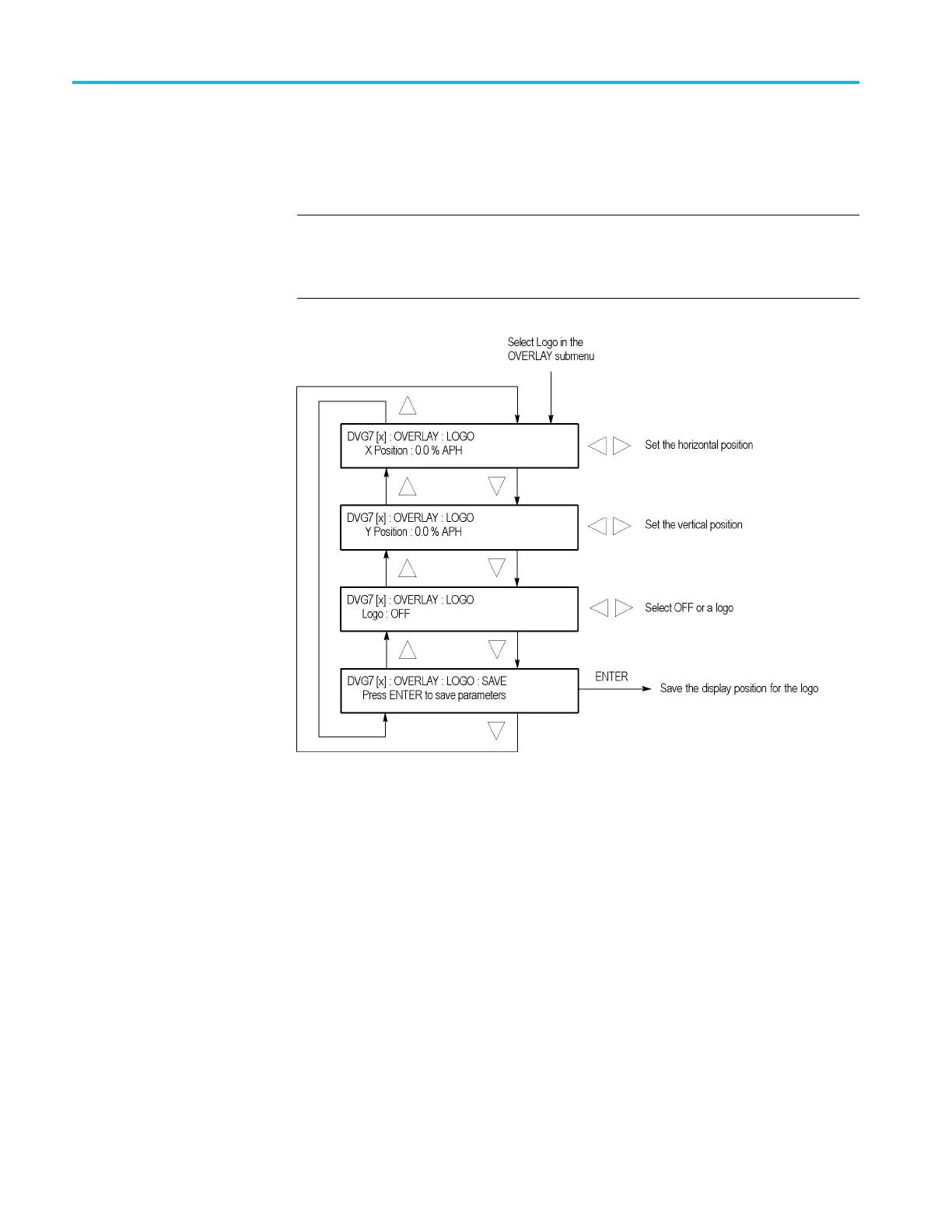

Figure 3-45: DVG7 module LOGO submenu
X position. Sets the horizontal position of the logo. The position is set as a
percentage of active picture width. Use the left (◄)orright(►) arrow button to
change the position. You can set the value from -100.0% to 0.0% in 0.1% s teps.
Y position. Sets the vertical position of the logo. The position is set as a
percentage of active picture height. Use the left (◄)orright(►) arrow button to
change the position. You can set the value from -10
0.0% to 0.0% in 0.1% steps.
Logo. Selects the logo you want to display. Use the left (◄)orright(►) arrow
button to select OFF or a logo file name. Press the ENTER button confirm the
selection. When you select OFF, the logo overlay is disabled.
SAVE. Saves the display position for the logo to the logo file. Press the ENTER
button to save the current settings.
3–84 TG8000 Multiformat Test Signal Generator User Manual
