SDI7 Dual Channel SD/HD/3G SDI Video Generator module
DIAGNOSTICS. A
llows access to the outputs of several diagnostics, shows
operation parameters for the module, and allows you to clear the counts of CRC
errors that are d etected in the input signal. This menu provides status information
only and does not affect operating behavior. Select this menu item, and then press
the ENTER button to enter the DIAGNOSTICS submenu. (See page 3-333,
SDI7 module DIAGNOSTICS submenu.)
CALIBRATION. Provides a variety of special signals to help measure amplitude
and rise time, and allows you to adjust serial output amplitude. This menu is
accessible in factory mode only. (See page 3-336, SDI7 module CALIBRATION
submenu.)
SDI7 module
STAT US menu
Displays the output signal format, and output sample structure.
The following figure shows an example STATUS display with Option 3G enabled.

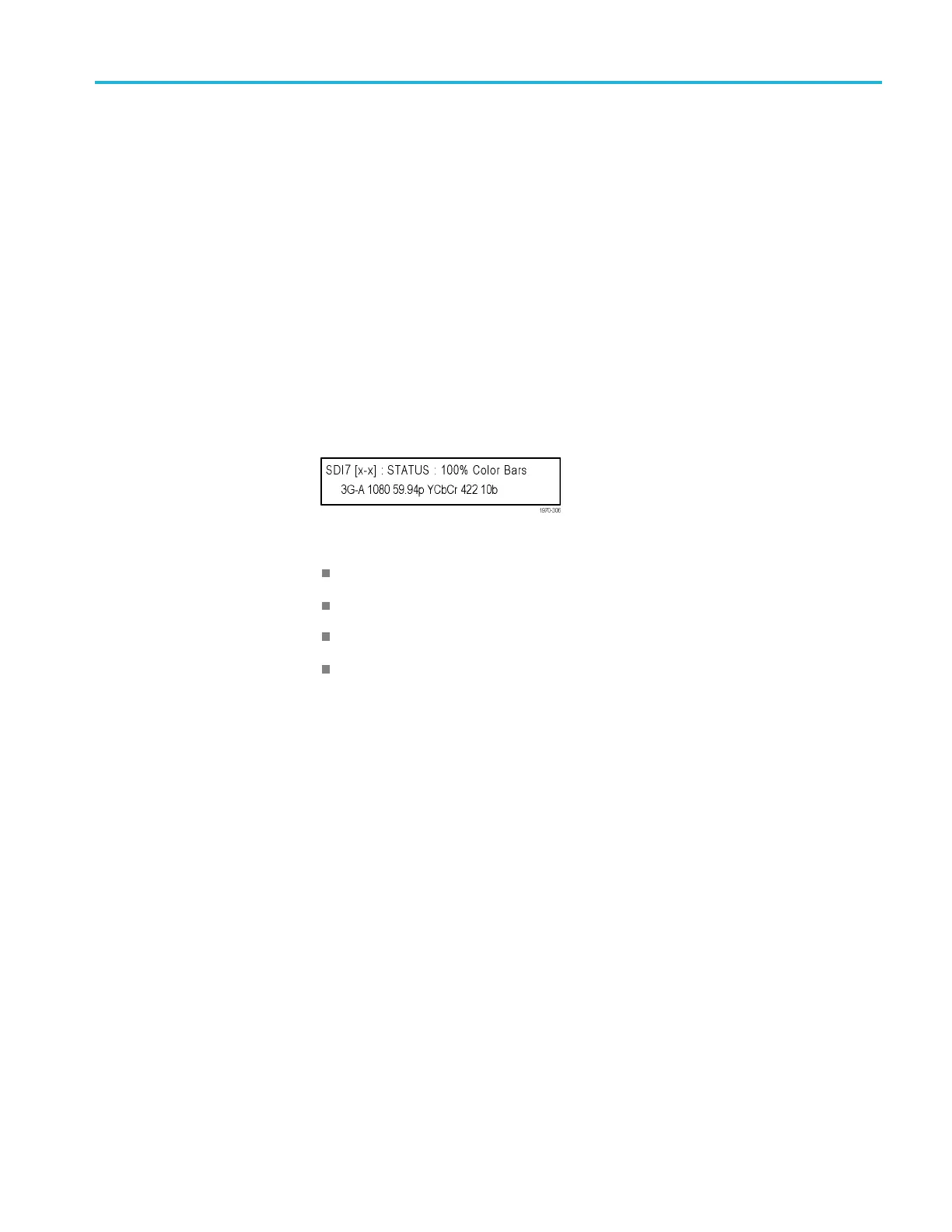

Figure 3-123: SDI7 module STATUS menu in Generator mode
100% Color Bars: Indicates the name of the signa l currently being g enerated.
3G-A: Indicates the 3 Gb/s signal and the level currently being generated.
1080 59.94p: Indicates the output format.
YCb
Cr4:2:210bits:Indicates the output sampling structure.
TG8000 Multiformat Test Signal Generator User Manual 3–289
