SDI7 Dual Channel SD/HD/3G SDI Video Generator module
SDI7 module
CIRCLE submenu
Usethismenuto
overlay a circle on the output test signal and set the display
position of the circle. Use the up (▲)ordown(▼) arrow button to c hange the
menu items. The following figure shows the CIRCLE submenu.

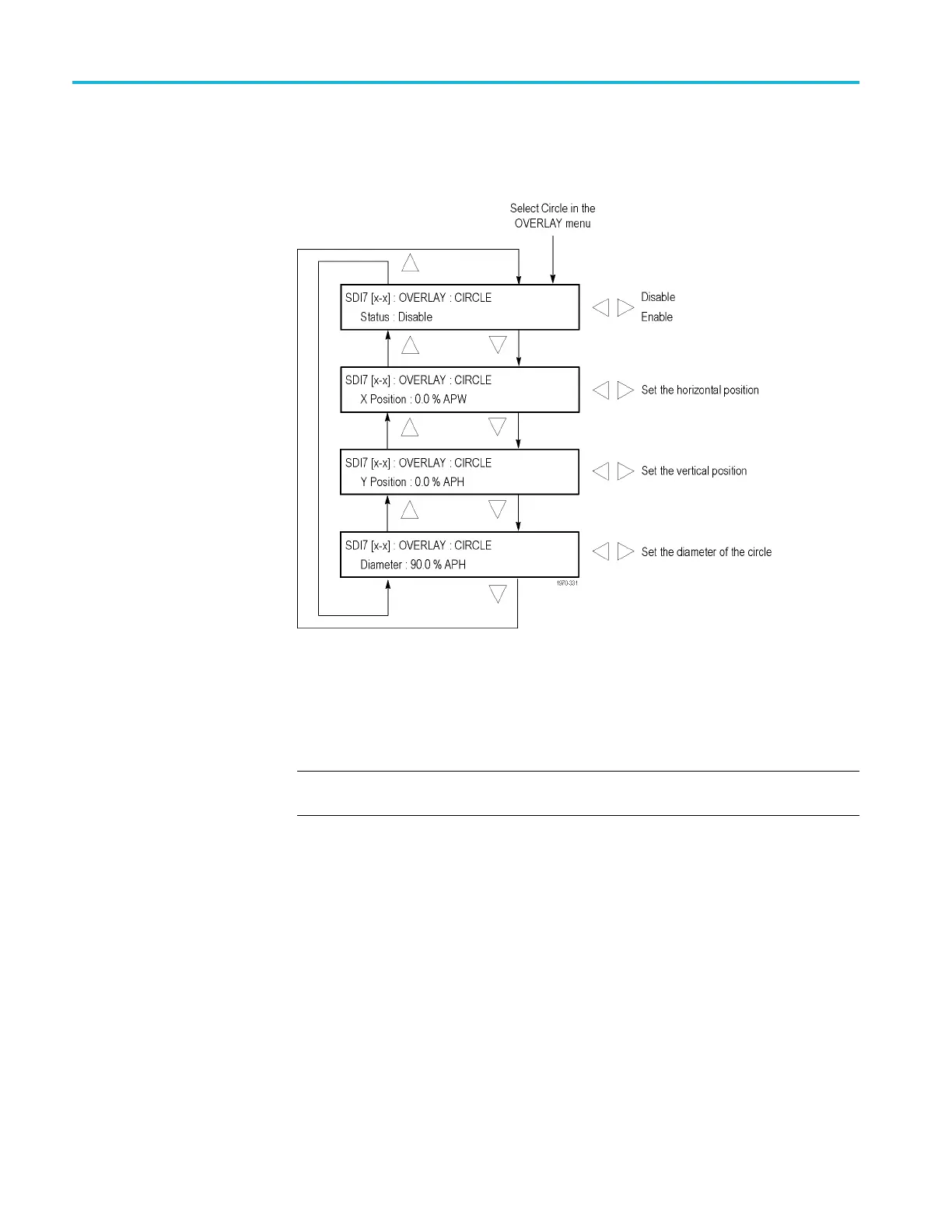

Figure 3-129: SDI7 module CIRCLE submenu
Status. Enables or disables the circle overlay. Use the left (◄)orright(►)
arrow button to select between Enable and Disable. Press the ENTER button to
confirm the selection.
NOTE. The position of the circle overlay is referenced from the center of the
active picture.
X P osition. Sets the horizontal position of the circle. The position is set as a
percentage of active picture width. Use the left (◄)orright(►) arrow button to
change the position. You can set the value from -50.0% to 50.0% in 0.1% steps.
Y Position. Sets the vertical position of the circle. The position is set as a
percentage of active picture height. Use the left (◄)orright(►) arrow button to
change the position. You can set the value from -50.0% to 50.0% in 0.1% steps.
Diameter. Sets the diameter of the circle. The diamete r is set as a percentage of
active picture height. Use the left (◄)orright(►) arrow button to change the
value. You can set the value from 0.0% to 100.0% in 0.1% steps.
3–300 TG8000 Multiformat Test Signal Generator User Manual
