Getting started
Genlock functi
on.

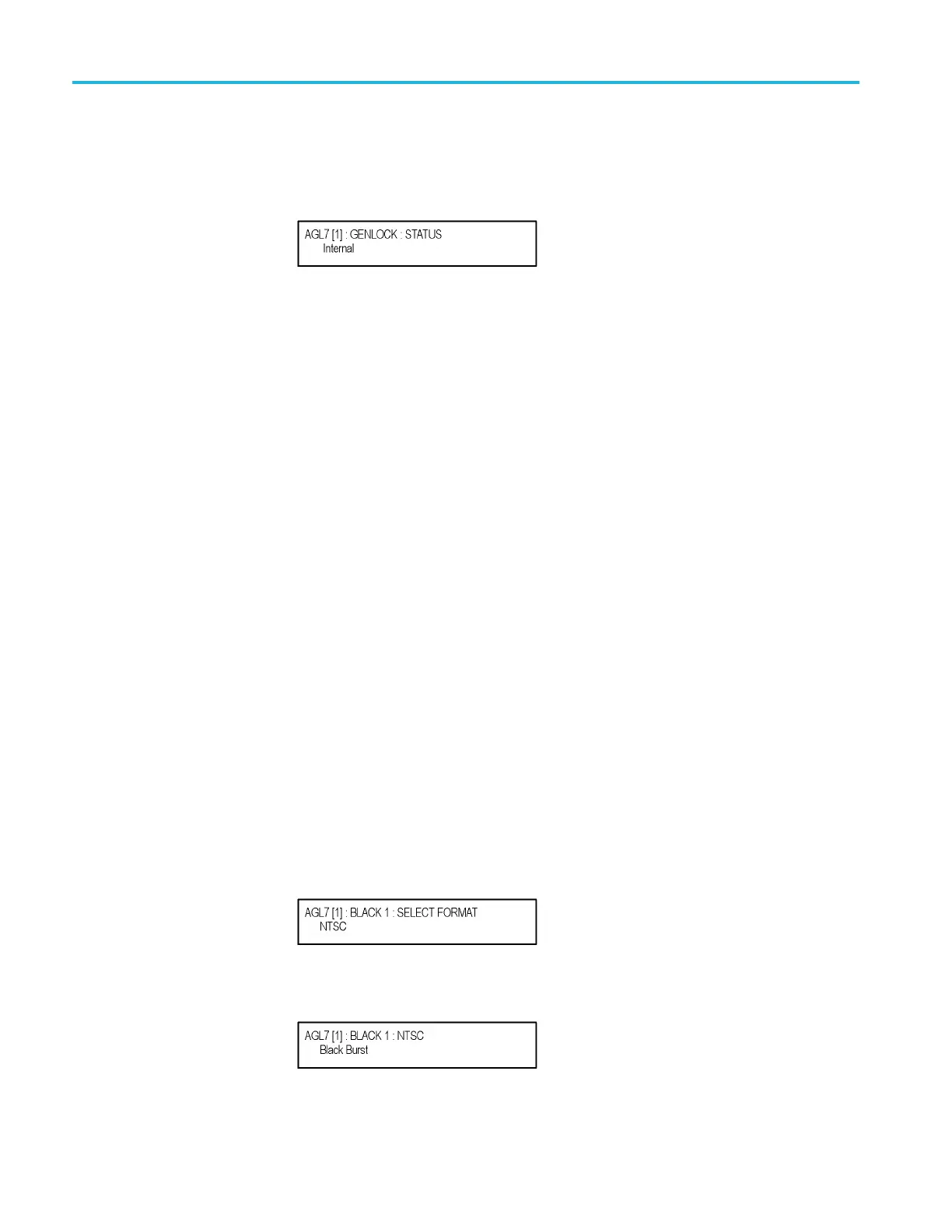

5. Press the front-panel MODULE button until the AGL7 main menu shown
below appears .
6. Press the up (▲)ordown(▼) arrow button to select GENLOCK from the
main menu and then press the ENTER button.
7. Pre
ss the left (◄) or right (►) arrow button to select Internal and then press
the ENTER button.
8. Check that INT.REF indicator at the right side of the front panel lights. This
shows that the instrument is using the internal reference signal.
9. Connect one of the TV signal g enerators output connectors to the AGL7 REF
connector, using the 75 Ω BNC cable. Terminate the other side of the REF
connector with the 75 Ω termination.
10. Press the left (◄)orright(►) arrow button to select the menu item
corresponding to the input signal and then press the ENTER button.
11. Check that EXT.REF indicator at the right side of the front panel lights. This
shows that the instrument is locked to the input signal.
12. Disconnec t the BNC cable from the REF connector.
13. Check that EXT.REF indicator at the right side of the front panel blinks.
This shows that the external reference signal i
s not being input to the REF
connector.
Black signal outputs.
14. Press the front-panel BACK button.
15. Press the up (▲)ordown(▼)arrowbuttontoselectSELECT OUTPUT
from the main menu.
16. Press the left (◄)orright(►)arrowbuttontoselectBLACK 1,thenpress
the ENTER button. The SELECT FORMAT submenu shown below appears.
17. Press the left ( ◄)orright(►) arrow button to select NTSC or PAL for your
waveform monitor and then press the ENTER button.
1–18 TG8000 Multiformat Test Signal Generator User Manual
