In cases where beam width is an issue, you can position multiple radiators on a cluster. The loop
through the different radiators in the cluster should be done with a short cable (1m).
For rooms where the rearrangement can change or rooms where seats are positioned concentrically,
radiators should be present in every corner of the room.

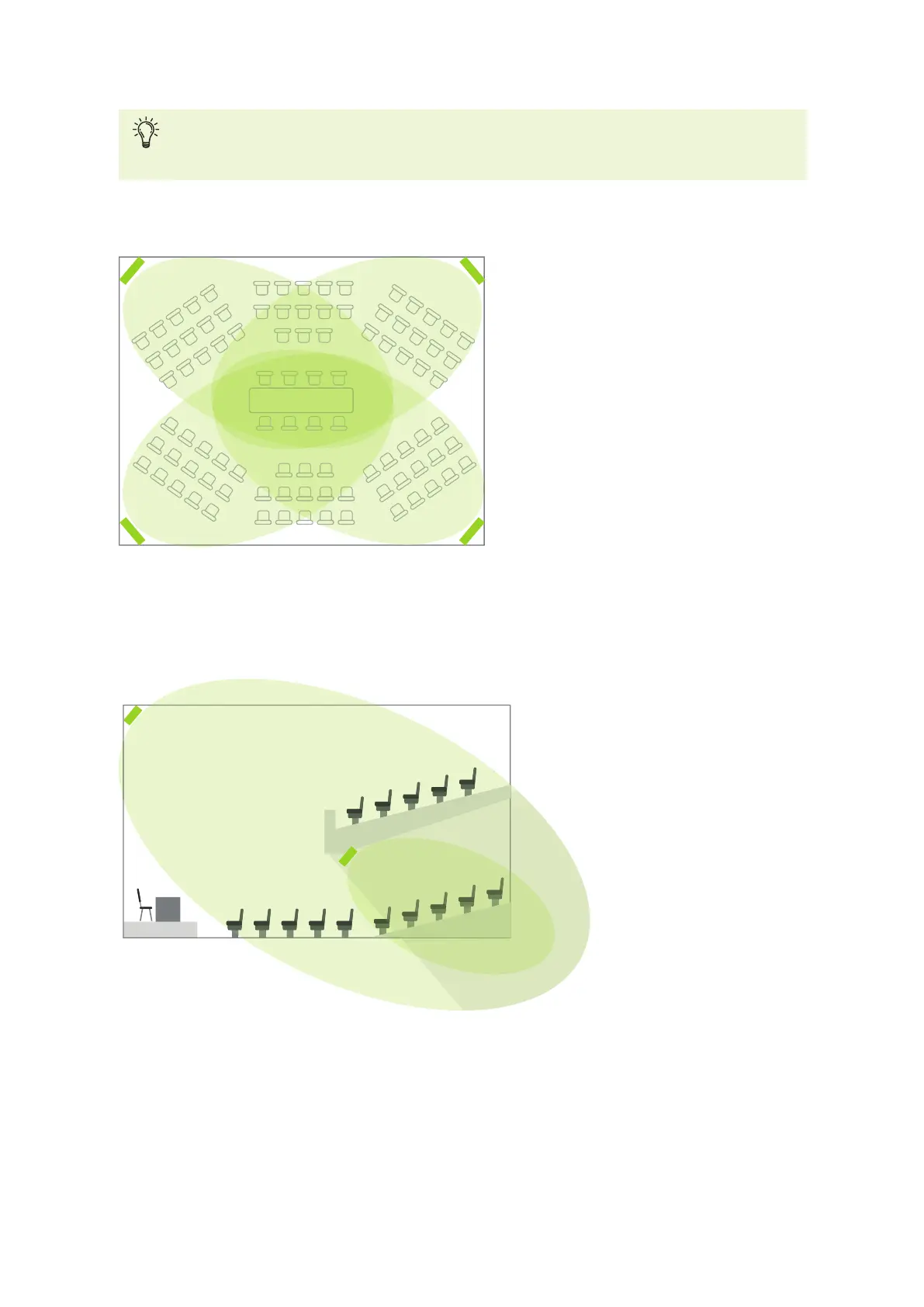

Figure 1-13 Position of the radiators in a concentrically organized room
In case of rooms with a balcony, an additional radiator needs to be present under the balcony to ensure the
transmission of the signal to the seats under the balcony.
Figure 1-14 Radiator setup for room with a balcony. The balcony blocks all radiation therefore you should place
an additional radiator below the balcony to extend the signal to the people sitting below the balcony.
