POSITION THE LINGUA IR
COMPONENTS
Lingua IR Radiator Position
The position of the radiators is very important for a successful set up. Depending on the layout of your room,
the radiators need to be set up in different places of the room. Below you can find some examples of
different setups and the position of the radiators.
To see the effect of the position and angle of all radiator on the footprint of the radiators and the IR
reception in the room, use the calculator tool. You can find the calculator on Sharefile in the folder
TCS-Marketing > Public > Technical Documentation > Calculators.
In the first example all seats are pointing towards the stage in the same direction. In order for everyone to
receive the infrared signal, you need to place two radiators in two corners of the room to cover the entire
room (by reflected and direct radiation).
When the length of the cables from the transmitter to the radiators differs, then this difference
should be corrected using the automatic delay line calibration.

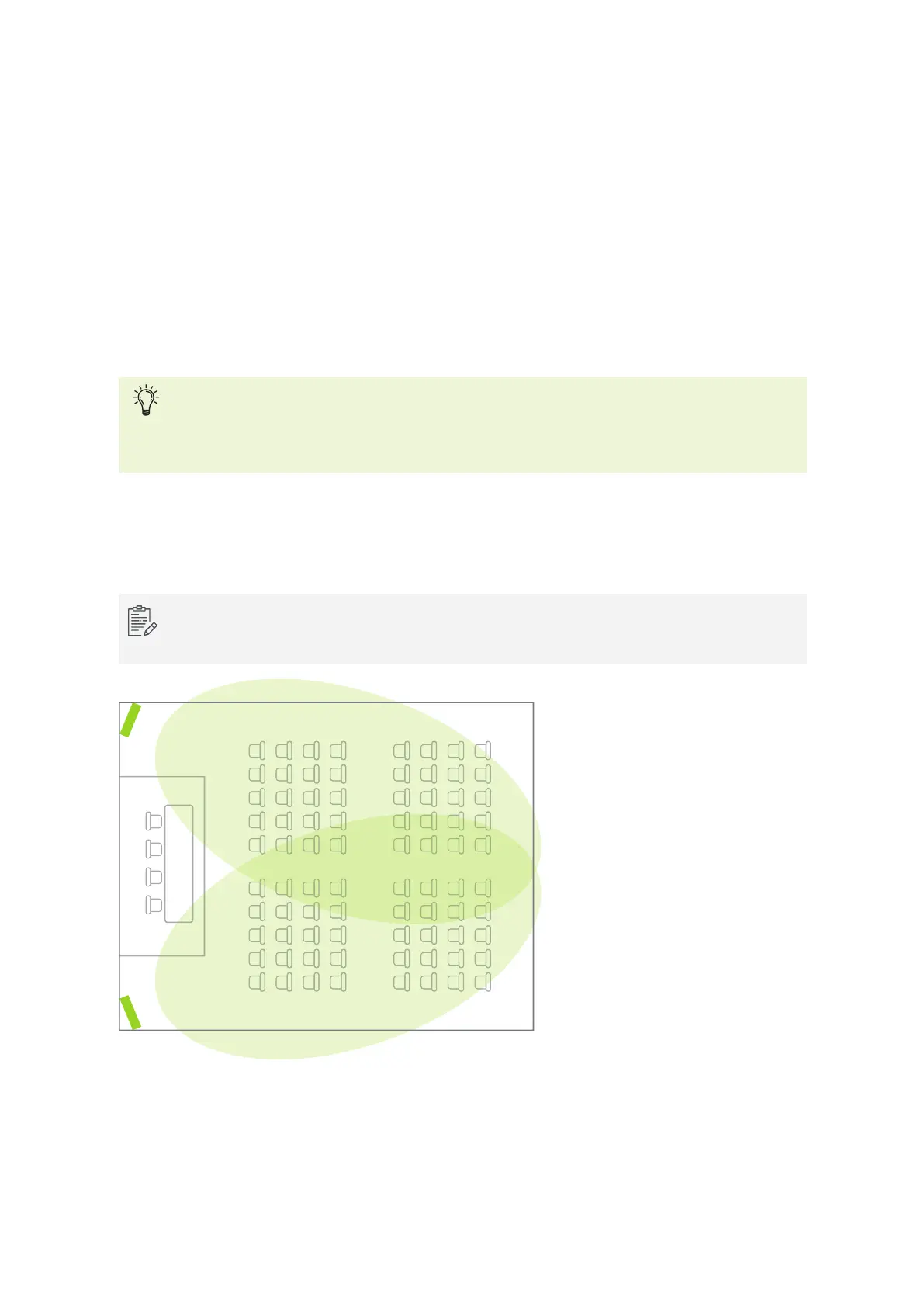

Figure 1-12 Conference setup with all chairs pointing in the same direction
PO SITIO N THE LING UA IR CO MPO NENTS 38
