Adjust Orientation Of Mount
PITCH ADJUSTMENT
1. Adjust pitch to desired tilt position. (See Figure 1-22 )
2. Adjust pitch tension screw to change the adjustment tension. (See Figure 1-22 )
PIVOT ADJUSTMENT
3. Adjust pivot position as desired. (See Figure 1-22 )
4. Use 3/16” hex key (Q) to adjust pivot point tension screws to change pivot adjustment tension. (See
Figure 1-22 )
Pitch
Pivot Point
Tension
Tension
1
3

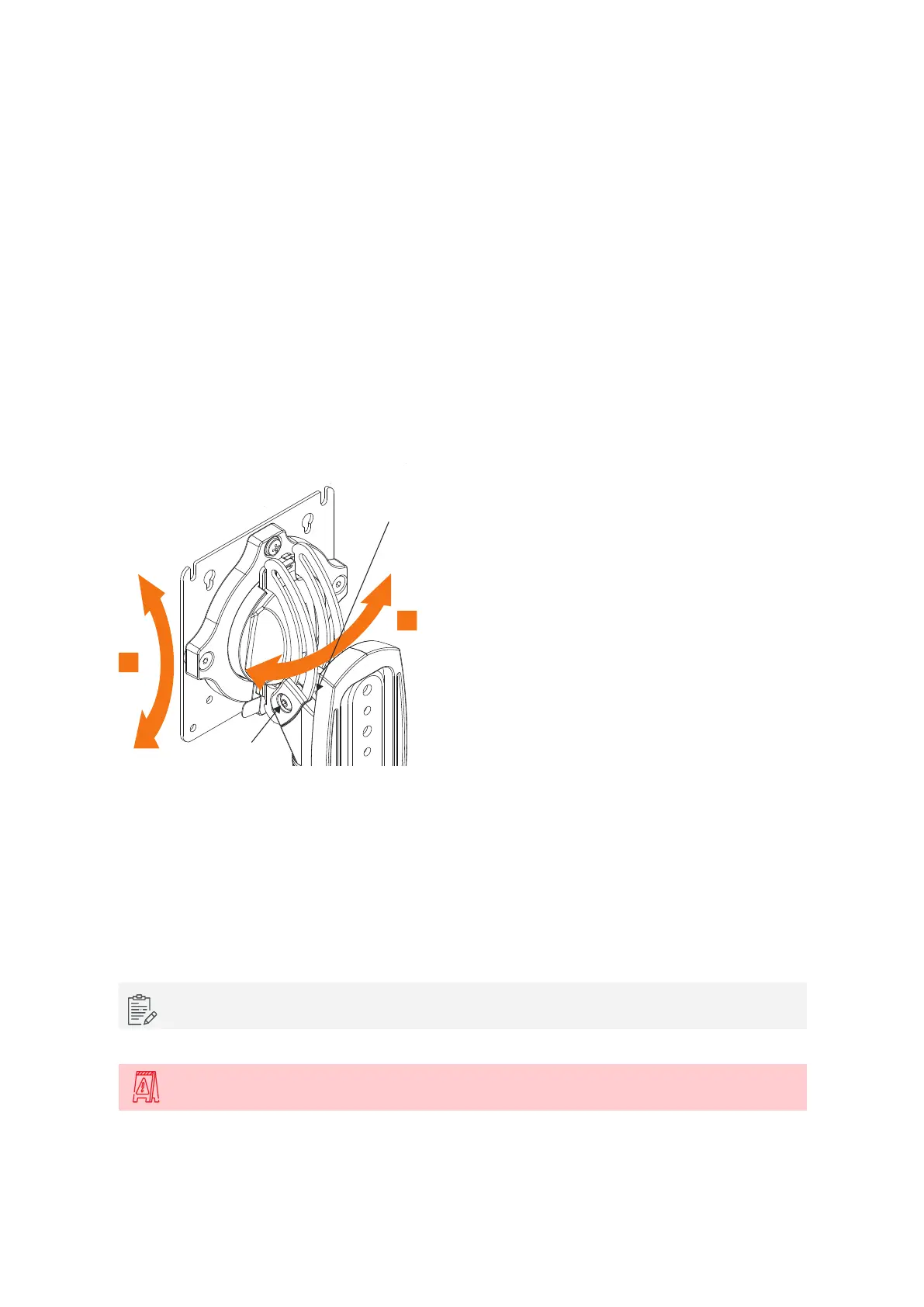

Figure 1-22 How to change the orientation of the Lingua RAD mount
Remove From Mount
Remove the radiator from the mount by pulling the quick release lever and sliding the faceplate off the
mount. (See Figure 1-23 ).
Only remove the radiator from mount when the radiator can be lifted up from the mount!
DO NOT remove radiator unless the radiator is in the upright position!
MOUNT THE RADIATO RS 49
