2. Carefully place front face down on protective surface.
3. Connect faceplate to back cover. Using a Phillips screwdriver, carefully install four M4x14mm
screws (B) through corresponding holes on faceplate and into the mounting holes on the radiator.
(See Figure 1-20 )
(B) x 4
Quick Release
Faceplate
3

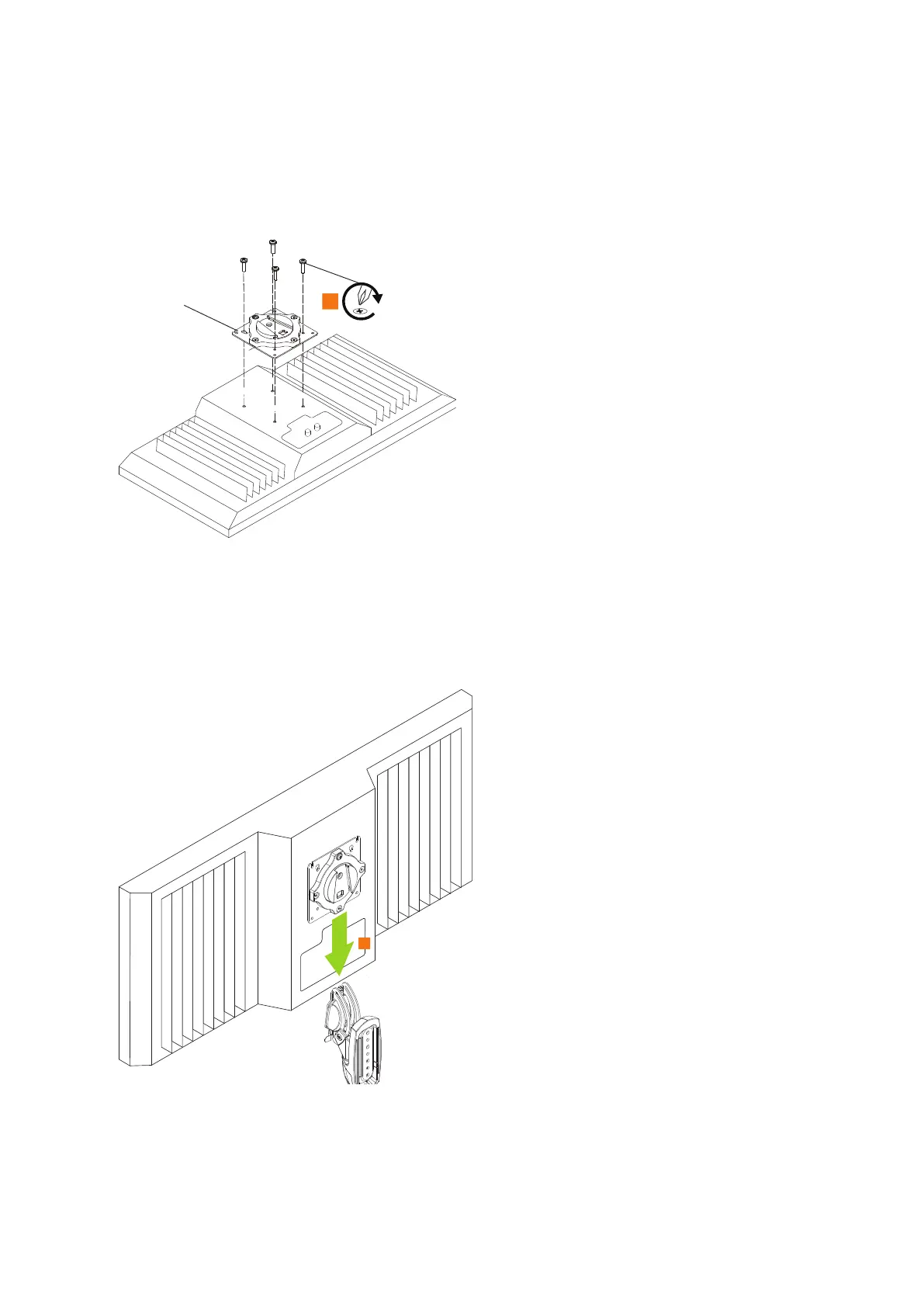

Figure 1-20 Attach faceplate to radiator
4. Position radiator with faceplate attached above mount. (See Figure 1-21 )
5. Slide faceplate onto mounting head until quick release tab clicks into place. (See figure below)
Figure 1-21 Position radiator onto Lingua RAD mount
MOUNT THE RADIATO RS 48
