MOUNT THE RADIATORS
The design of the radiators does not restrict you to a to a specific mount. The radiator supports all VESA
100×100 mounts. Below you can find a detailed description of how to install Televic Conference's radiator
mount. For other VESA mounts you can use a similar installation process.
Position the radiator as defined by the calculator tool. After mounting you will still need to test the
coverage of the transmitter using the Lingua IR receivers.
Lingua RAD Mount Specifications
Televic Conference also provides a radiator mount. This is a basic VESA mount which you can tilt and turn
sideways.
Tilt Range
75° down
10° up
Interference Rotation
Range ± 90°
Mounting Pattern
Compatibility
100 × 100
75 × 75
Wall Mounting Side Radiator Mounting SideSide View

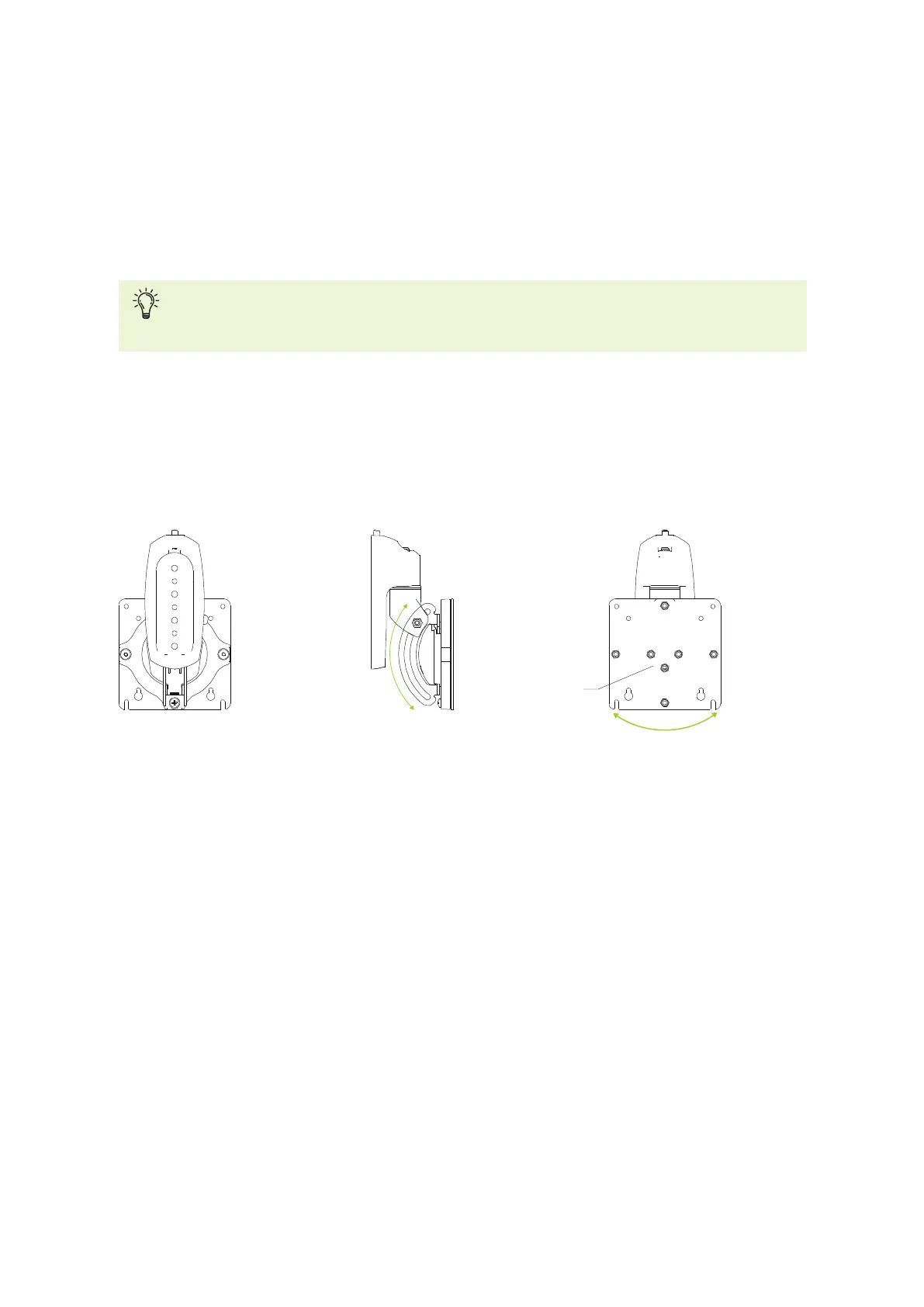

Figure 1-16 The front, side, and back view of the Lingua RAD view together with tilting and pivoting range of
the mount
MOUNT THE RADIATO RS 45
