Redundancy options for EU5500 , SPL5525 and
Confidea-L units

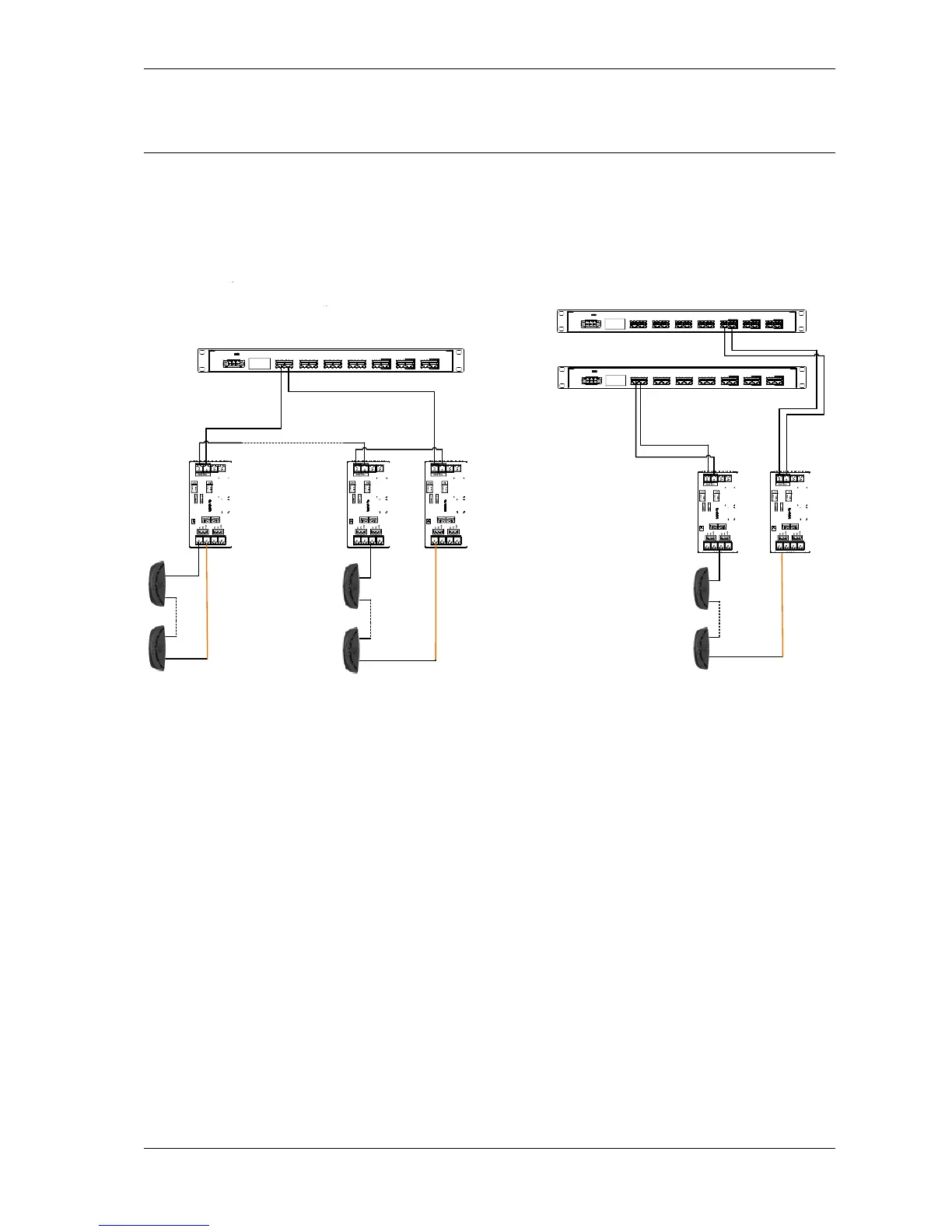

Possible Redundancy connections
for EU – SPL5525 – Confidea-L
Redundancy for cables and
SPL5525
48V
out in
Loop4
out in
Loop3
out in
Loop2
out in
Loop1
OUT IN
CLOCK
OUT IN
INFO EXTERNAL
INOUT
SPL5525
SPL5525
Confidea-L in loop
(SPL5525 SW >= 1.05) (*)
(*) Loop ( dual branche) functionality
only effective if no other
delegate unit types then Confidea-L
are used in the loop
SPL5525
Confidea-L in loop
(SPL5525 SW >= 1.05) (*)
Redundancy
for cables
48V
out in
Loop4
out in
Loop3
out in
Loop2
out in
Loop1
OUT IN
CLOCK
OUT IN
INFO EXTERNAL
INOUT
SPL5525
SPL5525
Confidea-L in loop
(SPL5525 SW >= 1.05) (*)
Redundancy for cables ,
SPL5525 and EU5500-L
48V
out in
Loop4
out in
Loop3
out in
Loop2
out in
Loop1
OUT IN
CLOCK
OUT IN
INFO EXTERNAL
INOUT
71.61.5052 EU5500 – L (4 loops)
